SKU: E5DC-QX2ASM-802

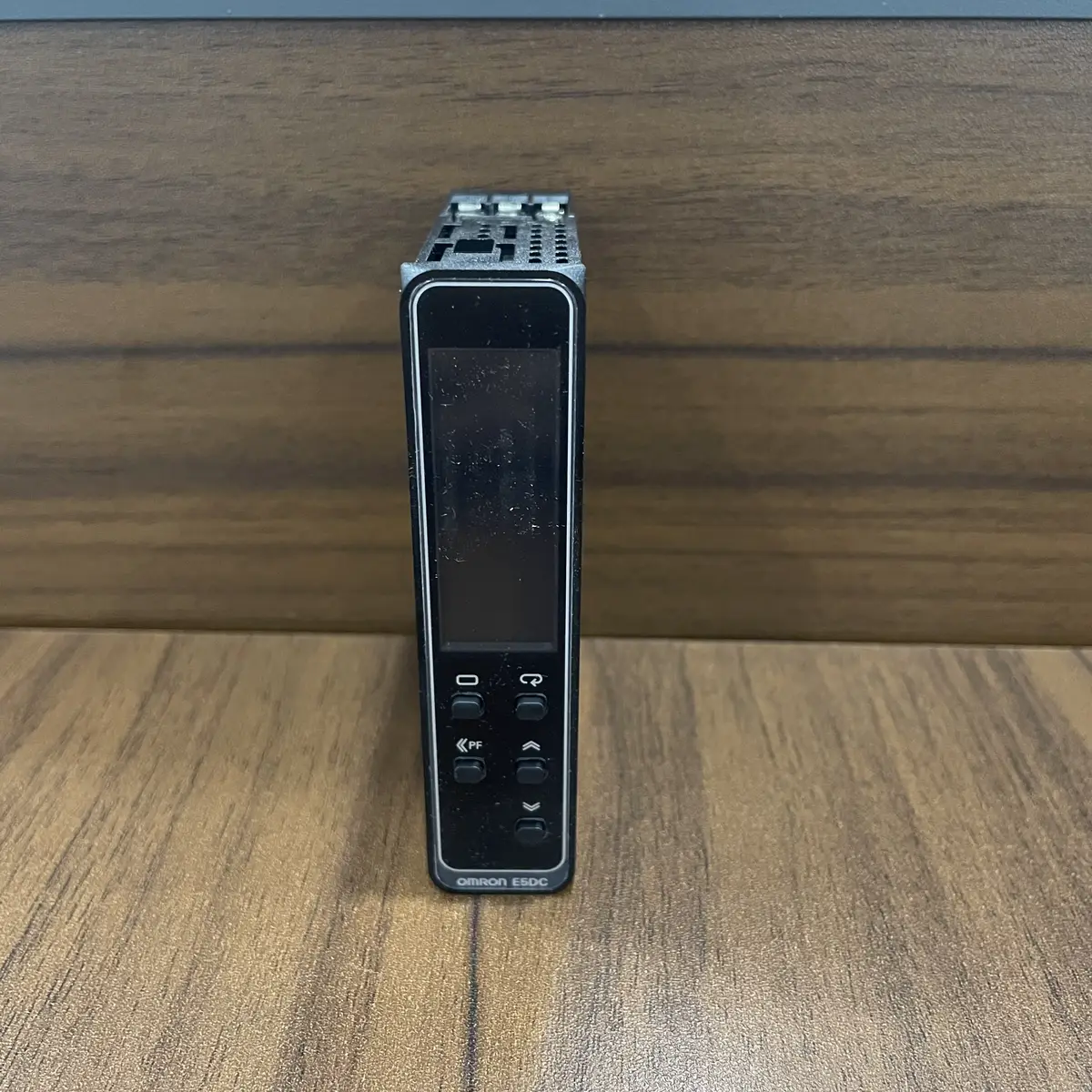

Omron E5DC-QX2ASM-802 Digital Temperature Controller 48x48mm DC24V Supply
Omron E5DC-QX2ASM-802 is a 48x48mm digital temperature controller with DC24V supply, universal input for mobile and battery-backed temperature control applications.
USD 52.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Size: 48 x 48mm
- Input Types: Universal: TC, Pt100, Analog
- Supply Voltage: DC24V
- Control Output: Dual output (heating/cooling)
- Control Method: PID with auto-tuning
- Display: White PV, Orange SV
Scalable PLC Control Foundation for OEM and Retrofit Projects
The E5DC-QX2ASM-802 fits industrial control projects that require dependable logic execution, maintainable programming workflows, and architecture growth over the equipment lifecycle. It supports standardized automation design across machine families while preserving serviceability in production environments.
Deterministic Logic and Sequence Control
This controller class supports predictable scan-driven execution for interlocks, sequencing, alarms, and coordinated device handling. Deterministic behavior is essential for consistent machine output and repeatable cycle performance.
Platform Reuse Across Equipment Variants
Standardizing on a proven PLC/controller family enables software reuse, reduced engineering lead time, and easier support across multiple machine models or production lines.
Lifecycle Service and Maintainability
A maintainable control architecture with documented I/O mapping, diagnostics, and modular expansion strategy reduces troubleshooting time and improves long-term ownership value.
Typical Applications
- Executes deterministic control logic
- Coordinates multi-device machine behavior
- Supports reusable software structures
- Improves fault diagnostics and recovery time
- Enables modular feature growth over time
- Standardizes control strategy across equipment
Buying Checklist
- Strong fit for scalable machine control
- Maintains deterministic automation behavior
- Supports long-term maintainability
- Good platform standardization candidate
- Reliable industrial controller ecosystem
Technical Specifications
| Model | E5DC-QX2ASM-802 |
|---|---|
| Series | E5DC |
| Size | 48 x 48mm |
| Input Types | Universal: TC, Pt100, Analog |
| Supply Voltage | DC24V |
| Control Output | Dual output (heating/cooling) |
| Control Method | PID with auto-tuning |
| Display | White PV, Orange SV |
| Protection | IP66 front panel |
Frequently Asked Questions
When do I need DC24V supply instead of AC?
DC24V is needed for: mobile equipment (vehicles, portable systems), battery-backed systems (critical processes), solar-powered installations, or when your panel already has 24VDC distribution.
What's the power consumption?
Approximately 3W at 24VDC (125mA). Size your 24VDC power supply accordingly, accounting for all DC loads in the panel.
Can I use this in outdoor applications?
Yes, with proper enclosure. The IP66 front panel protects against water and dust. Ensure the enclosure provides adequate ventilation and protects the rear terminals from moisture.
Is performance different from AC-powered models?
No, temperature control performance is identical. Only difference is supply voltage. DC models use switching power supply internally to generate required voltages.
