SKU: EE-SPX613

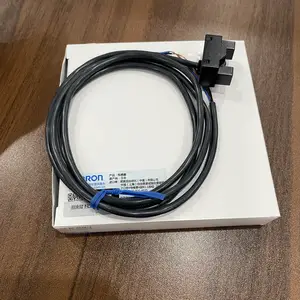

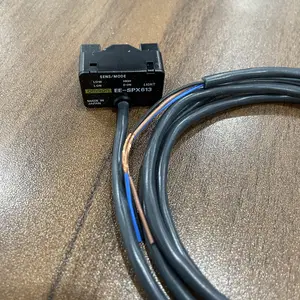

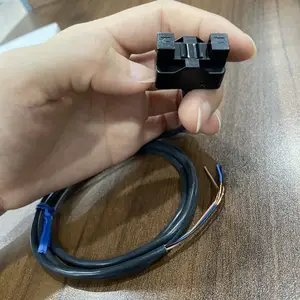

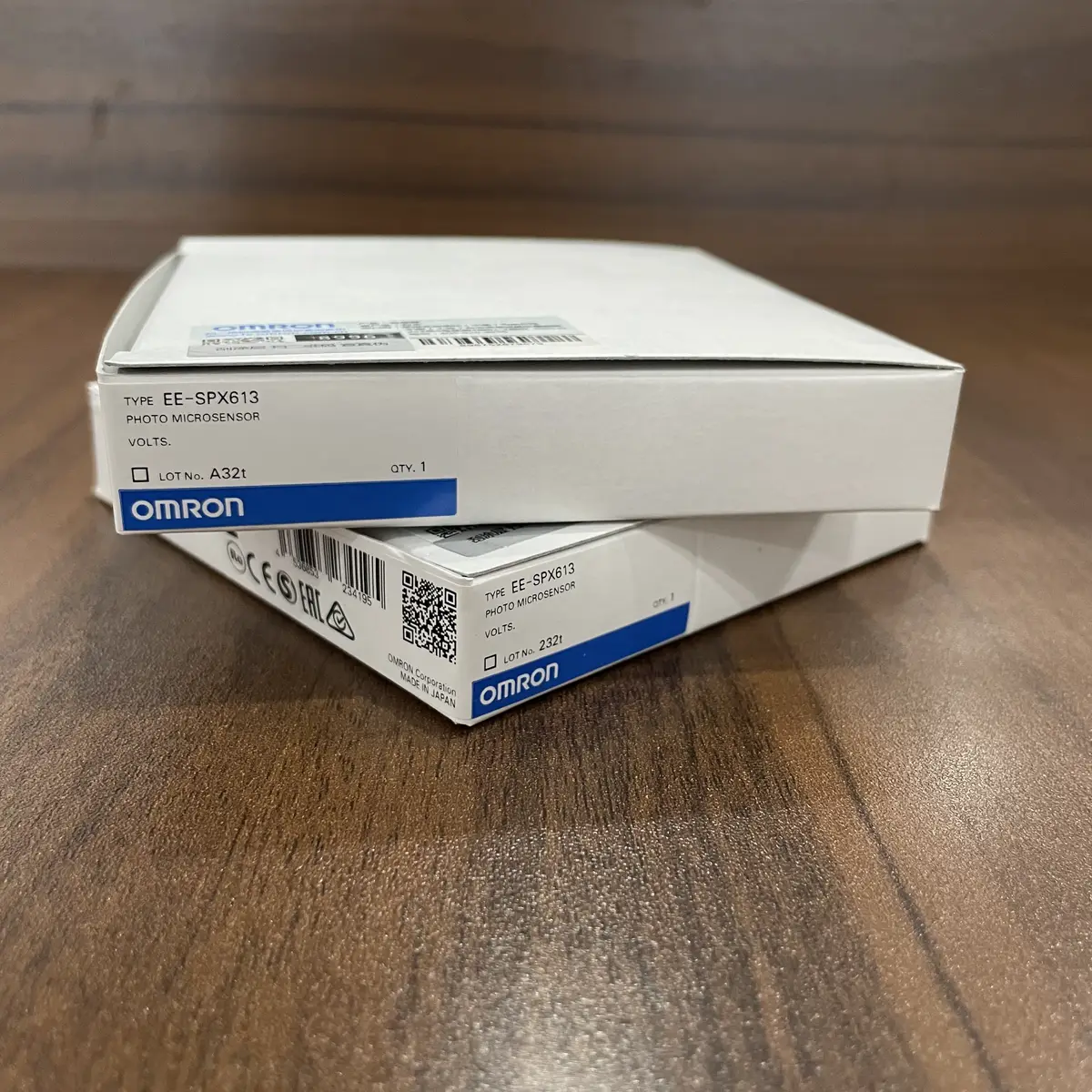

Omron EE-SPX613 Micro Photoelectric Sensor Amplifier Built-in
Omron EE-SPX613 is a micro photoelectric sensor with built-in amplifier for compact space detection.
USD 20.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Photoelectric liquid detection for transparent tube installations
- Non-contact sensing approach for cleaner fluid monitoring
- Suitable for small tube diameter level detection applications
- NPN output for integration with standard control inputs
- Compact sensor body for constrained mounting areas
- Useful in dosing, analytical, and utility fluid systems
Optical Tube-Level Detection for Compact Fluid Monitoring Systems
The EE-SPX613 is intended for liquid level sensing in transparent tube-based systems where compact size and non-contact detection are important. It helps monitor fluid presence or level thresholds in dosing, analytical, and process-support equipment. This sensor supports reliable switching without direct fluid contact, improving cleanliness and reducing mechanical wear in small fluid control assemblies.
Typical Applications
- Detecting liquid presence in transparent process tubing
- Monitoring dosing line fluid availability
- Providing low/high level threshold feedback in compact systems
- Interlocking pump operation based on tube liquid status
- Upgrading mechanical float methods in small fluid modules
- Implementing cleaner sensing in analytical equipment
Buying Checklist
- Non-contact sensing helps reduce contamination risk
- Compact design suits small fluid handling assemblies
- Reliable tube-level detection improves process consistency
- Easy integration with PLC-based control logic
- Practical choice for dosing and utility fluid monitoring
Technical Specifications
| Model | EE-SPX613 |
|---|---|
| Series | EE-SPX |
| Type | Micro Photoelectric Sensor |
| Sensing Method | Through-beam |
| Sensing Distance | Up to 100mm |
| Output Type | NPN |
| Supply Voltage | DC5-24V |
| Response Time | 0.5ms |
| Size | Micro (compact) |
| Cable Length | Pre-wired |
| Operating Temperature | -25 to +55°C |
Frequently Asked Questions
What's the advantage of built-in amplifier?
No external amplifier needed. Compact, simple wiring. Ready to use.
What's the sensing distance?
Up to 100mm for through-beam type.
What applications use micro sensors?
Small part detection, confined spaces, PCB assembly, small mechanisms.
Can I adjust sensitivity?
Yes, sensitivity potentiometer on sensor.
