SKU: EE-SX670

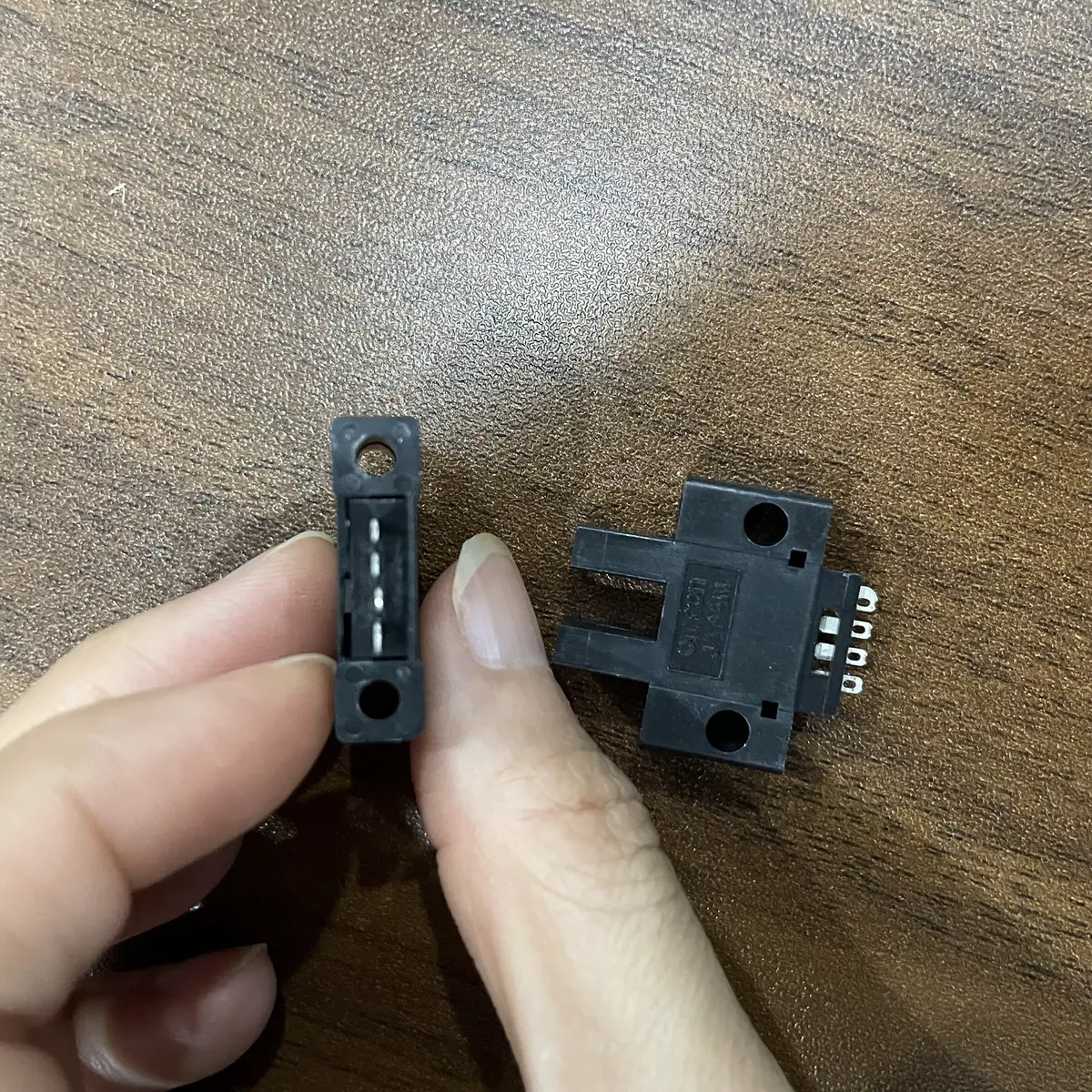

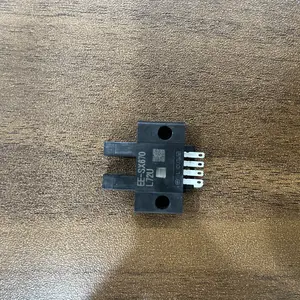

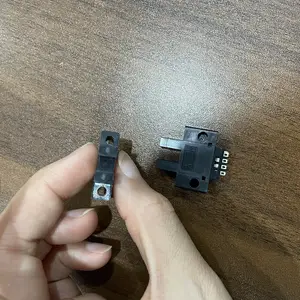

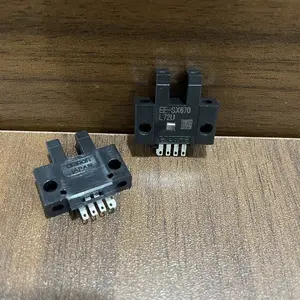

Omron EE-SX670 Micro Photoelectric Sensor Slot 5mm NPN Direct Switching 100mA
Omron EE-SX670 is a slot-type micro photoelectric sensor with 5mm slot width, NPN output, 100mA direct switching capacity for small part detection.
USD 5.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- U-shaped slot sensing for fixed geometry detection consistency
- 5mm slot gap suitable for small-part and edge detection
- NPN output for compatible PLC and controller inputs
- Compact package for tight machine integration points
- Reliable high-cycle switching in repetitive automation tasks
- Useful for feeders, print systems, and compact assemblies
Compact Slot Detection for Repeatable High-Cycle Sensing
The EE-SX670 provides fixed-gap through-beam sensing in a compact U-shaped form, enabling reliable triggering when parts or tabs pass through the slot. It is commonly used in feeder systems, print mechanisms, and compact assembly devices that require stable detection timing. Its design supports consistent operation in high-cycle environments where signal repeatability is essential.
Typical Applications
- Detecting label/tab passage in print-and-apply systems
- Counting components in feeder tracks
- Confirming part position in compact indexing fixtures
- Triggering sequence events in small packaging modules
- Replacing worn slot sensors in maintenance cycles
- Standardizing slot detection points in OEM designs
Buying Checklist
- Fixed slot geometry improves detection repeatability
- Compact form factor fits constrained mechanism spaces
- NPN output supports common industrial input schemes
- Reliable for repetitive high-speed machine cycles
- Practical solution for precision compact detection tasks
Technical Specifications
| Model | EE-SX670 |
|---|---|
| Series | EE-SX67 |
| Type | Slot-Type (Through-Beam) Micro Photoelectric Sensor |
| Slot Width | 5mm |
| Output Type | NPN Open Collector |
| Supply Voltage | DC5-24V ±10% |
| Response Time | 0.17ms (1kHz response) |
| Load Current | 100mA max (direct switching) |
| Light Source | Infrared LED |
| Cable Length | Pre-wired cable |
| Protection | IP50 |
| Operating Temperature | -25 to +55°C |
| Indicator | Operation LED |
| Control | Light-ON/Dark-ON selectable |
Frequently Asked Questions
What is the slot width?
5mm slot width for small part edge detection, tab detection, and position sensing in compact mechanisms.
What is the response time?
0.17ms (1kHz response frequency) for high-speed detection applications.
Can this directly switch loads?
Yes, 100mA direct switching capacity allows direct connection to small relays and indicators without additional amplification.
Can I select Light-ON/Dark-ON?
Yes, built-in selector for Light-ON (遮光時ON) or Dark-ON (入光時ON) operation.
