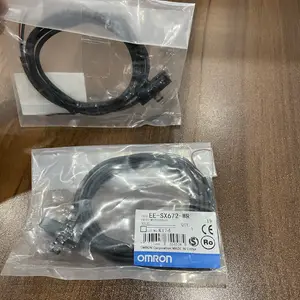

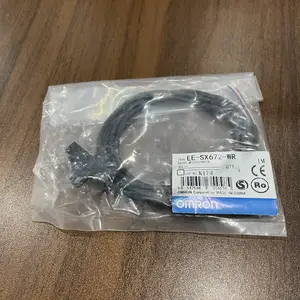

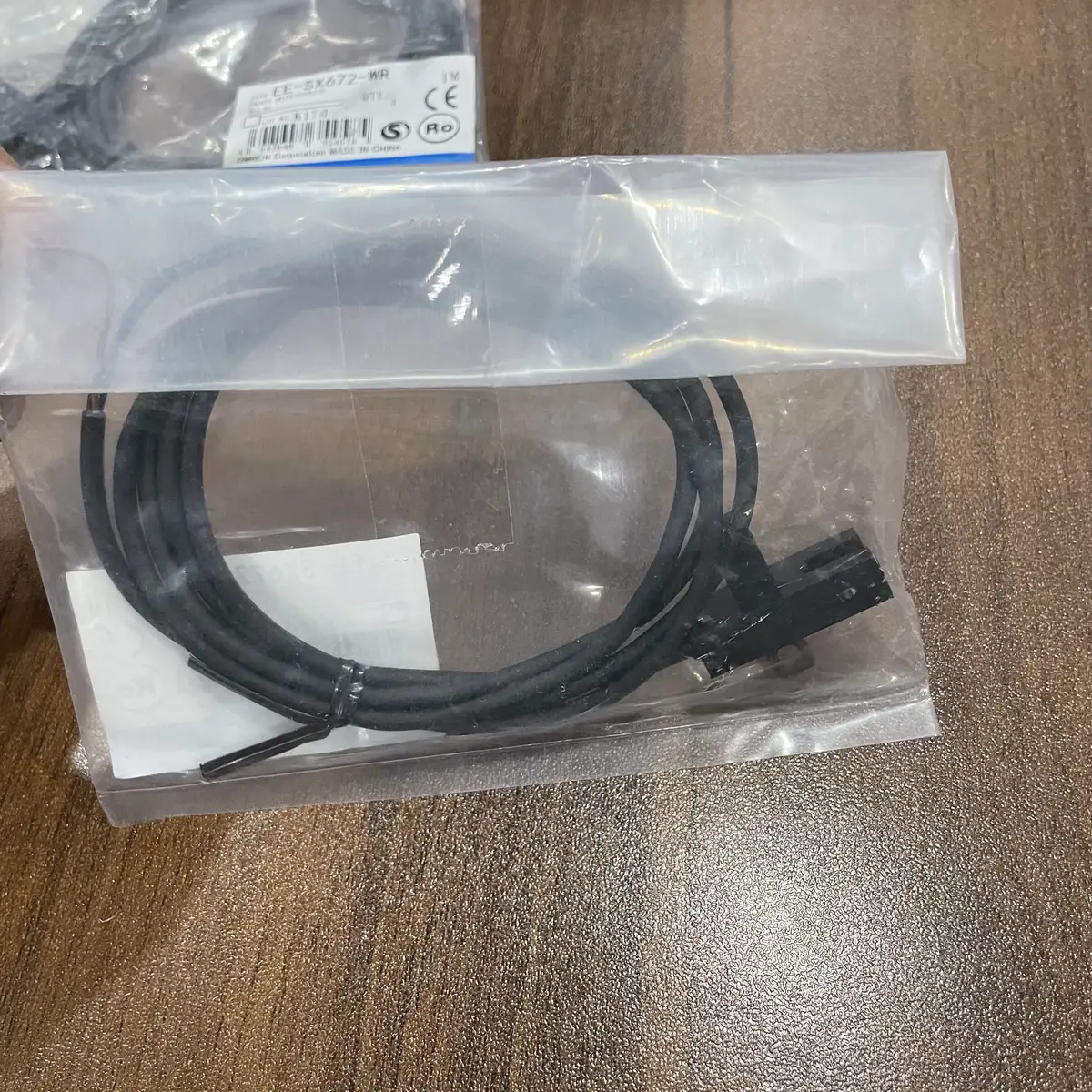

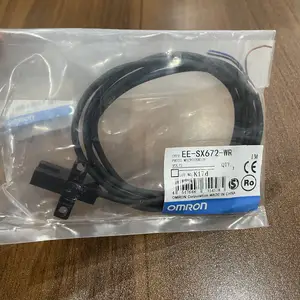

Omron EE-SX672-WR 5 mm Slot Sensor, NPN, 1 m Cable
SKU: EE-SX672-WRUSD 7.00
Omron EE-SX672-WR T-shaped slot photomicrosensor with a 5 mm slot, NPN output, 5–24 VDC supply and 1 m pre-wired robotic cable.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SX672-WR is a T-shaped photomicrosensor that detects an opaque target passing through its 5 mm slot. The fixed optical path removes the separate emitter-and-receiver alignment required by a two-part sensing arrangement.
This SKU uses an NPN output and a 5–24 VDC supply. The -WR version has a 1 m pre-wired robotic cable; the EE-SX672 without -WR is the connector-type version and requires the appropriate mating cable.
Confirm NPN/PNP wiring, Light-ON/Dark-ON configuration and target dimensions against the EE-SX67 datasheet before installation. The cable suffix describes the connection, not the output polarity.
Key Features
- T-shaped transmissive slot sensor with a 5 mm sensing gap
- NPN open-collector output and 5–24 VDC supply
- 1 m pre-wired robotic cable on the -WR variant
- Compact fixed-alignment optical design for repeatable object detection
- SKU: EE-SX672-WR
- Series: EE-SX67 photomicrosensors
- Voltage: 24 VDC
Best-Fit Applications
- Detecting tabs, labels or small opaque parts as they pass through a fixed 5 mm sensing slot.
- Counting or position confirmation in compact assembly and feeding equipment.
- Flexible-cable installations where the sensor moves repeatedly and a robotic cable is required.
Buying Checklist
- Choose EE-SX672-WR when the installation needs the factory-attached 1 m robotic cable.
- Choose connector-type EE-SX672 when a separate mating cable is preferred; do not assume its connector cable is included.
- Verify that the PLC input circuit is compatible with this sensor's NPN output before ordering.
Technical Specifications
| Manufacturer | Omron Corporation |
|---|---|
| Series | EE-SX67 photomicrosensors |
| Model / SKU | EE-SX672-WR |
| Sensing method | Through-beam slot type, T-shaped housing |
| Slot width | 5 mm |
| Output | NPN open collector |
| Supply voltage | 5–24 VDC |
| Connection | Pre-wired robotic cable, 1 m |
| Response time | 0.17 ms |
| Load current | 100 mA maximum |
FAQ for EE-SX672-WR
What is the difference between EE-SX672-WR and EE-SX672?
EE-SX672-WR has a factory-attached 1 m pre-wired robotic cable. EE-SX672 without -WR is the connector-type model and uses a separate mating cable. The -WR suffix does not indicate PNP output.
Is EE-SX672-WR an NPN or PNP sensor?
It is an NPN open-collector output sensor. Check the PLC input wiring rather than assuming it can be interchanged with a PNP variant.
What cable is fitted to EE-SX672-WR?
A 1 m pre-wired robotic cable. It is not the connector-type version, so no separate EE-series mating connector cable is needed for the standard factory lead.
What object size can the EE-SX672-WR detect?
The legacy specification lists a minimum opaque object of 2 × 0.8 mm. Confirm the target geometry and alignment against the current EE-SX67 datasheet for the application.
