SKU: G3PA-220B-VD-X DC5-24V

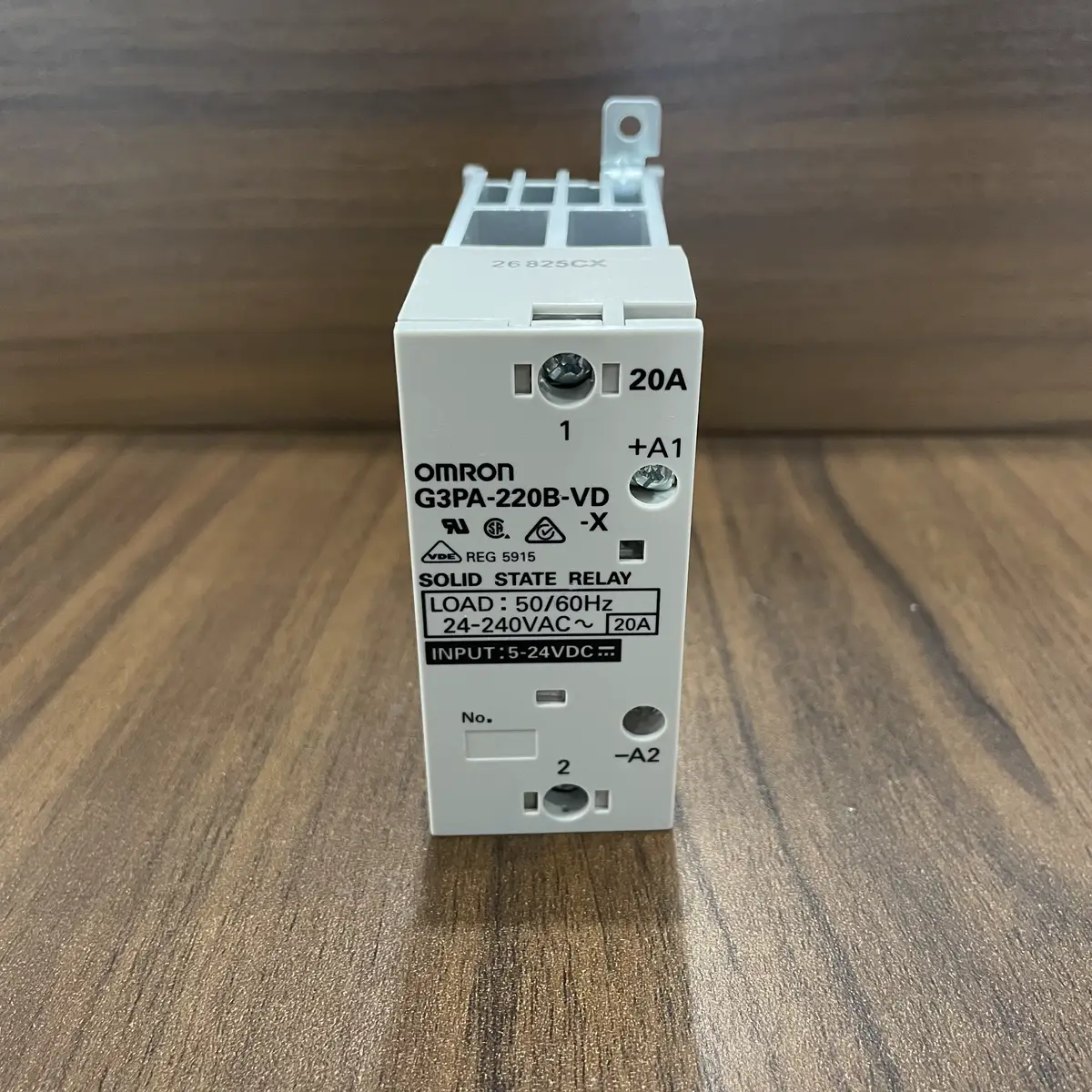

Omron G3PA-220B-VD-X DC5-24V Solid State Relay 20A
Omron G3PA-220B-VD-X DC5-24V is a 20A solid state relay with DC5-24V control for reliable AC load switching.
USD 26.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 20A class solid state switching capacity
- Zero-crossing operation for smoother load switching
- DC5-24V control input compatibility
- DIN rail installation for maintainable panel layouts
- Suitable for high-cycle industrial process control
- Reduces mechanical wear compared with electromechanical relays
High-Capacity Zero-Cross SSR for Reliable Process Load Switching
The G3PA-220B-VD-X DC5-24V supports contactless switching of AC loads where high cycle rates and long service life are required. Zero-crossing control helps reduce switching stress and noise in many applications. This relay is suitable for heaters, process outputs, and repetitive load control in industrial automation panels.
Typical Applications
- Switching heater circuits in process modules
- Controlling repetitive AC loads in production panels
- Replacing mechanical relays in high-duty channels
- Building durable SSR sections in control cabinets
- Standardizing zero-crossing switching in OEM systems
- Improving reliability in frequent switching applications
Buying Checklist
- 20A capacity supports demanding load channels
- Zero-crossing improves switching quality and longevity
- DIN rail format simplifies installation and maintenance
- Strong fit for repetitive industrial process duties
- Practical long-term SSR solution for control panels
Technical Specifications
| Model | G3PA-220B-VD-X DC5-24V |
|---|---|
| Series | G3PA |
| Type | Solid State Relay |
| Load Current | 20A |
| Load Voltage | AC200-240V |
| Control Input | DC5-24V |
| Switching Method | Zero-cross |
| Mounting | Panel mount |
| Heat Sink | Required |
| Operating Temperature | -30 to +80°C |
| LED Indicator | Input ON indicator |
Frequently Asked Questions
What's the difference between G3PA and G3NA?
G3PA: panel mount design, integrated heat sink mounting. G3NA: DIN rail or panel mount. Same electrical performance. Choose based on mounting preference.
Do I need heat sink?
Yes, for 20A load, heat sink is essential. Power dissipation: 1.6V × 20A = 32W. Size heat sink for your ambient temperature and load duty cycle.
Can I use this for transformer load?
Yes, but transformer inrush current can be 10-20× nominal. Ensure SSR can handle inrush. Consider soft-start circuit or SSR with inrush limiting.
What's the control input current?
7-15mA at DC5-24V. Compatible with PLC transistor outputs, microcontroller GPIO (with current limiting resistor).
