SKU: G6B-47BND

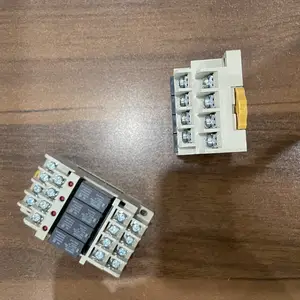

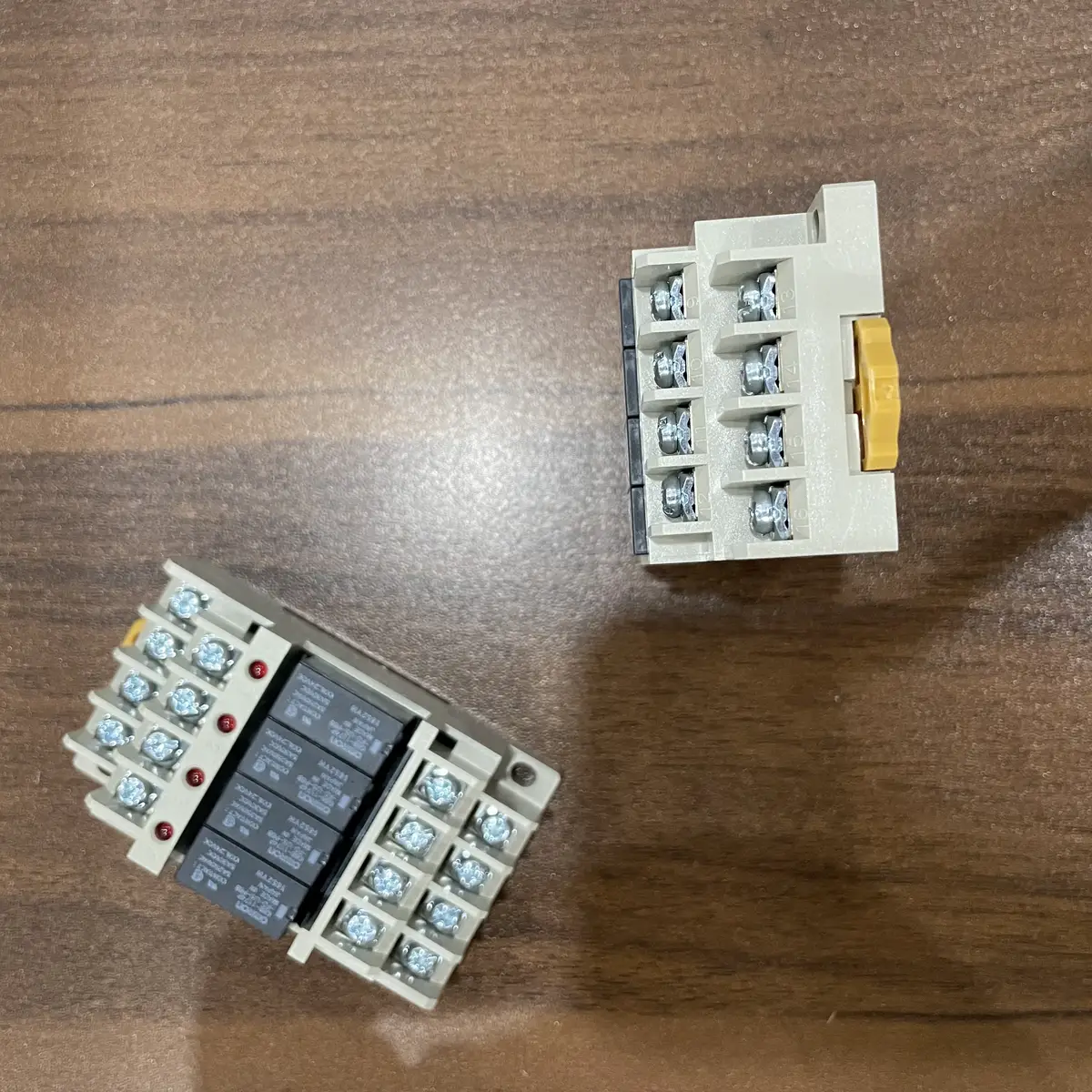

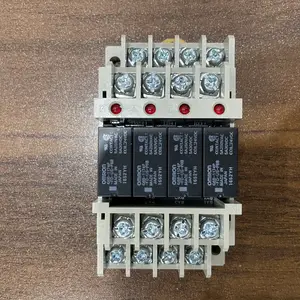

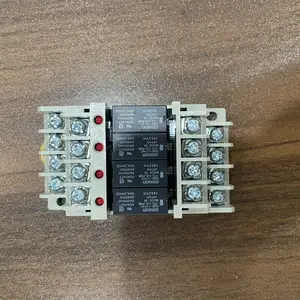

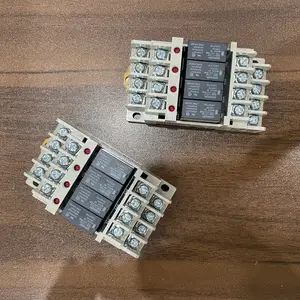

Omron G6B-47BND PCB Relay Module 4-Pole 4NO DC24V Coil
Omron G6B-47BND is a 4-pole PCB relay module with 4NO contacts, DC24V coil, screw terminal wiring for industrial control panel applications.
USD 18.50 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 4-point relay interface design for compact output expansion
- DC24V operation aligned with standard automation control voltage
- Screw terminal wiring for practical installation and service
- Suitable for PLC output isolation and load interfacing
- Compact PCB-style module for space-efficient panel layouts
- Reliable relay-based switching for industrial control duties
Compact Multi-Relay Output Interface for PLC and Control Panels
The G6B-47BND provides a practical relay interface layer between PLC outputs and field-side control circuits. Its multi-point format helps reduce wiring complexity while improving panel organization in compact enclosures. This unit is commonly used where electrical isolation, load interfacing, and easy maintenance are required, including OEM machinery and retrofit control cabinets.
Typical Applications
- Interfacing PLC transistor outputs to relay-switched loads
- Isolating control circuits in compact machine panels
- Driving auxiliary signaling and low-power actuators
- Building modular relay banks for OEM equipment
- Retrofitting older panels with standardized relay interfaces
- Improving serviceability through grouped relay output architecture
Buying Checklist
- Consolidates multiple relay channels in a compact footprint
- Simplifies PLC-to-load interfacing and isolation strategy
- DC24V standard supports broad compatibility
- Screw terminals aid installation and field maintenance
- Practical component for maintainable control panel design
Technical Specifications
| Model | G6B-47BND |
|---|---|
| Series | G6B |
| Type | PCB Relay Module with Terminal Block |
| Contact Configuration | 4NO (4 Form A) |
| Coil Voltage | DC24V |
| Coil Power | 360mW |
| Contact Rating | 5A at 250VAC, 5A at 30VDC |
| Max Switching Voltage | 250VAC, 125VDC |
| Operating Time | 10ms max |
| Release Time | 5ms max |
| Mechanical Life | 20 million operations |
| Electrical Life | 100,000 operations (at rated load) |
| Terminal Type | Screw terminals (M3) |
| Mounting | Panel or DIN rail mount |
| LED Indicator | Yes (coil energization) |
| Operating Temperature | -40 to +70°C |
| Dimensions | 78 x 70 x 55mm |
| Mass | Approx. 180g |
| Certifications | CE, UL, CSA, VDE |
Frequently Asked Questions
What's the difference between G6B-47BND and G6B-4BND?
G6B-47BND has 4NO (4 normally open) contacts. G6B-4BND has 4PDT (4 Form C, 4NO+4NC) contacts. Choose 47BND for simple switching applications, 4BND when you need both NO and NC contacts for each pole.
What wire size can I connect to the terminals?
Screw terminals accept 22-14 AWG (0.5-2.5mm²) solid or stranded wire. Use ferrules for stranded wire to prevent fraying. Torque: 0.5-0.6 N·m.
Can I use this relay for motor control?
For small motors under 5A, yes. For larger motors, use relay contacts to control a contactor. Motor loads are highly inductive - consider snubber circuit or varistor for contact protection.
What's the advantage of PCB relay module vs discrete relay?
PCB module includes: terminal block (no separate socket needed), LED indicator, mounting base, and pre-wired connections. Faster installation, cleaner panel layout, easier troubleshooting.
How do I wire the coil and contacts?
Coil terminals: A1 (+) and A2 (-). Contact terminals: numbered per pole (e.g., 11-14 for pole 1). Refer to wiring diagram on relay side. Always use flyback diode across DC coil to suppress voltage spikes.
