SKU: GRT1-OD8-1

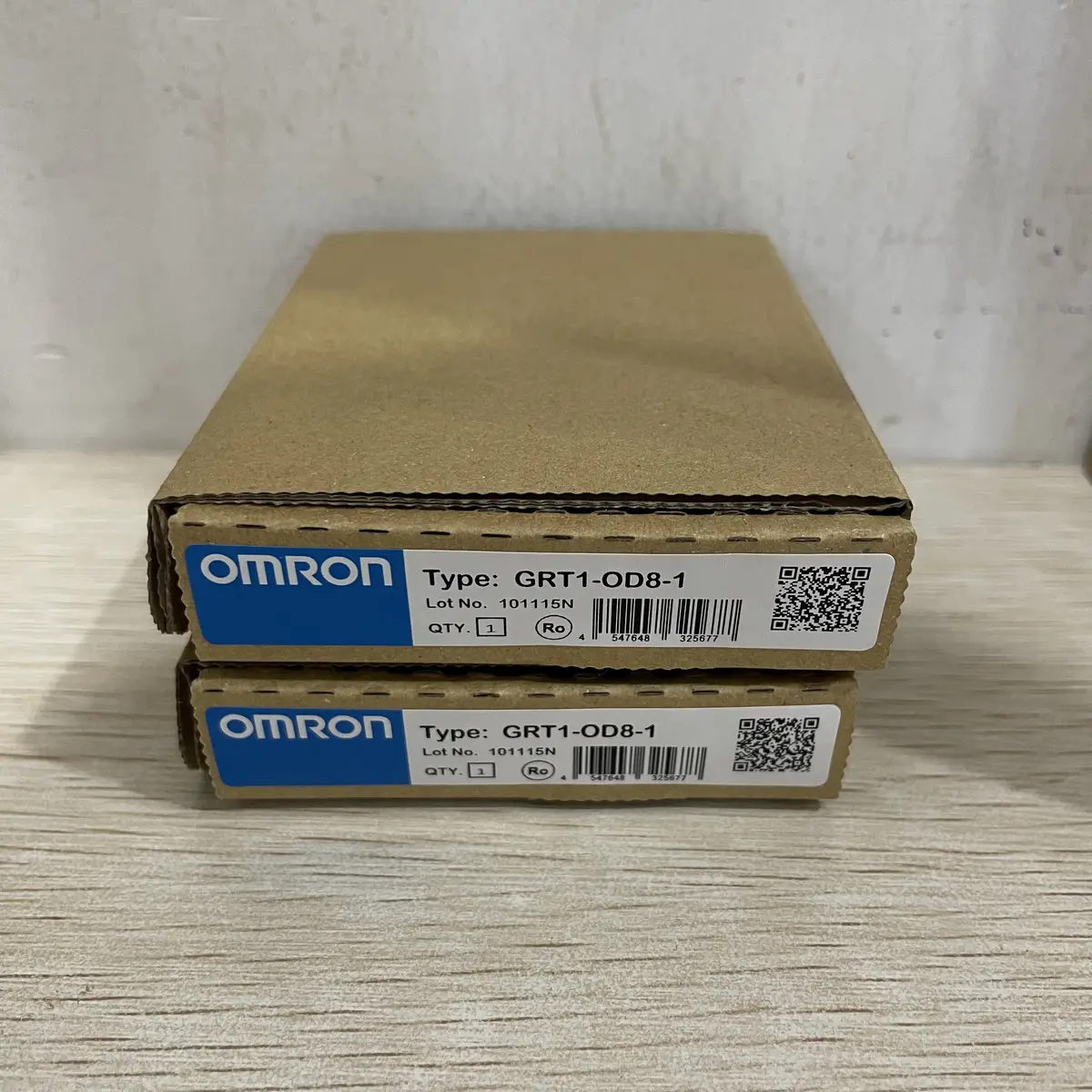

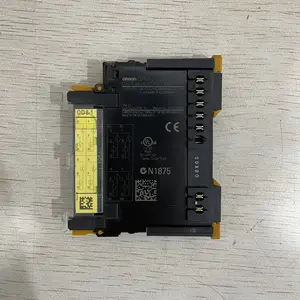

Omron GRT1-OD8-1 SmartSlice Temperature Controller 8-channel Output Module
SmartSlice I/O temperature controller with 8 output channels for distributed temperature control applications
USD 108.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 8 independent output channels
- Slice-style distributed I/O design
- Hot-swappable module replacement
- Voltage/current output options
- DIN rail mounting for easy installation
- Integration with Omron PLC via SmartSlice coupler
- Independent channel configuration
Omron GRT1-OD8-1 SmartSlice Temperature Controller
The Omron GRT1-OD8-1 is part of the SmartSlice Series of distributed I/O modules, designed to provide flexible and cost-effective temperature control solutions for industrial automation systems. This output module features 8 channels of control output, allowing connection to multiple heating elements or control valves. The GRT1-OD8-1 integrates seamlessly with Omron PLC systems through the dedicated SmartSlice communications unit, enabling easy configuration and monitoring via the PLC programming software. The module supports various output types including voltage output for SSR driving and current output for proportional valves. Each channel can be independently configured for different control loops, making the GRT1-OD8-1 ideal for applications requiring multiple temperature zones such as plastic injection molding machines, packaging equipment, and small industrial furnaces. The compact slice-style design allows for space-efficient installation on DIN rail, and the hot-swappable feature enables module replacement without shutting down the entire system.
Typical Applications
- Plastic injection molding temperature control
- Packaging equipment heating zones
- Small industrial furnace control
- Heat treatment process control
- Conveyor belt temperature management
- Environmental chamber control
- Food processing heating applications
- Medical equipment temperature regulation
Buying Checklist
- Cost-effective multi-zone temperature control
- Scalable solution for growing systems
- Easy expansion with additional SmartSlice modules
- Hot-swappable for minimal downtime
- Simple PLC integration reduces engineering time
- Compact design saves panel space
- Proven Omron reliability
Technical Specifications
| Number of Channels | 8 |
|---|---|
| Output Type | Voltage (SSR drive) / Current |
| Output Range | 0-10 VDC / 4-20 mA |
| Resolution | 12-bit |
| Communication | Via SmartSlice coupler unit |
| Power Supply | 24 VDC (from coupler) |
| Current Consumption | 100 mA or less |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 65 °C |
| Mounting | DIN rail (35mm) |
| Weight | Approx. 0.15 kg |
| Dimensions | 30 x 100 x 75 mm (W x H x D) |
Frequently Asked Questions
How is the GRT1-OD8-1 connected to the PLC?
The GRT1-OD8-1 connects to the PLC through a SmartSlice communications coupler unit, which handles all data exchange.
Can each channel be configured independently?
Yes, each of the 8 output channels can be independently configured for different control parameters and output types.
What type of sensors does this module work with?
The GRT1-OD8-1 is an output module. For temperature input, you would use complementary SmartSlice temperature input modules.
Is the module hot-swappable?
Yes, SmartSlice modules support hot-swapping, allowing replacement without powering down the entire system.
