SKU: NA5-9W001S-V1

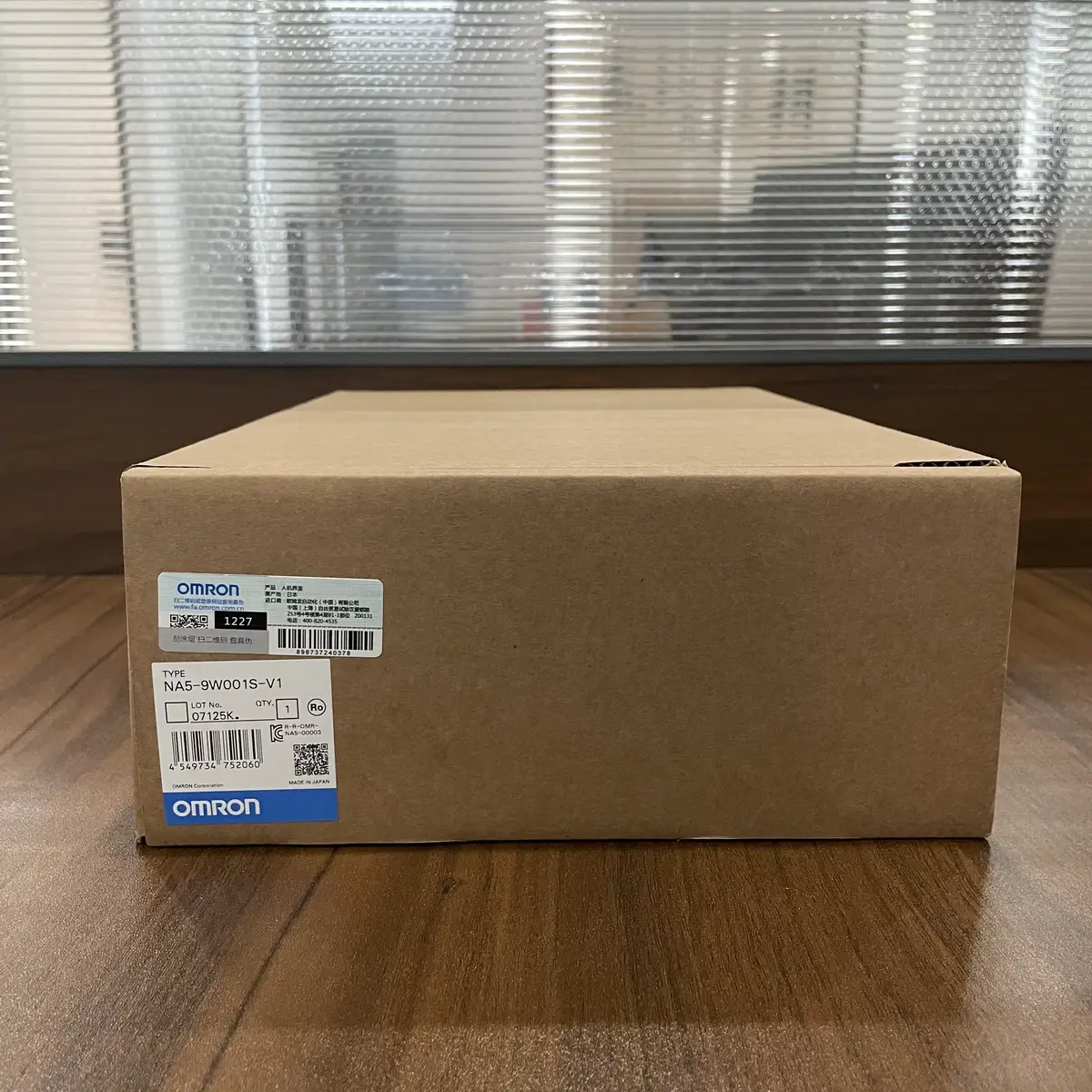

Omron NA5-9W001S-V1 NA Series Touch Screen HMI 9 inch WVGA
Omron NA5-9W001S-V1 is a 9 inch NA series HMI with WVGA display, medium-size advanced HMI for machine visualization.
USD 1405.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 9-inch WVGA color LCD display
- High resolution for detailed graphics
- Touch screen operation
- Ethernet connectivity built-in
- RS-232C communication port
- NB-Designer software for screen development
- Large built-in memory
- IP65 front panel protection
Omron NA5-9W001S-V1 Programmable Terminal
The Omron NA5-9W001S-V1 is a feature-rich programmable terminal from the NA series, featuring a 9-inch WVGA color LCD touch screen designed for advanced industrial automation and machine control applications. This HMI provides a comprehensive user interface for operator monitoring and control, with high-resolution display providing clear visualization of complex process data, multiple alarms, detailed graphics, and trending information. The WVGA display offers excellent resolution for detailed graphics and multiple windows. The NA5-9W001S-V1 supports Ethernet connectivity for seamless integration with Omron PLCs and other automation devices, enabling fast data exchange and remote monitoring capabilities. The touch screen allows intuitive operation with on-screen buttons, indicators, and data display elements that can be configured using Omron NB-Designer software. This HMI supports multiple communication protocols including Ethernet and RS-232C, providing flexibility for connecting to various automation equipment. The robust construction with IP65 front panel rating makes it suitable for industrial environments. The NA5-9W001S-V1 includes substantial built-in memory for storing complex screens, extensive logic, and data logging, supporting demanding applications.
Typical Applications
- Advanced PLC operator interface
- Complex machine control monitoring
- Detailed process visualization
- Multi-alarm systems
- Data entry terminals
- Medium-scale SCADA
- Large packaging machinery HMI
- Complex assembly line interfaces
Buying Checklist
- High resolution graphics
- Easy touch screen programming
- Multiple communication options
- Proven Omron HMI reliability
- Ethernet for networked applications
- IP65 rated for industrial use
Technical Specifications
| Model | NA5-9W001S-V1 |
|---|---|
| Series | NA5 |
| Screen Size | 9 inch |
| Display Type | TFT Color LCD |
| Resolution | 800 x 480 (WVGA) |
| Touch Panel | Resistive analog |
| Communication | Ethernet, USB |
| Supply Voltage | DC24V |
| Memory | 512MB |
| Operating Temperature | 0 to +55°C |
| Protection | IP65 (front panel) |
| Software | Sysmac Studio |
Frequently Asked Questions
What's the difference between 7 inch and 9 inch NA?
Screen size: 7 inch vs 9 inch. Same resolution (800x480). 9 inch provides larger display area for same resolution. Choose based on panel space and viewing distance.
Can this HMI connect to multiple PLCs?
Yes, NA series supports multiple PLC connections simultaneously. Different protocols, different manufacturers. Flexible multi-vendor connectivity.
What's the touch panel type?
Resistive analog touch panel. Works with finger, stylus, gloved hand. Durable, cost-effective touch technology.
Can I remotely access this HMI?
Yes, NA series supports remote desktop, web server. Access HMI from remote PC, tablet. Useful for remote monitoring and troubleshooting.
