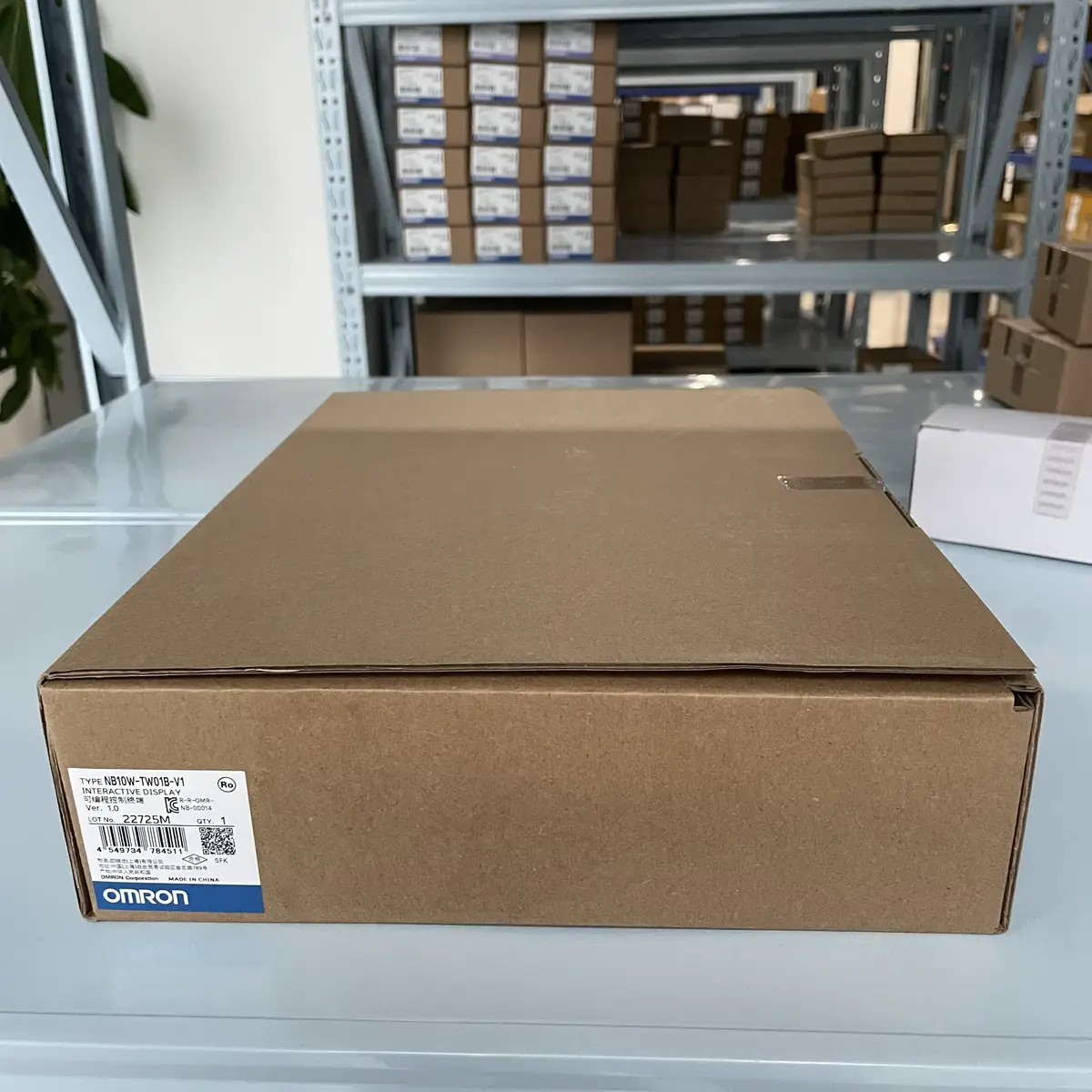

Omron NB10W-TW01B-V1 10.1-inch HMI, Ethernet
SKU: NB10W-TW01B-V1USD 305.00
Omron NB10W-TW01B-V1 10.1-inch NB-V1 HMI with 1024 × 600 WSVGA display, Ethernet, two USB ports, serial interfaces and IP65 front protection.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NB10W-TW01B-V1 is a 10.1-inch NB-V1 programmable terminal with a 1024 × 600 WSVGA TFT display and analog resistive touch panel. It is programmed with NB-Designer, not as an NA-series Sysmac Studio HMI.
The panel includes one Ethernet port, two USB ports, two RS-232C interfaces and an RS-422A/RS-485 interface. It operates from 24 VDC and provides IP65 front protection when correctly installed with the specified panel gasket.
The original NB10W-TW01B without -V1 used an 800 × 480 display; the -V1 model is 1024 × 600. When converting an existing project, check screen layout and controller communications instead of assuming an untouched transfer. For a smaller NB-V1 panel, see NB7W-TW01B-V1.
Key Features
- 10.1-inch TFT display, 1024 × 600 WSVGA resolution and 65,536 colours
- One Ethernet port, two USB ports, two RS-232C interfaces and RS-422A/RS-485
- 24 VDC supply, 14 W maximum consumption and IP65 front protection
- NB-Designer programming; 258 × 200 mm panel cutout
- SKU: NB10W-TW01B-V1
- Series: NB Series (-V1) programmable terminals
Best-Fit Applications
- Machine overview, alarms and recipe entry on packaging or assembly equipment.
- Operator terminal for a supported CP, CJ, NJ or NX controller using a driver listed in NB-Designer.
- Replacement planning for an original NB10W installation where the changed resolution and project conversion are reviewed.
Buying Checklist
- Choose NB10W-TW01B-V1 for a 10.1-inch, 1024 × 600 NB-V1 panel with Ethernet.
- Match the original NB10W-TW01B separately when maintaining its 800 × 480 installation; do not confuse the two resolutions.
- Confirm the NB-Designer driver, cable or Ethernet settings, panel cutout and project conversion before commissioning.
Technical Specifications
| Manufacturer | Omron Corporation |
|---|---|
| Series | NB Series (-V1) programmable terminals |
| Model / SKU | NB10W-TW01B-V1 |
| Display | 10.1-inch TFT, 1024 × 600 WSVGA, 65,536 colours |
| Touch panel | Analog resistive |
| Internal memory | 128 MB |
| Ethernet / USB | 1 × 10/100BASE-T Ethernet / 2 × USB |
| Serial interfaces | 2 × RS-232C; RS-422A/RS-485 |
| Supply / consumption | 24 VDC (20.4–27.6 VDC) / 14 W maximum |
| Front protection | IP65 when correctly panel mounted |
| Dimensions / cutout | 268.8 × 210.8 × 54 mm; cutout 258 × 200 mm |
| Programming software | NB-Designer |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NB10W-TW01B-V1
What is the difference between NB10W-TW01B-V1 and NB10W-TW01B?
The -V1 model has a 1024 × 600 WSVGA display; the original NB10W-TW01B has an 800 × 480 display. Omron's replacement path maps the original model to the matching -V1 version, but screen layouts should still be checked during conversion.
Which software programs NB10W-TW01B-V1?
NB-Designer. It is an NB-series terminal, not an NA-series Sysmac Studio terminal. Projects can be transferred using the interfaces and procedure supported by NB-Designer.
Can NB10W-TW01B-V1 communicate with an NJ or NX PLC?
Yes, when using a controller driver and connection method listed in the NB-Designer host-connection documentation. Confirm the exact CPU, protocol and network settings before commissioning.
Does the panel include a project file on USB?
No such inclusion is assumed. Supply the machine's existing project separately when migration or support is required; the product's USB ports do not imply that a project drive is bundled.
