SKU: NB7W-TW01B-V1

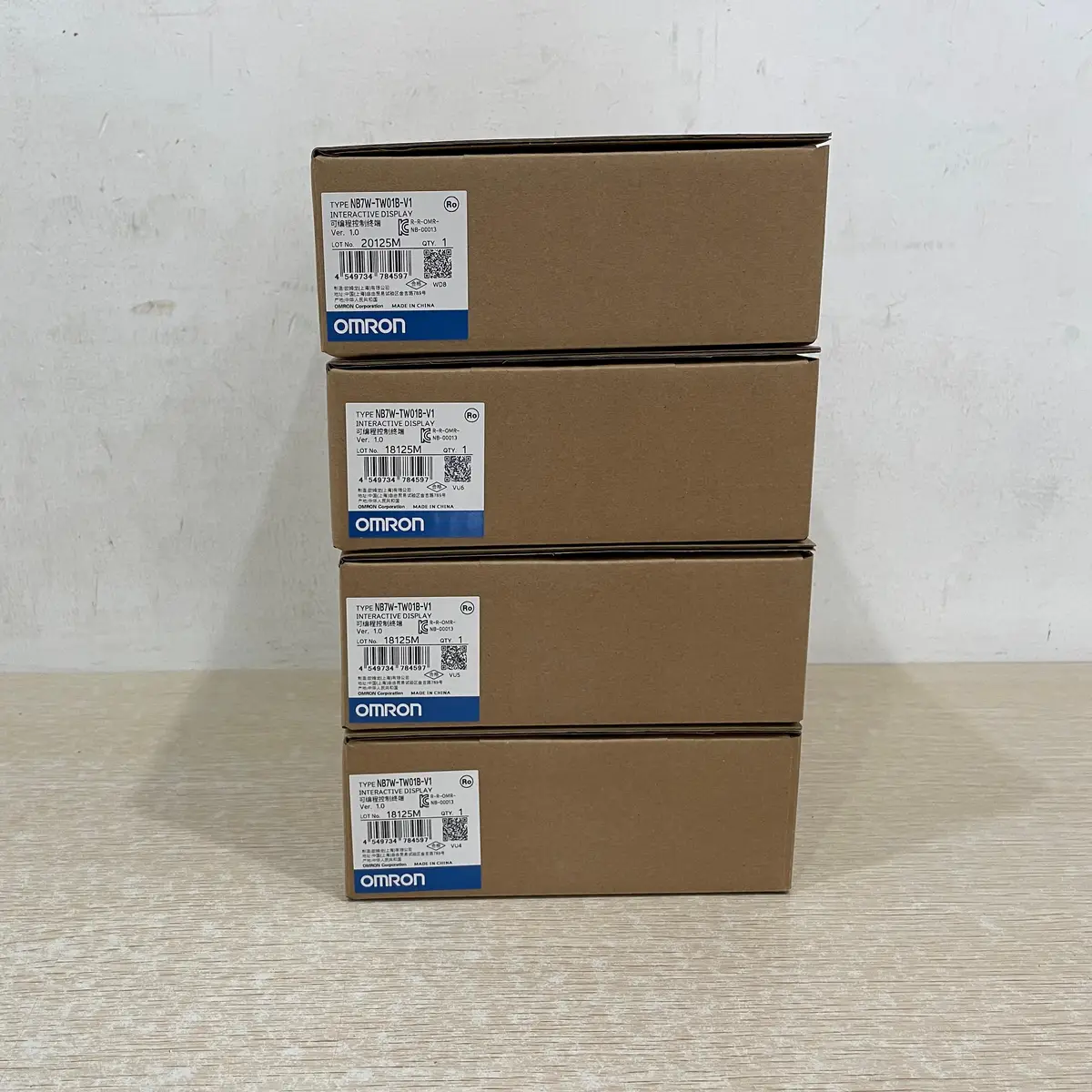

Omron NB7W-TW01B-V1 7 inch HMI Touchscreen Panel Ethernet
Omron NB7W-TW01B-V1 is a 7 inch WVGA HMI touchscreen with Ethernet connectivity, cost-effective solution for machine operator interface.
USD 185.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 7 inch widescreen display with 800x480 WVGA resolution
- LED backlight for long service life and low power consumption
- Ethernet port for PLC connectivity and data exchange
- USB host port for data logging and project transfer
- Compact, slim design minimizes panel space
- Simple screen editing with NB-Designer software
- IP66F front panel protection
- Multiple language support for international machines
Compact and Cost-Effective HMI Solution
The Omron NB7W-TW01B-V1 is a 7 inch widescreen HMI designed for applications requiring clear visualization in a compact, economical package. With 800x480 resolution and LED backlight, it provides excellent visibility for machine status, alarms, and operator controls. The NB7W includes Ethernet connectivity for PLC communication and data exchange, plus a USB host port for memory sticks and peripherals. Its slim profile and simple mounting make it ideal for space-constrained panels. The NB7W-V1 variant includes enhanced features and compatibility with modern Omron PLCs. Perfect for small machines, conveyor systems, and applications where basic HMI functionality is needed without advanced features.
Typical Applications
- Small packaging machines
- Conveyor system operator stations
- Pump and motor control panels
- Simple assembly equipment
- Environmental monitoring displays
- Agricultural machinery interfaces
- HVAC control panels
Buying Checklist
- Ideal for applications not requiring advanced visualization
- Verify Ethernet protocol compatibility with PLC
- Ensure panel cutout matches dimensions for new or retrofit installations
- Consider NB-Designer software availability for programming
- Check power supply: 24VDC required with adequate current capacity
Technical Specifications
| Model | NB7W-TW01B-V1 |
|---|---|
| Series | NB7W |
| Screen Size | 7 inch |
| Display Type | TFT Color LCD |
| Resolution | 800 x 480 pixels (WVGA) |
| Communication | Ethernet, RS-232C |
| Supply Voltage | DC24V |
| Protection | IP65 front panel |
| Operating Temperature | 0 to +55°C |
| Dimensions | 198 x 143 x 43mm |
| Software | NB-Designer (free) |
| Memory | 128MB program |
Frequently Asked Questions
What's the difference between NB and NS series?
NB: economy series, lower cost, free NB-Designer software, essential features. NS: premium series, advanced features (data logging, recipes, multi-window), CX-Designer software (paid). Choose NB for basic HMI needs, NS for advanced applications.
Is NB-Designer software really free?
Yes, NB-Designer is completely free with no limitations. Download from Omron website. Includes simulator, symbol libraries, and screen templates. No license fees or annual subscriptions.
Can NB series connect to multiple PLC brands?
Yes, NB supports 100+ PLC drivers including Omron, Allen-Bradley, Siemens, Mitsubishi, Schneider, and Delta. One HMI model works with multiple PLC brands, simplifying inventory.
What's the typical application for 7" HMI?
Small to medium machines: conveyors, packaging equipment, small assembly systems, pump control, HVAC systems. 7" provides good balance of screen space and cost for most standalone machines.
Can I upgrade from NB to NS later?
Yes, screen sizes are compatible (NB7W = NS5, NB10W = NS10). However, software projects are not directly convertible. Plan for future needs when choosing series.
