SKU: NS5-SQ11B

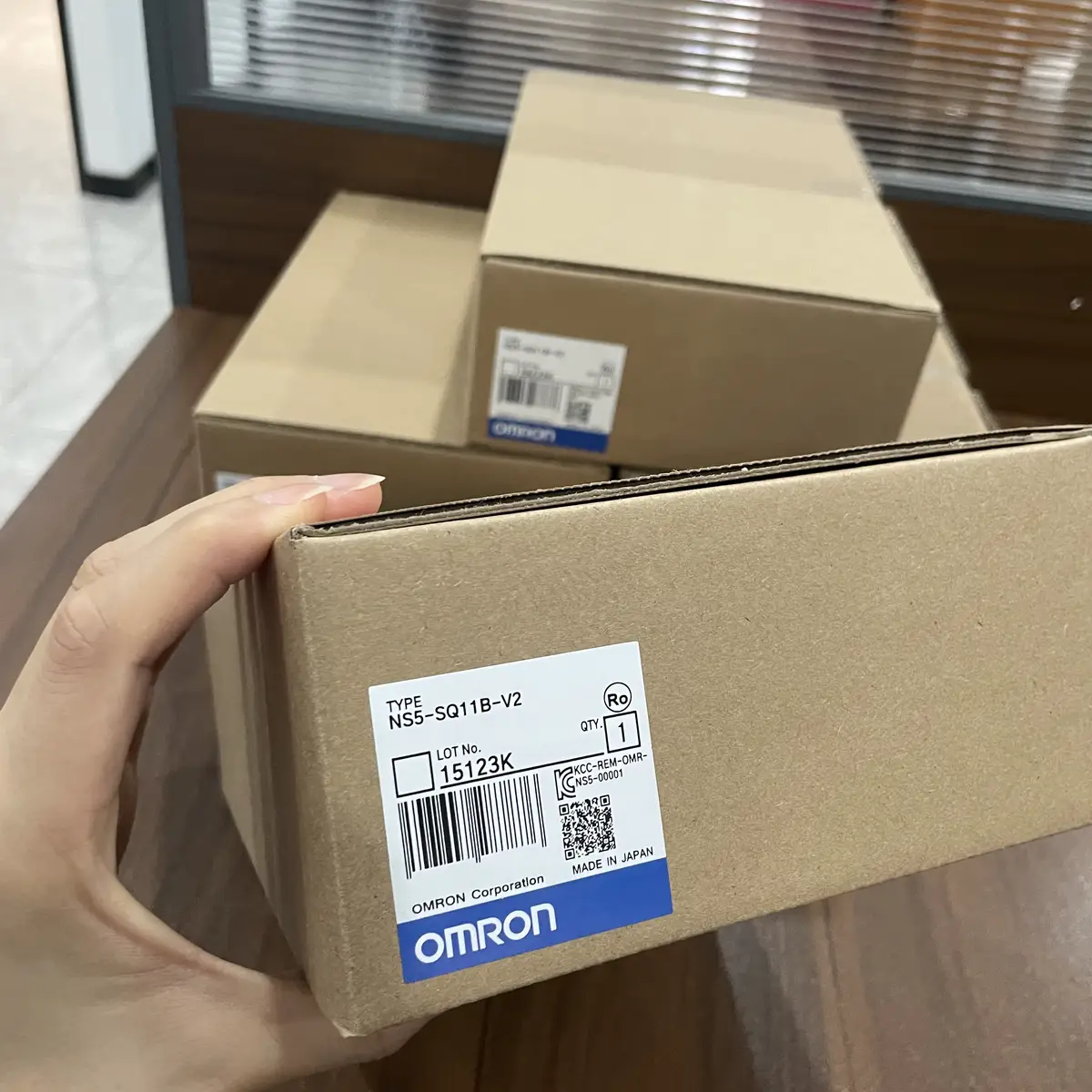

Omron NS5-SQ11B NS Series HMI 5.7 Inch
Omron NS5-SQ11B is a 5.7 inch NS series HMI with enhanced features for compact operator interface.
USD 435.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- NS-series 5.7-inch class HMI platform
- Supports operation, alarms, and diagnostics workflows
- Suitable for compact control panel installations
- Integrates with PLC communications and runtime tags
- Useful for recipe and parameter management pages
- Commonly used in retrofit or standard OEM machine UI designs
NS Operator Panel for Compact Machine Interface Workflows
NS5-SQ11B belongs to Omron NS HMI family and is used to deliver operator-facing control pages, alarm displays, and runtime status in compact machinery. A 5. 7-inch class interface is often selected when cabinet space is limited but a clear graphical UI is needed for daily operation. This model is commonly deployed for mode control, setpoint entry, fault acknowledgement, and maintenance support pages. Engineering teams should verify PLC communication mapping, screen navigation logic, and permission design to ensure safe and efficient use. During installation, cutout tolerance, cable service loop, and environmental suitability should be checked to avoid premature failures. NS5-SQ11B is generally chosen where reliable operator interaction and maintainable HMI project lifecycle are required across multiple machines.
Typical Applications
- Operator command screens for machine modes
- Alarm list and fault acknowledgement functions
- Setpoint entry and changeover recipe pages
- Maintenance diagnostics and manual-control support
- Production counter and status visualization screens
- Legacy panel replacement in existing automation lines
Buying Checklist
- Check UI complexity against 5.7-inch screen usability.
- Confirm communication protocol support with installed PLC.
- Validate panel cutout and clearance before procurement.
- Define user access levels and audit requirements.
- Maintain backup copies of project and revision history.
Technical Specifications
| Model | NS5-SQ11B |
|---|---|
| Series | NS5 |
| Screen Size | 5.7 inch |
| Display Type | STN Color LCD |
| Resolution | 320 x 240 (QVGA) |
| Communication | Serial |
| Supply Voltage | DC24V |
| Memory | 16MB |
| Operating Temperature | 0 to +55°C |
| Protection | IP65 (front panel) |
| Software | CX-Designer |
Frequently Asked Questions
What's special about SQ11B model?
SQ11B may have enhanced features: more memory, faster processor, additional communication options. Check Omron documentation.
Can this HMI connect to barcode reader?
Yes, via serial port. Configure barcode reader protocol in CX-Designer. Display scanned data, trigger actions.
Can I password-protect screens?
Yes, NS series supports user levels, password protection. Restrict access to certain screens or functions.
What's the touch panel type?
Analog resistive touch panel. Works with finger, stylus, gloved hand. Durable for industrial use.
