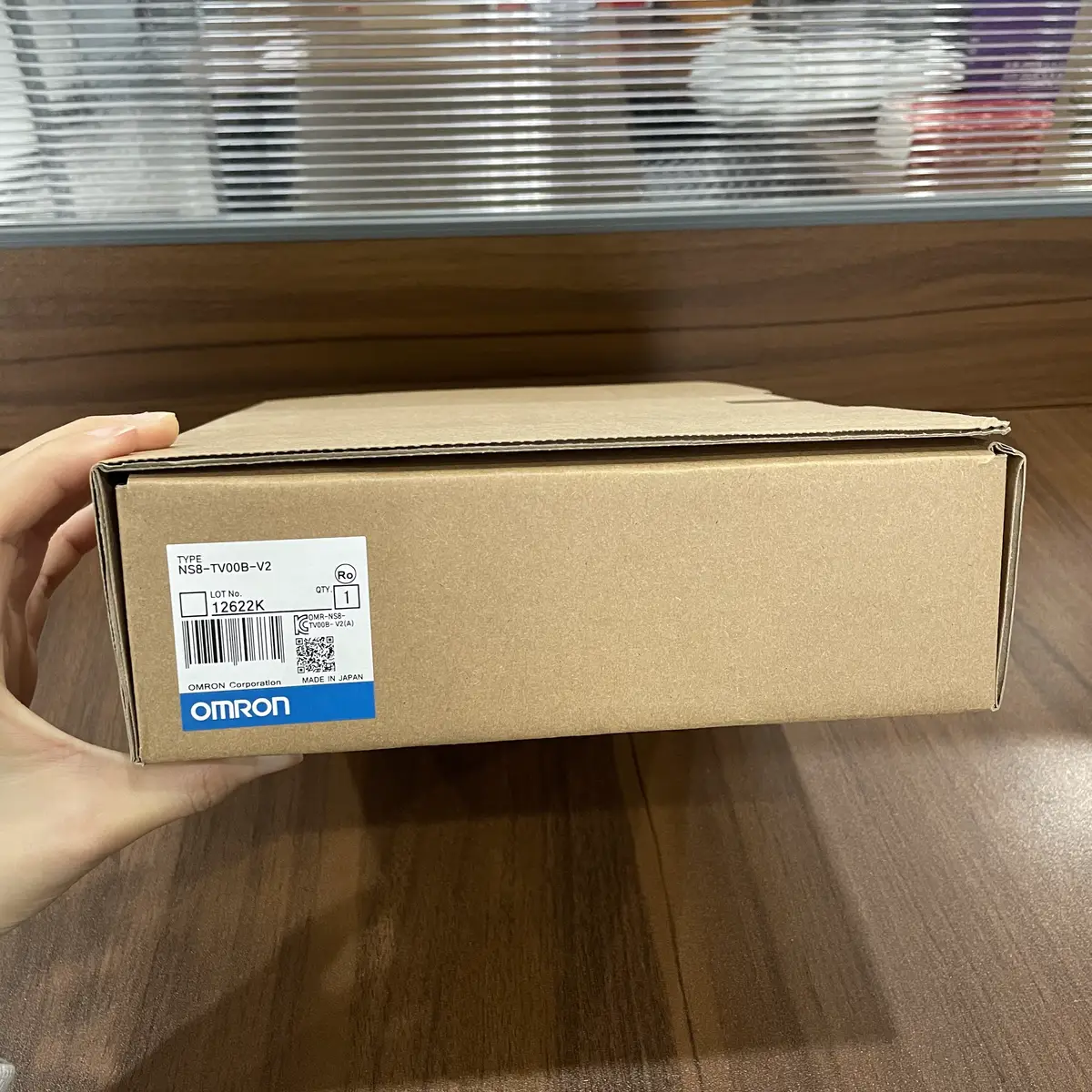

Omron NS8-TV00B-V2 NS Series Touch Screen HMI 8.4 inch TFT — front view

SKU: NS8-TV00B-V2

Omron NS8-TV00B-V2 NS Series Touch Screen HMI 8.4 inch TFT

Omron NS8-TV00B-V2 is an 8.4 inch NS series HMI with TFT display for machine operator interface.

USD 722.00 per unit, volume discounts available

  • In stock, ships in 24h
  • 100% genuine Omron
  • 1-year manufacturer warranty
  • Worldwide delivery
Request a Quote WhatsApp Us

Key Features
  • 8.4-inch TFT colour LCD with 640 x 480 (VGA) resolution
  • Touch-screen operator interface for CP/CJ/NJ/NX PLCs
  • Ethernet and serial communication (Modbus TCP / RTU supported)
  • USB port for screen-data and recipe transfer via USB stick
  • IP65-rated front panel for washdown installations
  • CX-Designer drag-and-drop screen editor
01 / Overview

NS Series 8.4" Touch-Screen HMI for Machine Interface

The Omron NS8-TV00B-V2 is an 8.4-inch TFT colour touch-screen programmable terminal from the NS Series, designed for machine-operator interface in industrial automation. The 640 x 480 VGA display provides clear visualisation of process status, alarms, and operator controls, while the IP65-rated front panel allows installation in washdown or panel-front environments.

The terminal communicates with Omron CP/CJ/NJ/NX PLCs over Ethernet or serial, and also connects to third-party PLCs via Modbus TCP and Modbus RTU. A USB port supports screen-data transfer using standard USB memory sticks, simplifying program upload and recipe handling without a PC.

CX-Designer software provides a drag-and-drop screen editor with a large library of industrial components — pushbuttons, indicator lamps, numeric entry, trend graphs, and alarms — for fast project development. 32 MB of on-board memory holds screens, macros, recipes, and logging data.

Typical Applications

  • PLC operator interface
  • Machine control monitoring
  • Process visualization
  • Alarm and event display
  • Data entry terminals
  • Small-scale SCADA
  • Packaging machinery HMI
  • Assembly line operator stations

Buying Checklist

  • Compact size fits limited spaces
  • Easy touch screen programming
  • Multiple communication options
  • Proven Omron HMI reliability
  • Bright display for various lighting
  • Ethernet for networked applications
  • Cost-effective solution
  • IP65 rated for industrial use
02 / Specifications

Technical Specifications

Technical specifications for Omron NS8-TV00B-V2 NS Series Touch Screen HMI 8.4 inch TFT
ModelNS8-TV00B-V2
SeriesNS8
Screen Size8.4 inch
Display TypeTFT Color LCD
Resolution640 x 480 (VGA)
CommunicationEthernet, USB, Serial
Supply VoltageDC24V
Memory32MB
Operating Temperature0 to +55°C
ProtectionIP65 (front panel)
SoftwareCX-Designer
03 / FAQ

Frequently Asked Questions

What's the difference between TV00 and TV00B?

TV00B may have enhanced features or updated hardware. Same screen size. Check Omron documentation.

What PLCs is this HMI compatible with?

Omron and third-party PLCs.

Can this HMI display trends?

Yes, NS series supports trend display, alarm history.

Can I remotely access this HMI?

Yes, NS series supports remote desktop, web server.
