SKU: NX-ID6142-6

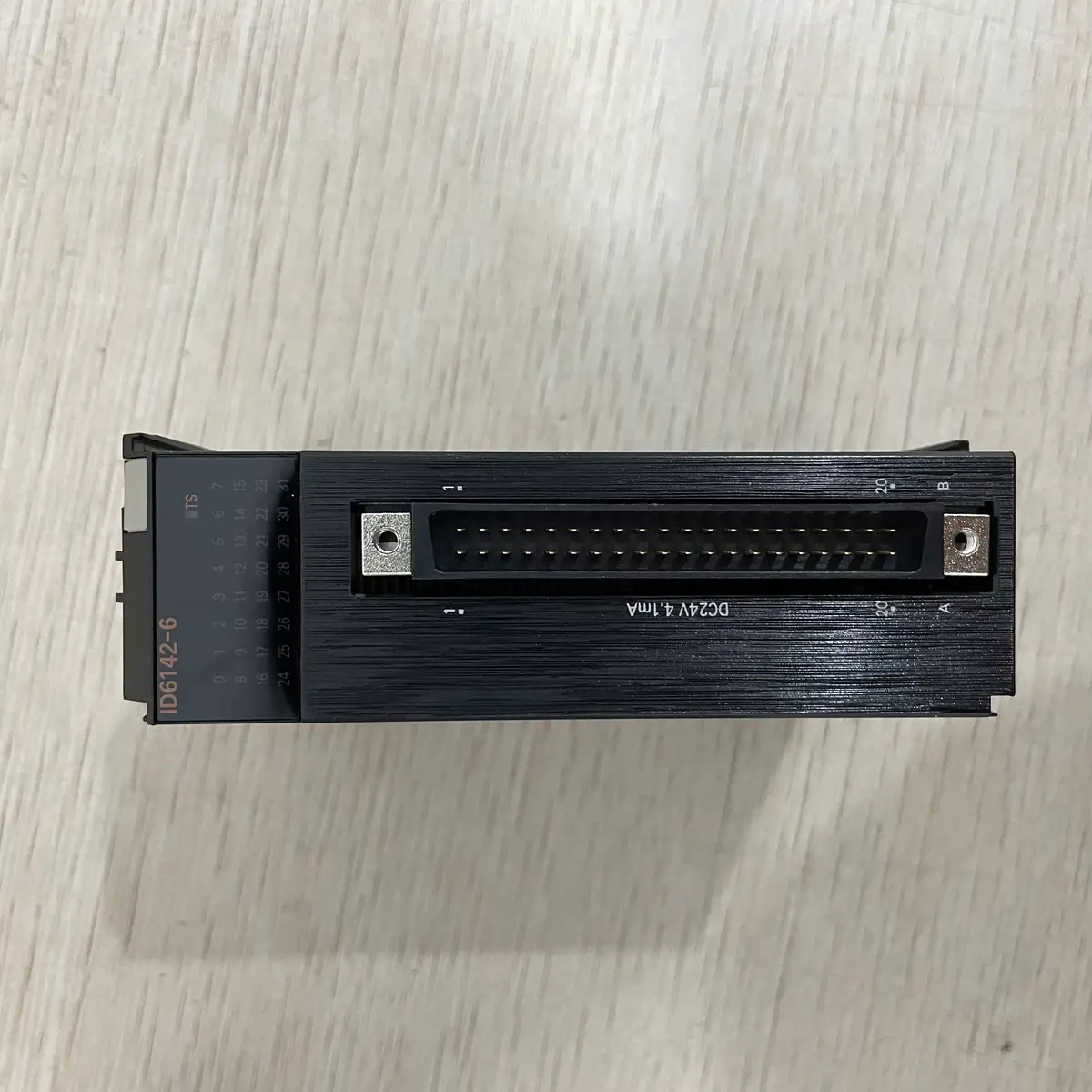

Omron NX-ID6142-6 Digital Input Module 16 Points 24VDC for NX Systems
Omron NX-ID6142-6 is a 16-point digital input module for NX systems, providing DC24V input.
USD 80.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 16-point digital input capacity for modular I/O expansion
- 24VDC input class for common industrial sensor circuits
- Designed for NX/Sysmac architecture compatibility
- Supports reliable interlock and sensor signal capture
- Suitable for scalable machine and line automation systems
- Improves maintainability with structured channel diagnostics
Reliable 16-Point Input Expansion for Modular NX Automation
The NX-ID6142-6 is designed for stable acquisition of discrete field signals in machine systems using NX architecture. Its 16-point format provides practical density for sensor and interlock inputs while maintaining manageable diagnostics and wiring structure. This module supports both new deployments and retrofit expansions where predictable input behavior is essential.
Typical Applications
- Reading proximity sensors on conveyor and transfer lines
- Monitoring machine interlocks and guard switch states
- Collecting fixture feedback in assembly stations
- Expanding input capacity in existing NX control racks
- Standardizing input module architecture in OEM machines
- Supporting retrofit upgrades without full controller redesign
Buying Checklist
- Practical 16-point density for broad machine applications
- Reliable 24VDC input handling in industrial environments
- Scales well in modular NX system expansions
- Supports maintainable diagnostics and service workflows
- Strong fit for long-term standardized automation platforms
Technical Specifications
| Model | NX-ID6142-6 |
|---|---|
| Series | NX |
| Type | Digital Input Module |
| Input Points | 16 points |
| Input Voltage | DC24V |
| Input Current | 7mA typical |
| Response Time | 0-32ms (adjustable) |
| Connection | Push-in terminals |
| Current Consumption | 100mA at 5VDC |
| Operating Temperature | 0 to +55°C |
| Mounting | DIN rail |
Frequently Asked Questions
What's the difference between ID6142-5 and ID6142-6?
ID6142-5: 64 points. ID6142-6: 16 points. Different point density. Check Omron documentation for specific differences.
Can I adjust input response time?
Yes, response time (0-32ms) is set in Sysmac Studio.
What sensors can I connect?
24VDC sensors: proximity sensors, photoelectric sensors, limit switches.
What wire size fits terminals?
22-14 AWG (0.5-2.5mm²) solid or stranded wire.
