SKU: NX-ID5442

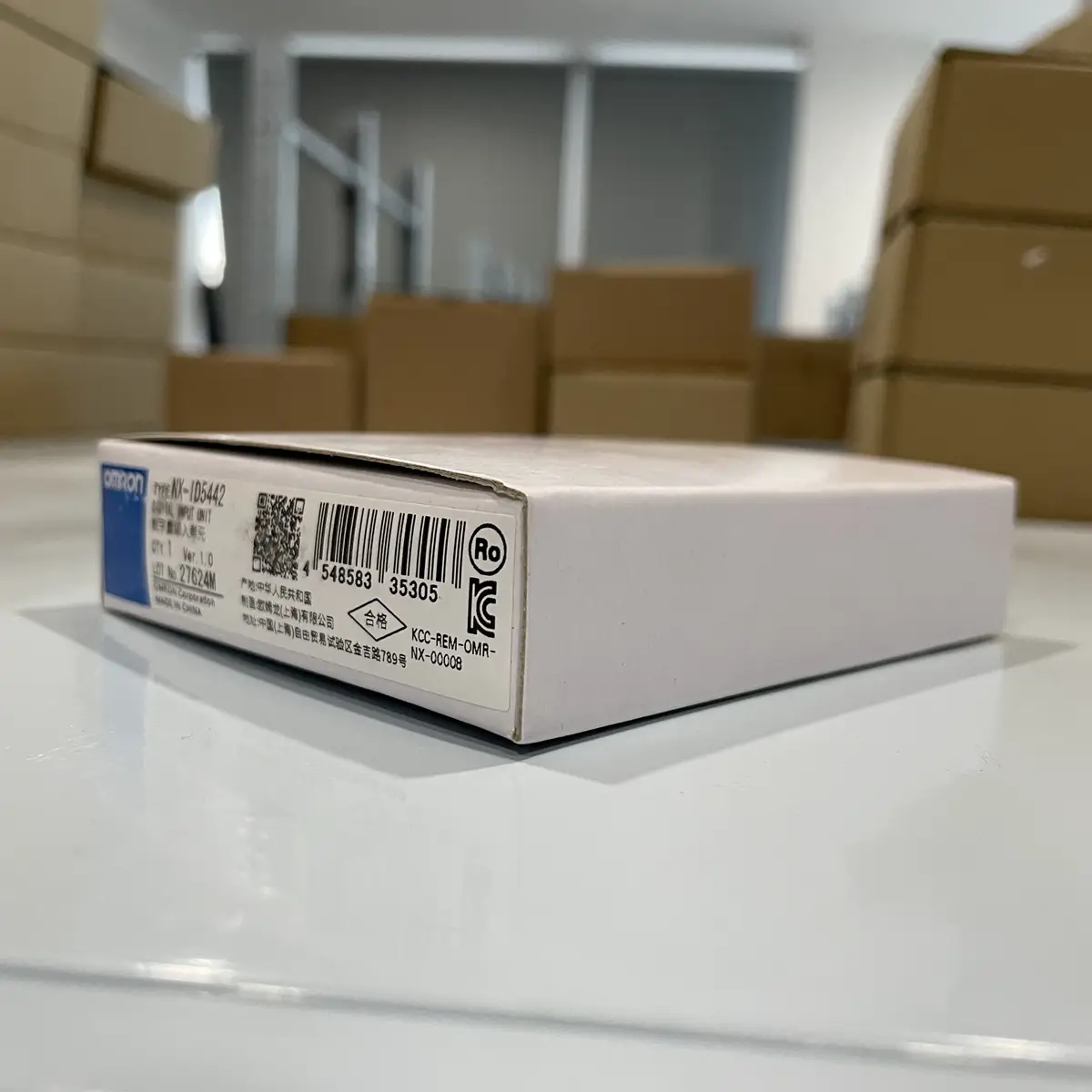

Omron NX-ID5442 Digital Input Unit 16 Points 24VDC for NX Systems
Omron NX-ID5442 is a 16-point digital input unit for NX systems, providing DC24V input for industrial automation.
USD 44.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 16-point digital input module for NX architecture
- Designed for 24VDC industrial sensor signal levels
- Compact modular slice format for efficient panel use
- Integrates with Sysmac engineering and diagnostics workflows
- Supports standardized I/O design across machine families
- Suitable for retrofit expansion and new machine platforms
24VDC Discrete Signal Collection in Compact NX Modular Format
The NX-ID5442 delivers dependable field-input acquisition for machines requiring 24VDC digital sensing in a modular I/O environment. It is suitable for sensor-rich applications that benefit from structured channel mapping and distributed control cabinet layouts. Integrated with Sysmac workflows, this module supports clean commissioning, straightforward fault isolation, and planned machine expansion without redesigning the entire input layer.
Typical Applications
- Reading proximity and photoelectric sensors on conveyors
- Collecting machine interlock and door switch signals
- Monitoring actuator position sensors in assembly fixtures
- Adding digital input capacity to existing NX control racks
- Standardizing discrete input design in OEM machine ranges
- Capturing station-ready signals in transfer systems
Buying Checklist
- Reliable 24VDC input handling for industrial sensors
- Modular approach reduces redesign effort during expansion
- Improves control panel organization and maintainability
- Sysmac-native mapping simplifies commissioning
- Good balance of channel count and cabinet footprint
Technical Specifications
| Model | NX-ID5442 |
|---|---|
| Series | NX |
| Type | Digital Input Unit |
| Input Points | 16 points |
| Input Voltage | DC24V |
| Input Current | 7mA typical |
| Response Time | 0-32ms (adjustable) |
| Connection | Push-in terminals |
| Current Consumption | 100mA at 5VDC |
| Operating Temperature | 0 to +55°C |
| Mounting | DIN rail |
Frequently Asked Questions
What's the input type?
DC24V input. Compatible with NPN or PNP sensors depending on wiring.
Can I adjust input response time?
Yes, response time (0-32ms) is set in Sysmac Studio.
What sensors can I connect?
24VDC sensors: proximity sensors, photoelectric sensors, limit switches.
What wire size fits terminals?
22-14 AWG (0.5-2.5mm²) solid or stranded wire. Use ferrules for stranded wire.
