SKU: R88D-KN01H-ECT-Z

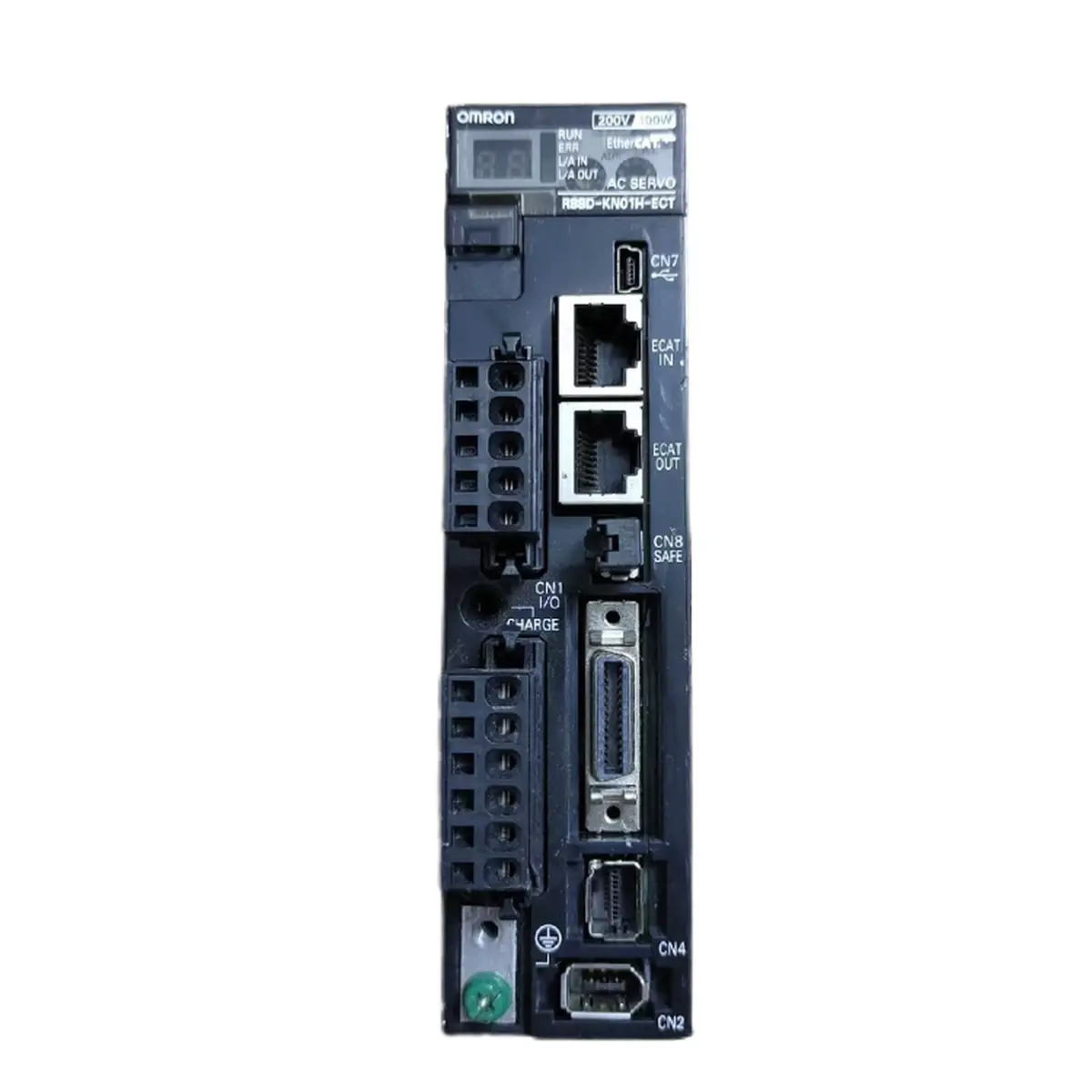

Omron R88D-KN01H-ECT-Z EtherCAT Servo Drive 100W 200V G5 Series with Safety Functions
Omron R88D-KN01H-ECT-Z is a G5 series EtherCAT servo drive with 100W power, single-phase 200VAC input, and safety functions (STO/SS1/SLS) for safety-critical motion control applications.
USD 295.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- EtherCAT communication for deterministic motion networking
- Built-in safety function support for safer machine architecture
- Compact servo drive format for high-density control cabinets
- Suitable for precision positioning and synchronized axis tasks
- Supports high-performance machine motion requirements
- Integrates with modern Omron motion control ecosystems
Compact Networked Servo Control with Integrated Safety Capability
The R88D-KN01H-ECT-Z supports precise axis control where deterministic EtherCAT communication and integrated safety are required. It is suitable for packaging, assembly, and robotic mechanisms needing synchronized motion and responsive drive behavior. This drive helps simplify architecture by combining control and safety-ready functionality in a compact motion platform.
Typical Applications
- Controlling compact precision axes in EtherCAT systems
- Synchronizing multi-axis packaging machine motion
- Supporting robotic arm joint or transfer axis control
- Implementing safer motion channels in guarded equipment
- Replacing legacy drives in modernization projects
- Standardizing networked servo architecture in OEM platforms
Buying Checklist
- Combines deterministic networking with compact motion control
- Integrated safety-ready design helps simplify architecture
- Supports precision and repeatability in demanding applications
- Strong fit for modern synchronized machine motion
- Practical upgrade path for higher-performance automation
Technical Specifications
| Model | R88D-KN01H-ECT-Z |
|---|---|
| Series | Accurax G5 EtherCAT |
| Type | EtherCAT Servo Drive |
| Rated Output | 100W |
| Input Voltage | Single-phase 200-240VAC |
| Input Frequency | 50/60Hz |
| Control Input | EtherCAT (CoE) |
| Control Modes | Position/Speed/Torque |
| Safety Functions | STO, SS1, SLS (IEC 61800-5-2) |
| Encoder Support | Incremental 20-bit absolute |
| Gain Adjustment | Auto-tuning, manual |
| Protection | Overcurrent, overload, overvoltage |
| Operating Temperature | 0 to +55°C |
| Mounting | DIN rail or panel |
| Mass | Approx. 0.5kg |
Frequently Asked Questions
What safety functions does the -Z suffix provide?
The -Z suffix provides STO (Safe Torque Off), SS1 (Safe Stop 1), and SLS (Safely Limited Speed) safety functions per IEC 61800-5-2, enabling compliance with safety categories up to SIL3/PLe.
What motors are compatible with this drive?
Compatible with R88M-K series G5 servo motors up to 100W rating, including R88M-K10030H-S2 and similar models.
What EtherCAT protocol does this support?
Supports EtherCAT CoE (CANopen over EtherCAT) for parameter access and process data communication with Omron NJ/NX series controllers.
Does this drive support auto-tuning?
Yes, includes automatic gain tuning function for easy servo optimization without manual parameter adjustment.
