Omron R88M-K20030H-S2-Z R88M Series AC Servo Motor 2kW 3000rpm

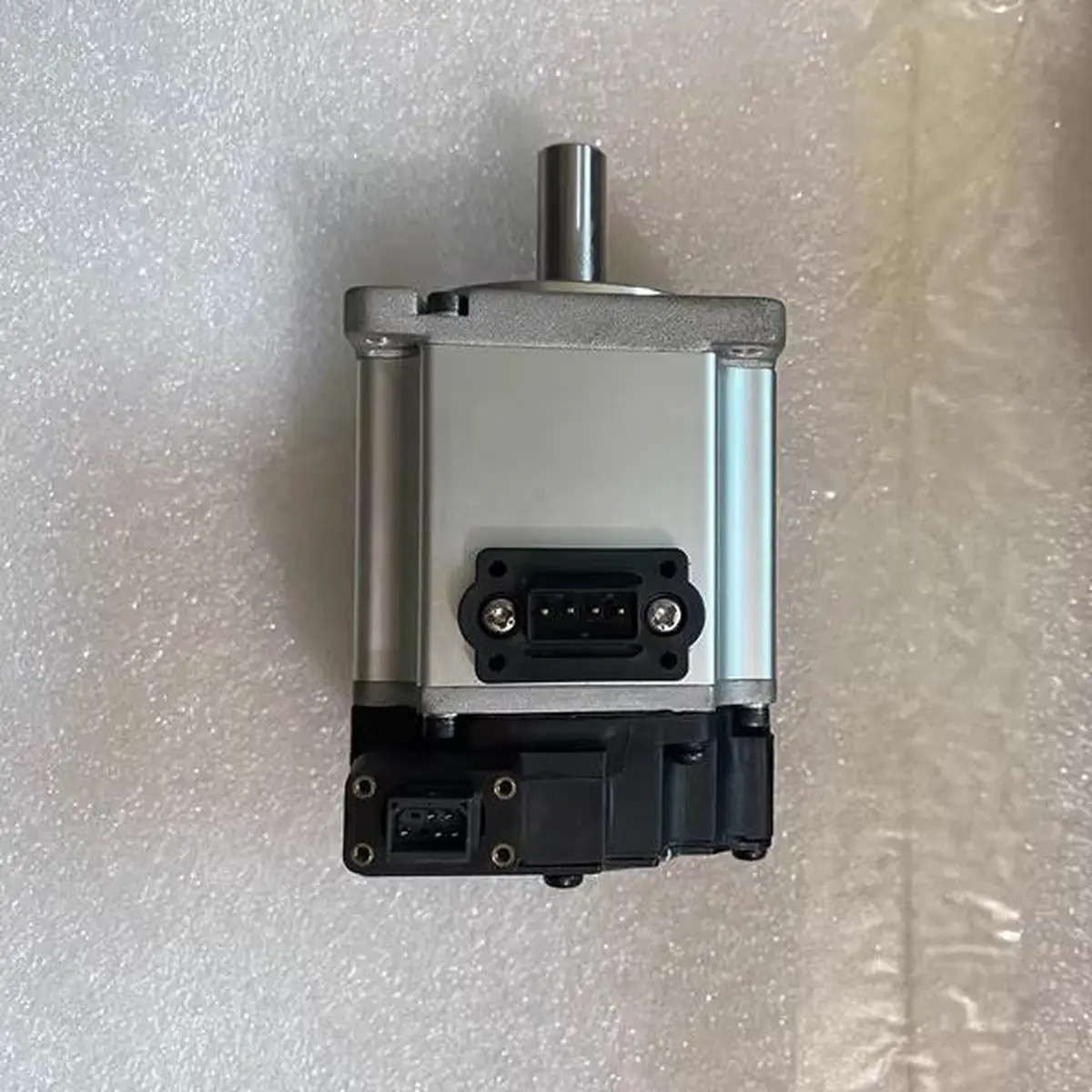

Omron R88M-K20030H-S2-Z Servo Motor

The Omron R88M-K20030H-S2-Z is a 2kW AC servo motor from the R88M series, designed for high-performance motion control applications. This motor delivers a rated output of 2,000 watts with a rated speed of 3,000 revolutions per minute and provides substantial holding torque for maintaining position when stopped. The motor features a medium inertia rotor optimized for applications requiring moderate load inertia matching, making it suitable for a wide range of industrial machinery. The R88M-K20030H-S2-Z comes with a built-in 17-bit absolute encoder for high-resolution position feedback, enabling precise positioning and velocity control. The motor includes a standard straight shaft design (S2 indicates straight shaft with key) and is compatible with Omron R88D series servo drives. With an IP65 rating (excluding shaft output), this motor is suitable for use in industrial environments where exposure to dust and splashing water may occur. The motor features a compact construction with a 130mm flange size, making it compatible with standard motor mounting arrangements.
