SKU: R88M-K40030T-S2

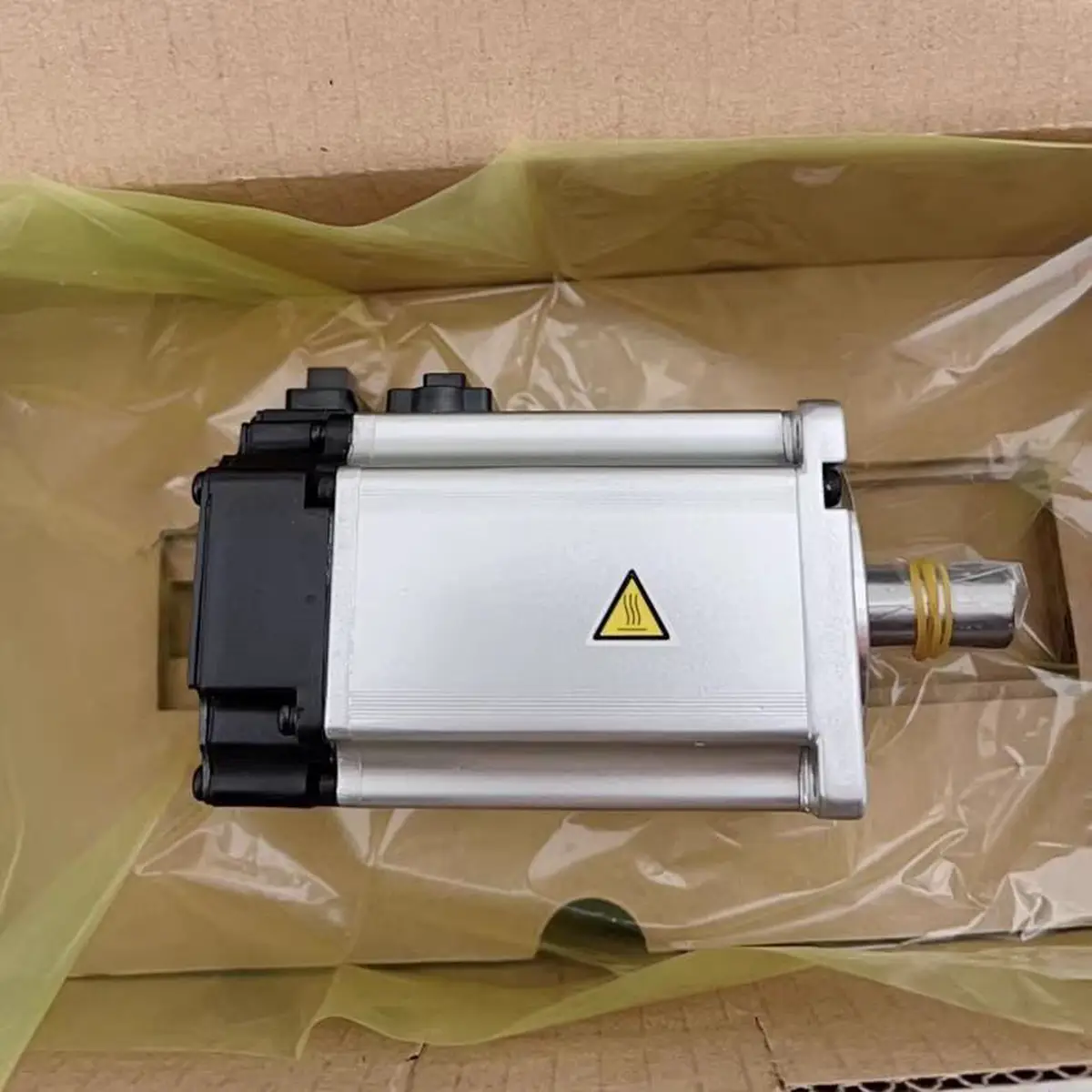

Omron R88M-K40030T-S2 AC Servo Motor 400W 3000rpm 200V G5 Series Smooth Shaft
Omron R88M-K40030T-S2 is a G5 series AC servo motor with 400W power, 3000rpm, 200V class, smooth shaft without brake for horizontal axis applications in machine tools and material handling.
USD 178.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 400W servo motor class for medium-duty precision axes
- Designed for repeatable positioning and smooth dynamic response
- Suitable for packaging, robotics, and transfer mechanisms
- Supports high-cycle operation in production environments
- Integrates with Omron servo drive ecosystems
- Practical for OEM standardization and retrofit replacement
Precision 400W Servo Motion for Fast and Repeatable Axis Control
The R88M-K40030T-S2 is suited for machine axes requiring consistent positioning accuracy and responsive motion behavior. It is used in packaging, assembly, and transfer systems where cycle repeatability directly affects product quality and throughput. This motor supports robust closed-loop control when paired with compatible servo drives and standardized motion architecture.
Typical Applications
- Driving indexing and transfer axes in packaging lines
- Controlling precision position channels in assembly stations
- Powering coordinated motion in compact robotic mechanisms
- Upgrading underperforming legacy servo motors
- Supporting standardized servo channels in OEM machines
- Improving repeatability in quality-critical production steps
Buying Checklist
- Balanced 400W class for broad precision motion tasks
- Reliable repeatability for process quality stability
- Strong fit for high-cycle industrial machine use
- Practical for platform standardization and spare stocking
- Good performance-to-integration tradeoff for OEMs
Technical Specifications
| Model | R88M-K40030T-S2 |
|---|---|
| Series | Accurax G5 (R88M-K) |
| Type | AC Servo Motor |
| Rated Output | 400W |
| Rated Speed | 3000rpm |
| Rated Voltage | 200V AC |
| Rated Torque | 1.27 Nm |
| Peak Torque | 3.82 Nm |
| Shaft Type | Smooth shaft (no key) |
| Shaft Diameter | 14mm |
| Brake | Without brake |
| Encoder | Incremental 20-bit compatible |
| Frame Size | 60mm |
| Mass | Approx. 1.2kg |
| Protection | IP65 |
| Insulation Class | Class B |
Frequently Asked Questions
What is the difference between K and T shaft types?
K = Key shaft with oil seal (for high torque transmission), T = Smooth shaft without key (for coupling applications). Select based on your mechanical coupling requirements.
Does this motor have a brake?
No, this is a smooth shaft model without brake. For vertical axis applications requiring brake, select the H suffix model (R88M-K40030H-S2).
What applications suit this motor?
Horizontal axis applications such as conveyor drives, horizontal slides, and rotary tables where brake is not required.
What drives are compatible?
R88D-KN series EtherCAT drives and R88D-KT series analog/pulse drives rated 400W or higher.
