SKU: S8VK-C24024

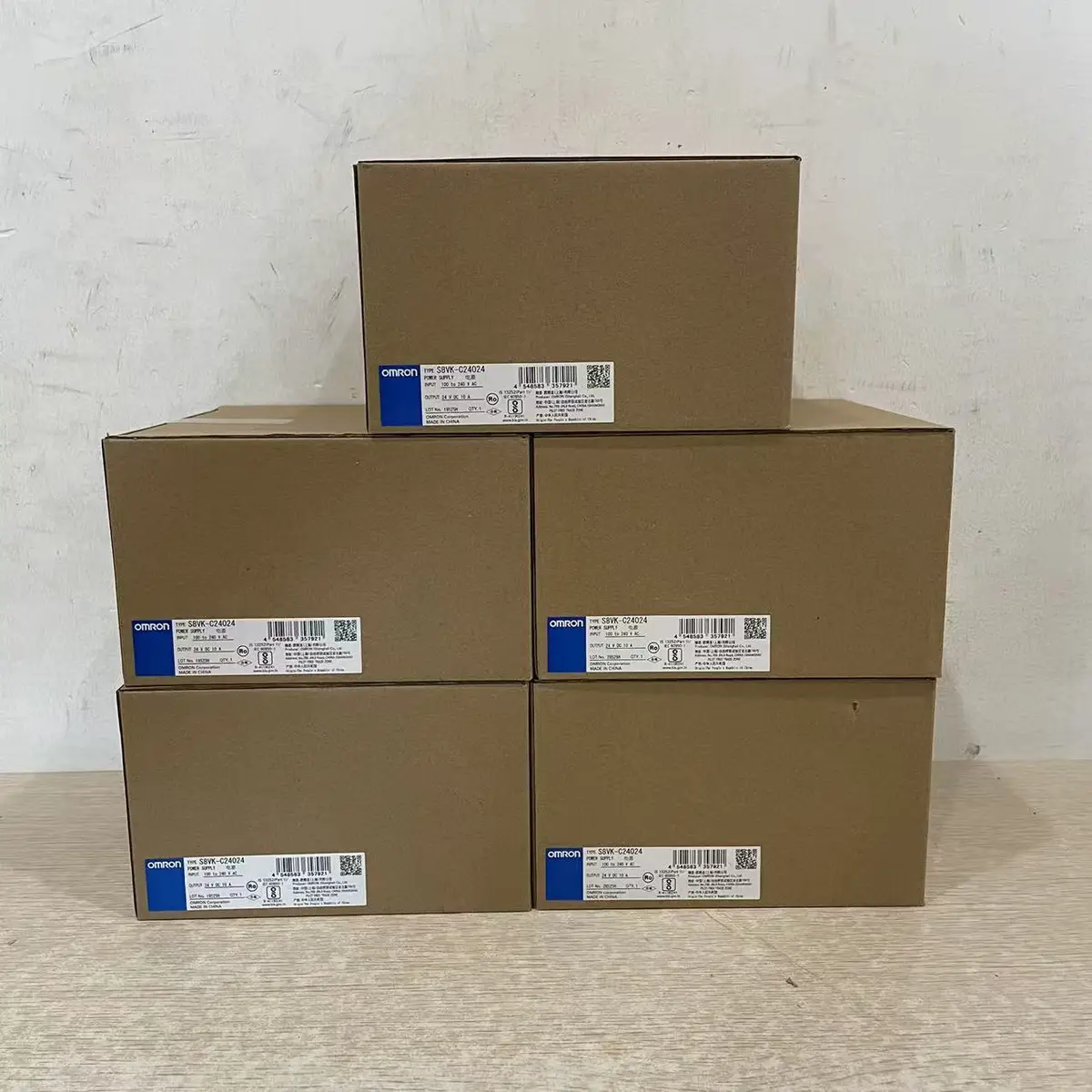

Omron S8VK-C24024 Switching Power Supply 240W 24VDC Economy
Omron S8VK-C24024 is a 240W economy DIN rail power supply with 24VDC output, cost-effective for medium-power industrial applications.
USD 36.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Output Power: 240W
- Output Voltage: 24VDC
- Output Current: 10A
- Input Voltage: AC100-240V
- Efficiency: 85% typical
- Operating Temperature: -25 to +60°C
High-Capacity 24VDC Source for Industrial Control Cabinets
The S8VK-C24024 is designed for automation panels that require higher DC power headroom for controller systems, sensors, communication devices, and auxiliary loads. It supports reliable machine uptime through stable regulated output.
240W Power Budget for Denser Loads
This model supports control cabinets with higher aggregate current demand, reducing overload risk and enabling future expansion margin.
DIN-Rail Friendly Mechanical Integration
Compact DIN installation simplifies panel assembly workflows and replacement strategy for standardized OEM cabinet designs.
Uptime-Critical Voltage Stability
Stable 24VDC delivery helps prevent nuisance resets, communication dropouts, and control instability under varying machine operating states.
Typical Applications
- Supplies stable 24VDC under mixed loading
- Reduces brownout-related PLC faults
- Supports denser field-device populations
- Provides growth headroom for add-on modules
- Enables cleaner standardization across panels
- Improves reliability during peak load transitions
Buying Checklist
- 240W class suits medium/high control loads
- DIN rail format simplifies build and service
- Stable regulated output for uptime
- Good fit for scalable panel architectures
- Proven Omron industrial PSU platform
Technical Specifications
| Model | S8VK-C24024 |
|---|---|
| Series | S8VK-C |
| Output Power | 240W |
| Output Voltage | 24VDC |
| Output Current | 10A |
| Input Voltage | AC100-240V |
| Efficiency | 85% typical |
| Operating Temperature | -25 to +60°C |
| Protection | Overcurrent, overvoltage |
| Mounting | DIN rail |
| Cost Reduction | Approx. 25% vs S8VK-G |
Frequently Asked Questions
What size breaker do I need?
For 240W at 240VAC: 2A type D or K circuit breaker. Size at 150-200% of input current to handle inrush.
Can I use this for PLC power?
Yes, common application. 10A output suits medium-size PLC systems with I/O. Ensure total load doesn't exceed 10A continuous.
What wire size for 10A output?
Use minimum 14 AWG (2.5mm²) copper wire for 10A. For runs over 5 meters, consider 12 AWG (4mm²) to minimize voltage drop.
Is this power supply suitable for 24/7 operation?
Yes, designed for continuous operation. Expected life: 10+ years at rated load and 40°C ambient. Life decreases at higher temperatures.
