SKU: S8VK-S06024

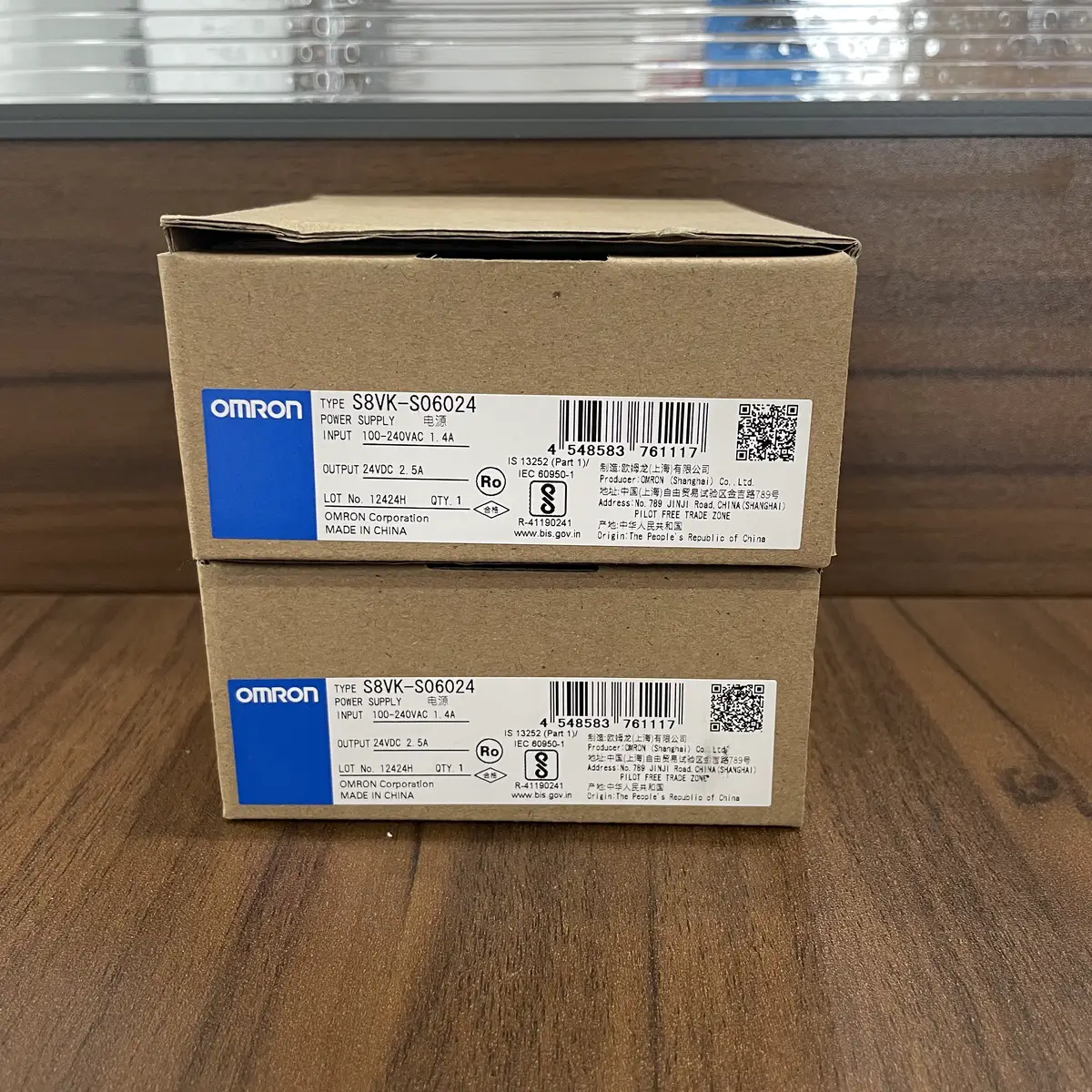

Omron S8VK-S06024 Switching Power Supply 60W 24VDC Slim DIN Rail
Omron S8VK-S06024 is a 60W slim DIN rail power supply with 24VDC output, compact design for space-constrained control panels.
USD 40.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 24VDC output with 2.5A current capability
- Compact DIN rail format for tight panel spaces
- Suitable for PLC, sensor, and relay control loads
- Reliable switched-mode design for industrial operation
- Practical choice for compact OEM machine cabinets
- Supports clean power architecture in utility controls
Compact 24VDC Power for Small and Efficient Control Cabinets
The S8VK-S06024 is designed for compact automation systems where panel space and power efficiency are critical. With 24VDC 2. 5A output, it supports small PLC controllers, I/O modules, sensors, and interface relays in a clean DIN rail format. This model is ideal for standardized low-to-medium load cabinets where dependable control voltage and easy maintenance are required.
Typical Applications
- Powering compact PLC and HMI combinations
- Supplying sensors on small conveyor systems
- Driving relay and interface circuits in machine panels
- Supporting utility control boxes and auxiliaries
- Replacing low-capacity legacy DC supplies
- Standardizing small power modules in OEM designs
Buying Checklist
- Compact size reduces cabinet footprint pressure
- 2.5A output fits many small automation systems
- DIN rail mounting improves assembly efficiency
- Reliable baseline for stable control voltage
- Cost-effective option for standardized low-power panels
Technical Specifications
| Model | S8VK-S06024 |
|---|---|
| Series | S8VK-S |
| Output Power | 60W |
| Output Voltage | 24VDC |
| Output Current | 2.5A |
| Input Voltage | AC100-240V |
| Efficiency | 88% typical |
| Width | 22.5mm (slim) |
| Operating Temperature | -25 to +70°C |
| Protection | Overcurrent, overvoltage |
| Mounting | DIN rail |
| Dimensions | 22.5 x 100 x 110mm |
Frequently Asked Questions
How is 60W possible in such a slim package?
Advanced switching topology and high-efficiency design (88%) reduces heat generation, allowing compact heatsinking. Slim 22.5mm width saves panel space.
Do I need special ventilation for slim power supply?
Yes, maintain 50mm clearance above/below for airflow. Slim design has less surface area for heat dissipation. Ensure panel ventilation.
Can I mount multiple slim power supplies side by side?
Yes, but maintain 20mm spacing between units for airflow. For multiple high-power units, consider forced air cooling.
What's the advantage of slim design?
50% narrower than standard (22.5mm vs 45mm). Saves panel space, allows more I/O or devices in same panel. Ideal for space-constrained installations.
