SKU: S8VK-T48024

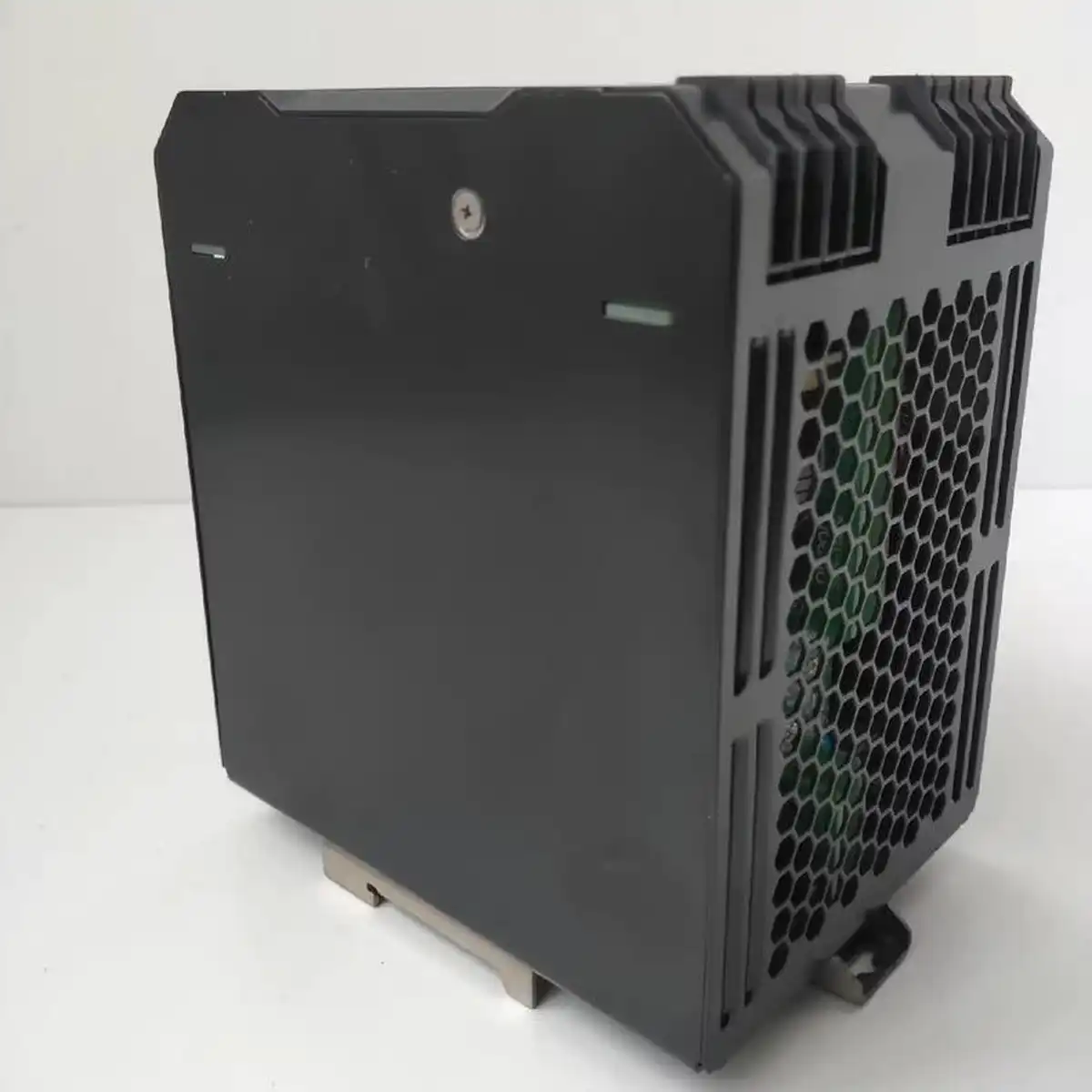

Omron S8VK-T48024 Three-Phase Switching Power Supply 480W 24VDC 20A
Omron S8VK-T48024 is a 480W three-phase DIN rail power supply with 24VDC 20A output, balanced load distribution for high-power systems.
USD 152.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 24VDC 20A output for high-load control system demand
- 480W class for large panels and multi-device architectures
- Three-phase input for robust industrial power integration
- DIN rail installation for maintainable cabinet assembly
- Suitable for PLC, I/O, drives, and communication infrastructure
- Supports scalable future expansion with power headroom
High-Capacity Three-Phase 24VDC Power for Demanding Automation Panels
The S8VK-T48024 supports large control systems with substantial DC load requirements, including PLCs, distributed I/O, HMIs, and network devices. Its three-phase input class is well suited for industrial facilities prioritizing robust supply behavior and panel reliability. This model provides strong power headroom for expansion and helps maintain stable operation in high-density automation environments.
Typical Applications
- Powering large PLC and distributed I/O systems
- Supporting high-device-count packaging lines
- Supplying networked control infrastructure in production cells
- Upgrading undersized DC supplies in retrofit projects
- Standardizing high-capacity 24V rails in OEM platforms
- Providing reliable control power in utility and process skids
Buying Checklist
- High current capacity supports complex automation panels
- Three-phase design suits industrial power standards
- Strong headroom reduces risk during future expansion
- DIN rail format keeps high-power cabinets maintainable
- Reliable choice for uptime-focused high-load operations
Technical Specifications
| Model | S8VK-T48024 |
|---|---|
| Series | S8VK-T |
| Output Power | 480W |
| Output Voltage | 24VDC |
| Output Current | 20A |
| Input Voltage | Three-phase 380-480VAC |
| Input Current | 0.6A at 400VAC |
| Efficiency | 90% typical |
| Operating Temperature | -25 to +70°C |
| Protection | Overcurrent, overvoltage, phase loss |
| Mounting | DIN rail |
| Dimensions | 90 x 125 x 125mm |
| Mass | Approx. 1.2kg |
Frequently Asked Questions
Why use three-phase input instead of single-phase?
Three-phase input provides: balanced load distribution across phases (important for large installations), reduced input current per phase, better efficiency at higher power levels.
What happens if one phase is lost?
Phase loss protection shuts down supply safely to prevent damage. Can continue operating on two phases at reduced capacity (approximately 60% output), but address phase loss promptly.
When should I choose three-phase over single-phase power supply?
Choose three-phase for: panels already wired with three-phase power, installations over 500W total power, when balancing load across phases is important. For under 200W, single-phase is typically simpler.
Can I connect this to 208V three-phase?
S8VK-T is designed for 380-480VAC three-phase. For 208V three-phase systems, use single-phase S8VK connected phase-to-phase (208VAC single-phase), or check Omron's low-voltage three-phase options.
