SKU: S8VK-S48024

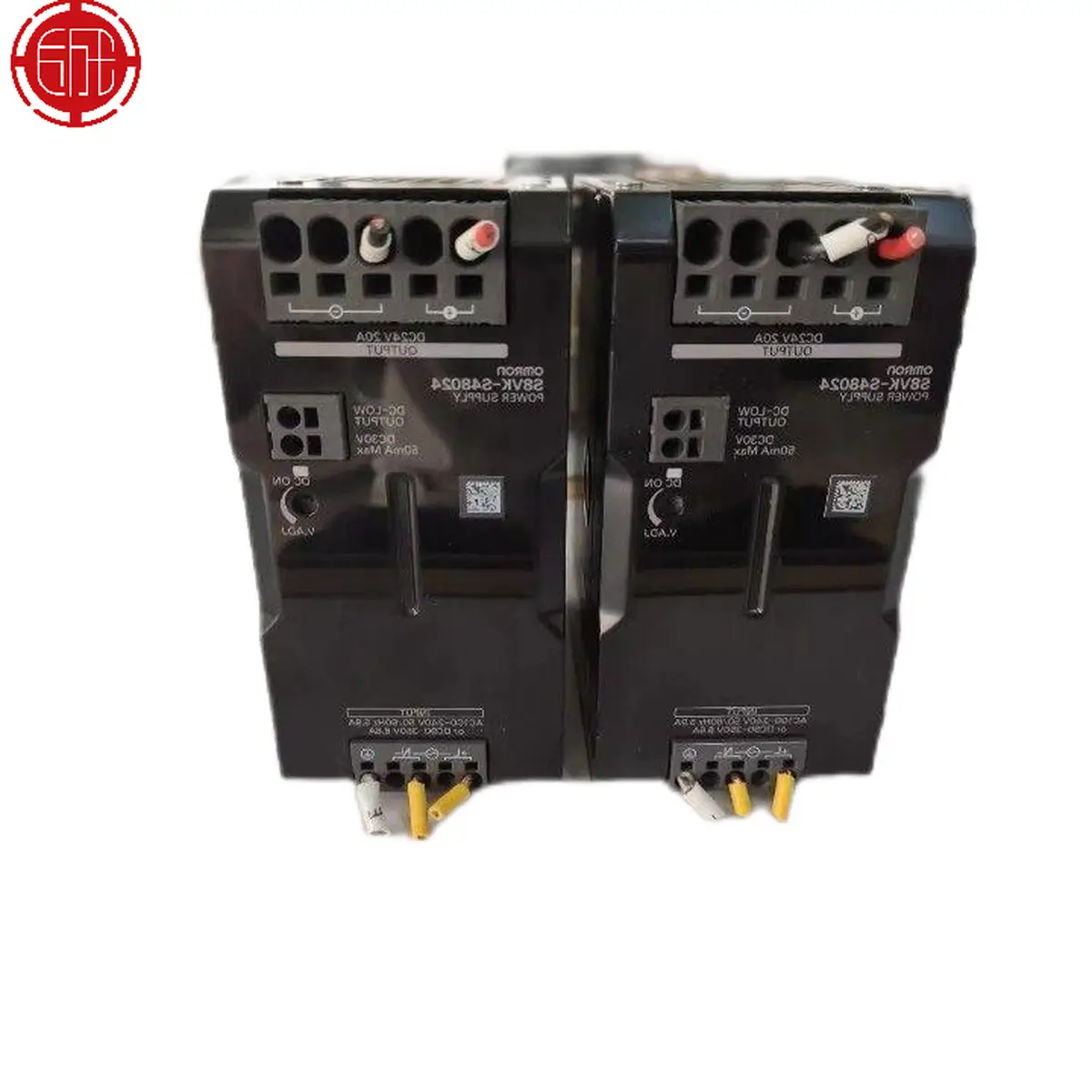

Omron S8VK-S48024 Switching Power Supply 480W 24VDC 20A Slim DIN Rail
Omron S8VK-S48024 is a 480W slim DIN rail power supply with 24VDC 20A output, compact design for high-power applications in space-constrained panels.
USD 160.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 480W power class for high-load control systems
- 24VDC 20A output supports large device populations
- DIN rail mounting for structured panel integration
- Suitable for distributed I/O and communication-heavy architectures
- Provides power headroom for expansion and peak demands
- Designed for reliable industrial continuous-duty operation
High-Power 24VDC Source for Demanding Industrial Panels
The S8VK-S48024 provides substantial 24VDC capacity for systems with large PLC/I/O networks, multiple actuators, communication hardware, and extensive field devices. Its DIN rail design supports organized installation in larger cabinets while maintaining maintainability standards. This unit is commonly selected for production lines requiring robust power headroom and stable operation under variable load profiles.
Typical Applications
- Supplying large PLC and distributed I/O installations
- Powering actuator-dense packaging and handling lines
- Feeding communication and HMI infrastructure in big panels
- Supporting retrofit upgrades with increased DC demand
- Providing robust 24VDC rails in utility process systems
- Standardizing high-capacity power in OEM flagship machines
Buying Checklist
- High current capacity supports complex line architectures
- Reduces risk of power bottlenecks during expansion
- Improves stability for multi-device control systems
- DIN rail format keeps high-power panels maintainable
- Strong choice for high-demand industrial automation
Technical Specifications
| Model | S8VK-S48024 |
|---|---|
| Series | S8VK-S |
| Output Power | 480W |
| Output Voltage | 24VDC |
| Output Current | 20A |
| Input Voltage | AC100-240V |
| Efficiency | 90% typical |
| Width | 45mm (slim for 480W) |
| Operating Temperature | -25 to +70°C |
| Protection | Overcurrent, overvoltage, thermal |
| Mounting | DIN rail |
Frequently Asked Questions
How is 480W possible in such a slim package?
Advanced switching topology and high-efficiency design (90%) reduces heat generation, allowing compact heatsinking. The slim 45mm width saves panel space compared to traditional 480W supplies that are 70-90mm wide.
What wire size do I need for 20A output?
Use minimum 12 AWG (4mm²) copper wire for 20A output. For runs over 5 meters, consider 10 AWG (6mm²) to minimize voltage drop. Always follow local electrical codes for wire sizing.
Do I need special ventilation for 480W?
Yes, 480W at 90% efficiency dissipates ~48W as heat. Maintain 50mm clearance above/below, ensure panel ventilation, and consider forced air cooling for enclosed panels or high ambient temperatures.
Can I use this for servo drive applications?
Yes, but size appropriately. Servo drives have high peak currents. For servo applications, size at 1.5-2x continuous current. The S8VK-S48024 can handle one 400W servo drive or multiple smaller drives with proper sizing.
