SKU: S8VS-06024A

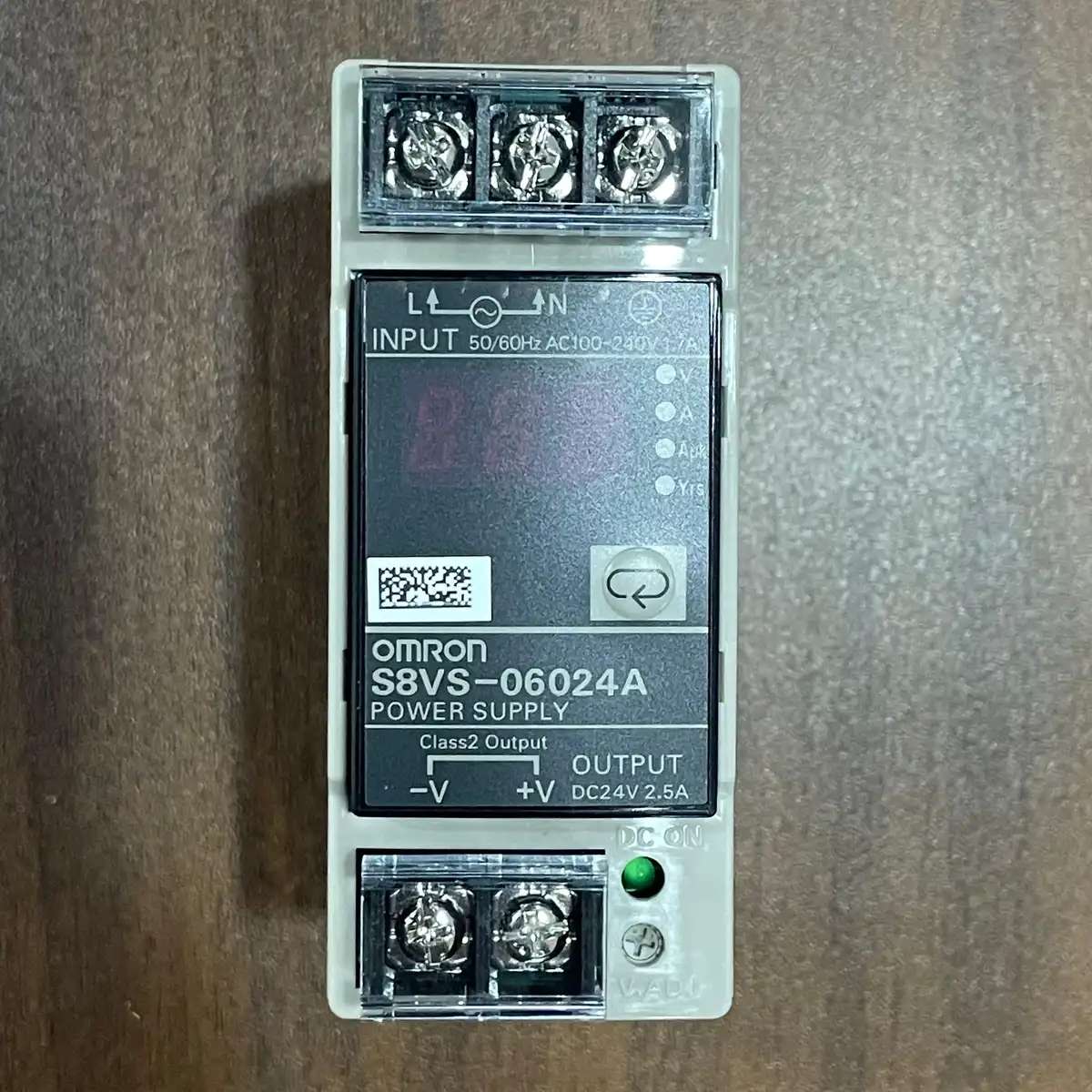

Omron S8VS-06024A Switching Power Supply 60W 24VDC 2.5A DIN Rail
Omron S8VS-06024A is a 60W DIN rail switching power supply providing regulated 24VDC 2.5A output for small PLC and control circuits.
USD 99.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 24VDC regulated output for control electronics
- 60W class suitable for compact panel load profiles
- DIN rail mounting for fast and organized installation
- Supports PLC, sensor, relay, and interface device power
- Reliable operation in industrial automation environments
- Good fit for standardized compact control designs
Compact 24VDC Control Power for Reliable Daily Operation
The S8VS-06024A provides a stable DC source for small automation systems where panel space, simplicity, and reliability are critical. It is commonly used in local control boxes, compact machine modules, and utility interfaces. DIN rail installation supports clean assembly and quick replacement, making this model practical for OEM standardization and routine maintenance across distributed equipment.
Typical Applications
- Powering compact PLC and I/O stations
- Supplying sensor groups in small machine cells
- Driving relay and interface circuits
- Supporting local utility control boxes
- Replacing aging low-power supplies in retrofits
- Standardizing compact power modules across OEM products
Buying Checklist
- Compact footprint for dense cabinet layouts
- Reliable 24VDC source for essential control circuits
- Simple DIN rail integration for faster panel build
- Cost-effective solution for lower-power automation systems
- Practical spare-part strategy for distributed installations
Technical Specifications
| Model | S8VS-06024A |
|---|---|
| Series | S8VS |
| Output Power | 60W |
| Output Voltage | 24VDC |
| Output Current | 2.5A |
| Input Voltage | AC100-240V |
| Efficiency | 83% typical |
| Protection | Overcurrent, overvoltage |
| Operating Temperature | -10 to +60°C |
| Mounting | DIN rail or panel |
| Dimensions | 40 x 121.3 x 115mm |
| Mass | Approx. 450g |
Frequently Asked Questions
What size power supply do I need for my PLC panel?
Calculate total current: PLC CPU (0.3-0.5A) + I/O modules (0.1A each) + sensors (0.05A each) + relays (0.03A each). Add 20-30% headroom. For small panels with 20-30 I/O points, 60W (2.5A) is typically sufficient.
Can this power supply start all my loads simultaneously?
The S8VS-06024A has inrush current limiting for capacitive loads. For large capacitive loads (>10,000μF total), add a soft-start circuit or sequence load activation to prevent startup issues.
How long will this power supply last?
Expected life is 10+ years at rated load and 40°C ambient. Life decreases at higher temperatures (halve for every 10°C above 40°C). For critical applications, plan replacement after 7-8 years or monitor with DC OK output.
Do I need a fuse on the output?
The S8VS has internal overcurrent protection, but branch circuit protection is recommended. Use 3-4A fast-blow fuse or 3A circuit breaker for the 60W model to protect wiring and provide disconnect capability.
