SKU: ZX-EDR5T

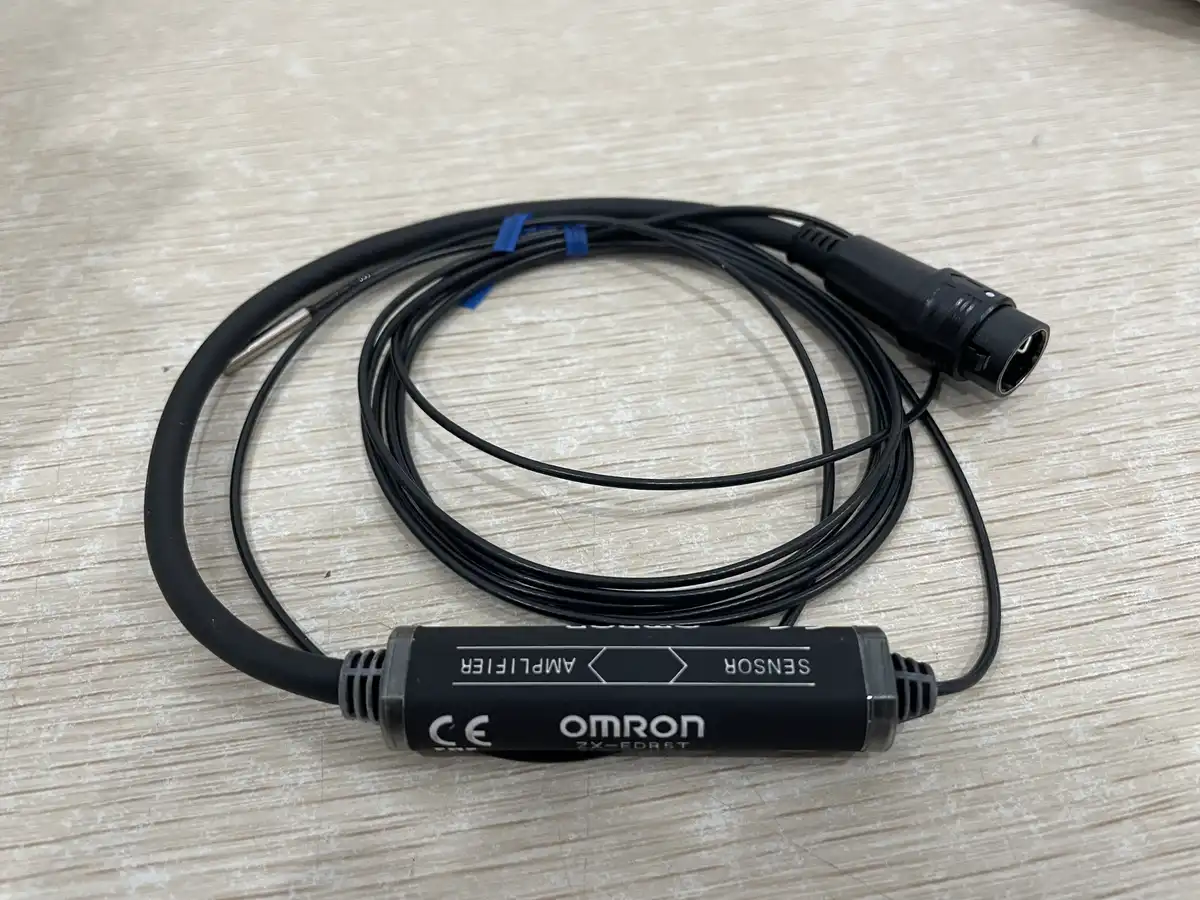

Omron ZX-EDR5T Contact Probe for Measuring Systems
Contact probe for precision measuring and inspection systems.
USD 508.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Probe Type: Plunger type
- Operating Force: 0.4N max
- Probe Travel: 4mm
- Repeatability: 0.5μm
- Contact Material: Ruby tip
- Cable Length: 2m
Reliable Detection Layer for Sequence Accuracy and Process Stability
The ZX-EDR5T is used to deliver repeatable machine-state detection for sequencing, interlocks, and process confirmation. Whether in packaging, handling, or assembly systems, this sensing class helps reduce false triggers and improves control confidence under continuous operation.
Repeatable State Detection
Accurate detection at the right process moment improves sequence integrity and reduces quality escapes caused by timing uncertainty or missed events.
Fit for Demanding Machine Environments
Industrial sensing components are selected for stability under vibration, contamination, and repetitive duty where consumer-grade devices are not suitable.
Faster Commissioning and Replacement
Standardized sensor families simplify spare strategy, reduce replacement errors, and support quicker return to production after maintenance events.
Typical Applications
- Provides stable detection signals to PLC logic
- Improves sequence timing accuracy
- Reduces dependence on mechanical contact methods
- Supports high-cycle production operation
- Enables better fault isolation at machine stations
- Simplifies maintenance through standard sensor families
Buying Checklist
- Repeatable industrial detection behavior
- Designed for continuous machine duty
- Improves process timing confidence
- Serviceable and standardizable selection
- Reliable fit for automation sensing layers
Technical Specifications
| Model | ZX-EDR5T |
|---|---|
| Series | ZX |
| Type | Contact Probe for Measuring |
| Probe Type | Plunger type |
| Operating Force | 0.4N max |
| Probe Travel | 4mm |
| Repeatability | 0.5μm |
| Contact Material | Ruby tip |
| Cable Length | 2m |
| Protection | IP40 |
| Operating Temperature | 0 to +40°C |
| Compatible Amplifiers | ZX-EDR, ZX-G series |
Frequently Asked Questions
What is the measurement accuracy of this probe?
The ZX-EDR5T offers 0.5μm repeatability for precision measurement applications. Actual accuracy depends on the connected amplifier unit and calibration.
Which amplifiers are compatible with this probe?
The ZX-EDR5T is compatible with ZX-EDR series and ZX-G series digital amplifiers. Check amplifier specifications for channel count and measurement range compatibility.
What is the operating force required?
The maximum operating force is 0.4N, making it suitable for delicate workpieces. The low force prevents damage to sensitive parts during measurement.
How do I mount this contact probe?
Mount the probe using the provided mounting bracket or custom fixture. Ensure the probe axis is perpendicular to the measurement surface for accurate readings.
