Omron 3G3AX-MX2-ECT EtherCAT Communication Option for MX2 Drives

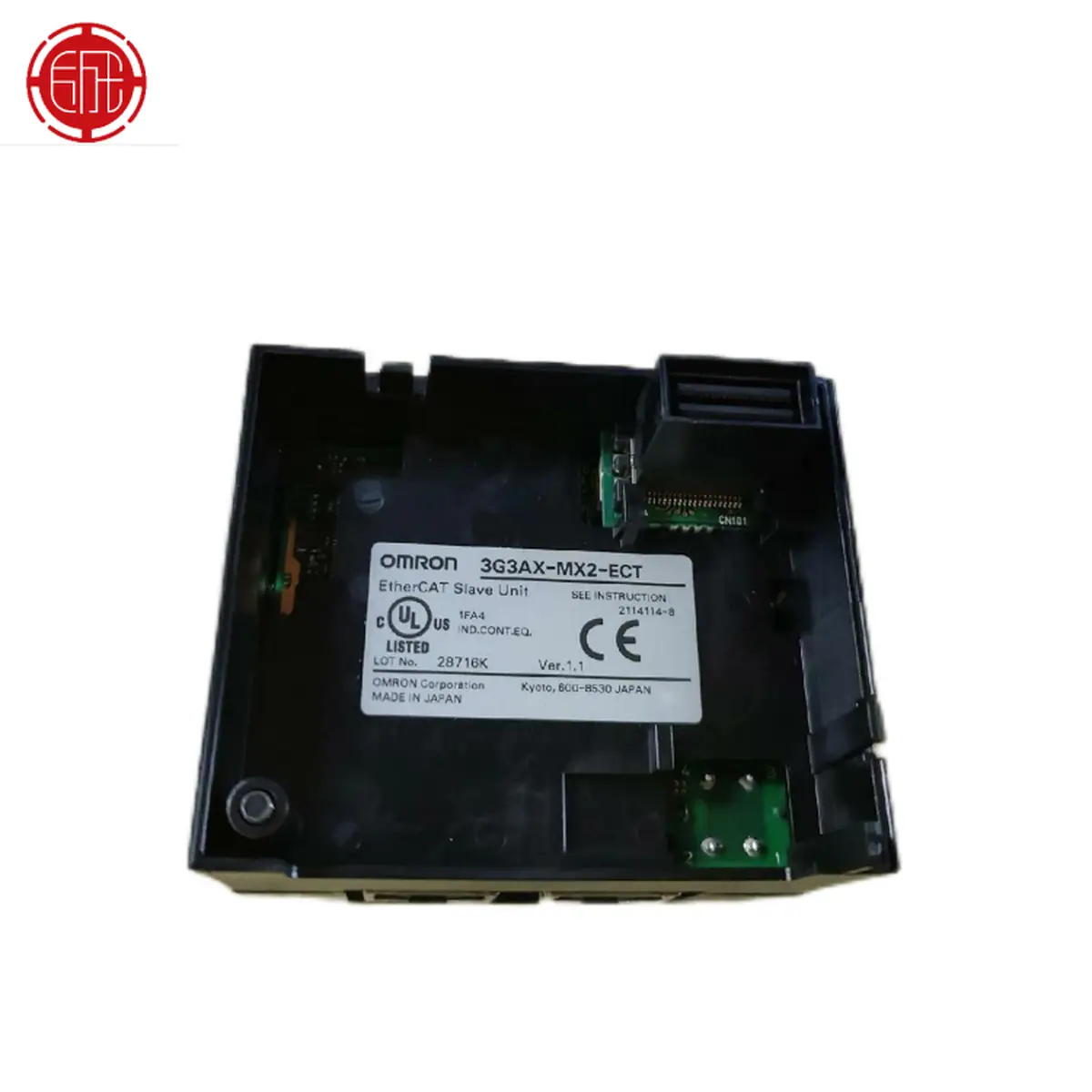

Omron 3G3AX-MX2-ECT EtherCAT Option Card

The Omron 3G3AX-MX2-ECT is an EtherCAT communication option card designed for MX2 series variable frequency drives, enabling high-speed network connectivity for modern automation systems. EtherCAT is a high-performance real-time industrial Ethernet protocol that provides extremely fast data exchange with minimal latency, making it ideal for applications requiring synchronized control of multiple drives. This option card installs easily into the MX2 drive expansion port, adding full EtherCAT connectivity without requiring external communication converters. The 3G3AX-MX2-ECT supports EtherCAT DS-402 profile for drives, enabling standard command interface for speed control, torque control, and position control applications. With EtherCAT, complex multi-axis coordinated motion systems can be achieved with precise synchronization between drives. The option card supports communication speeds up to 100 Mbps with cycle times as low as 100 microseconds, providing exceptional response for high-speed applications. Parameter configuration and monitoring are accomplished through the network, simplifying startup and maintenance. The 3G3AX-MX2-ECT is ideal for packaging machinery, converting equipment, printing presses, textile machines, and any application requiring coordinated multi-drive control with real-time network communication.
