Omron CJ1W-DA08C Analog Output Unit 8-Channel 4-20mA

Omron CJ1W-DA08C Analog Output Module

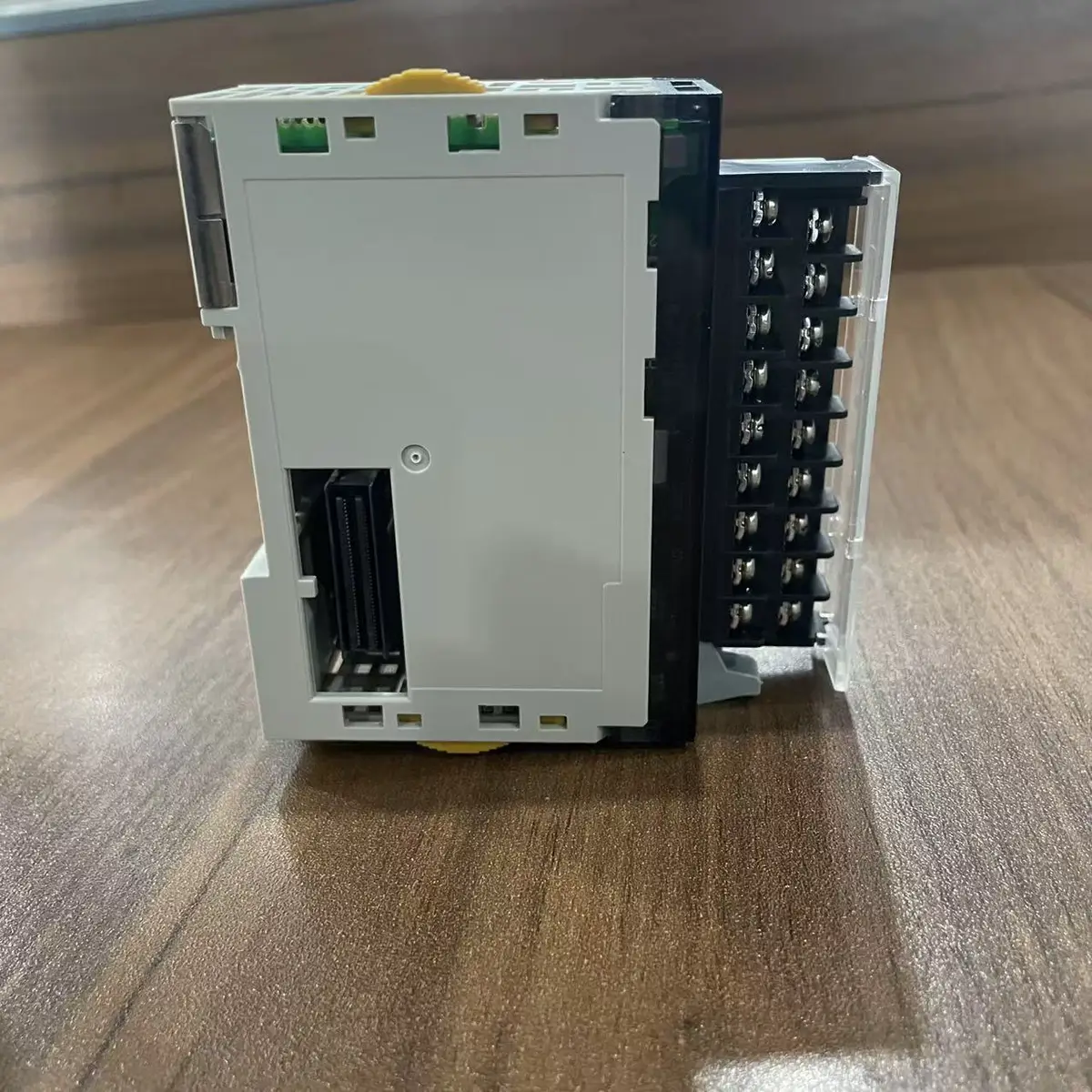

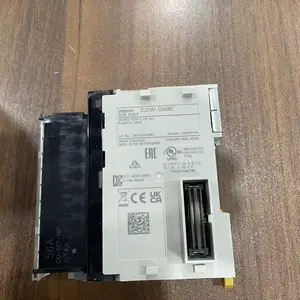

The Omron CJ1W-DA08C is an 8-channel analog output module designed for CJ1 series programmable logic controllers, providing precise analog current signals for process control and automation applications. This module outputs 4-20mA current signals, the industry standard for process control, suitable for controlling variable frequency drives, analog actuators, indicators, and other devices requiring current loop inputs. Each of the 8 channels provides independent output with 12-bit resolution, ensuring smooth and accurate control signals for precise process regulation. The CJ1W-DA08C connects directly to the CJ1 backplane, drawing operating power from the PLC power supply while providing isolated analog outputs. The module includes comprehensive protection features including short circuit protection on each output channel, safeguarding both the module and connected field devices. LED status indicators provide at-a-glance monitoring of output activity. Easy configuration is achieved through CX-Programmer, allowing straightforward setup of output ranges and scaling. The CJ1W-DA08C supports 4-20mA current output, making it compatible with a wide range of industrial control devices including transmitters, controllers, and indicators. Applications include process loop control, VFD speed control, valve position control, current-to-pressure transducers, and any application requiring multiple current output signals from the PLC.
