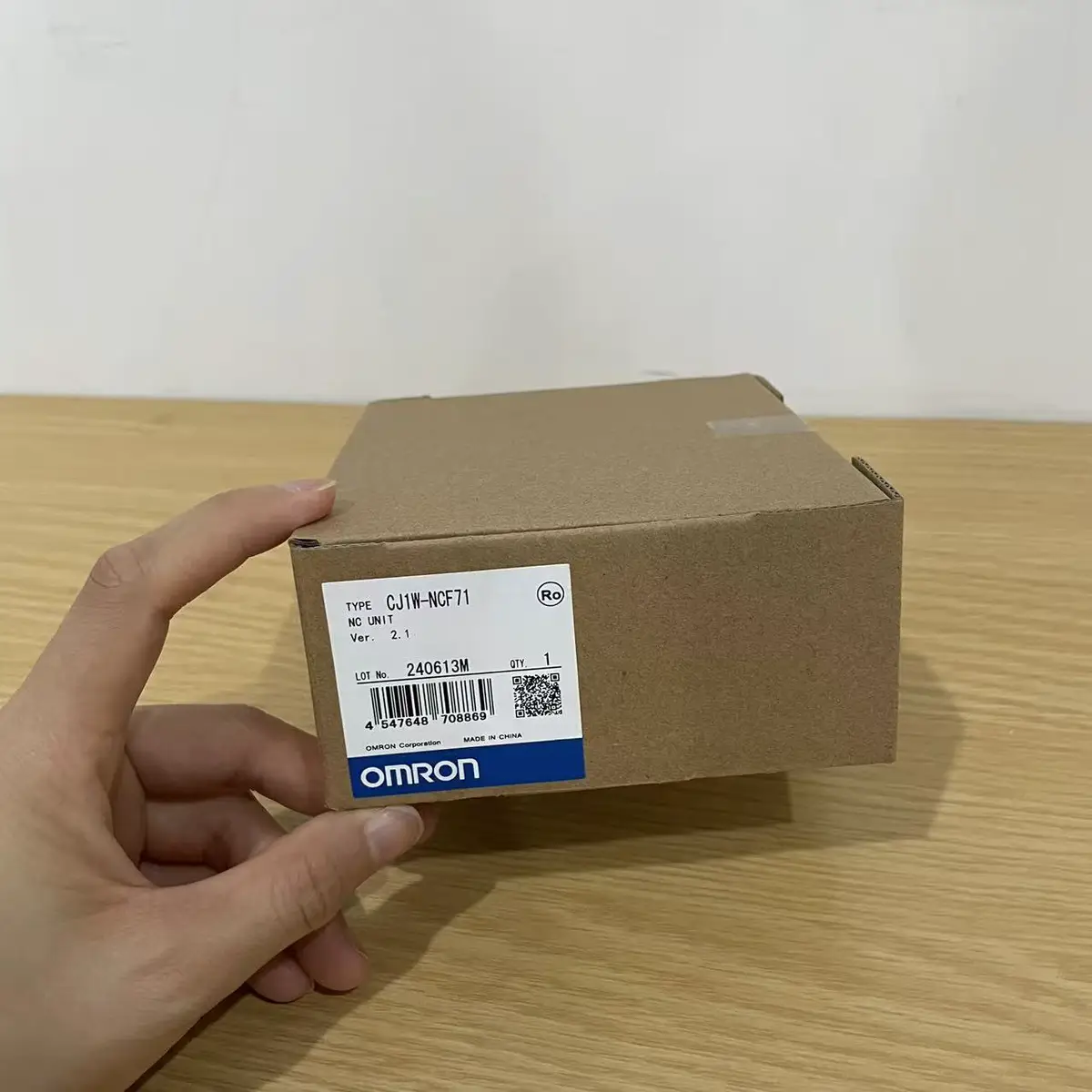

Omron CJ1W-NCF71 CJ Series Position Control Unit for Servo Systems

Omron CJ1W-NCF71 Position Control Module

The Omron CJ1W-NCF71 is a specialized position control module for CJ1 series programmable logic controllers, designed for precise positioning applications using servo drives. This module provides high-speed pulse train outputs for controlling servo drives with pulse input interfaces, enabling accurate position control for motion automation applications. The CJ1W-NCF71 supports control of up to 4 axes of positioning, with each axis capable of independent positioning sequences and parameter sets. The module features multiple positioning modes including point-to-point positioning, speed control, and linear interpolation for multi-axis coordination. With pulse output rates up to 500 kpps, this module supports high-speed positioning applications requiring fast response times. The CJ1W-NCF71 includes built-in home search functions and origin detection, simplifying machine setup and ensuring repeatable positioning. The module connects to servo drives via pulse and direction outputs, with support for various drive interfaces. LED status indicators provide at-a-glance monitoring of module status and axis activity. Configuration and programming are achieved through CX-Programmer, with dedicated positioning instructions for ladder logic programming. Applications include pick-and-place systems, indexing tables, cutting machines, packaging equipment, and any application requiring precise multi-axis positioning control.
