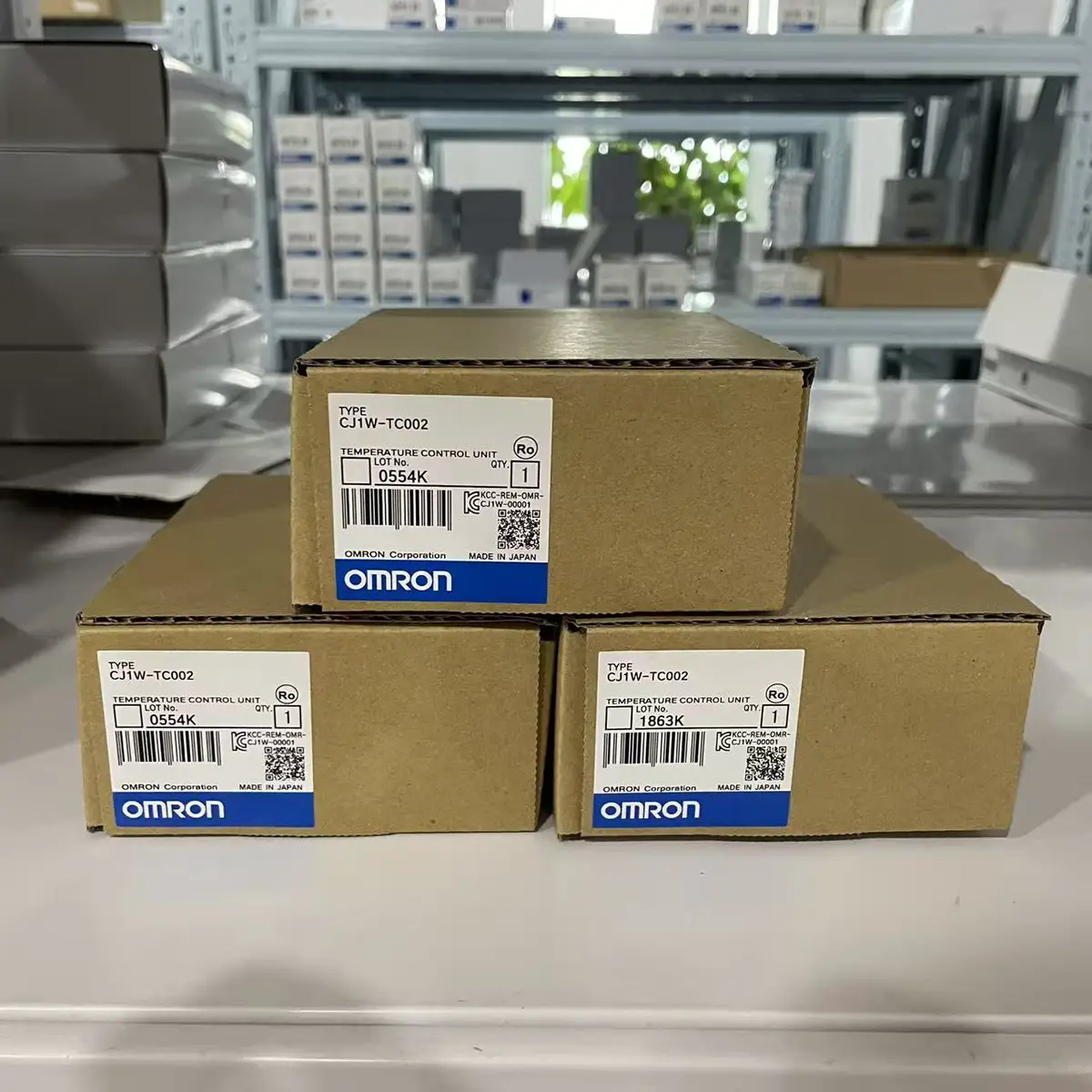

Omron CJ1W-TC002 CJ Series Thermocouple Input Unit 2-Channels

Omron CJ1W-TC002 Temperature Input Module

The Omron CJ1W-TC002 is a specialized temperature input module for CJ1 series PLCs, designed for precise temperature monitoring in industrial process applications. This module supports 2 channels of thermocouple input, accepting inputs from common thermocouple types including K, J, T, E, and N, providing flexibility for various temperature sensing requirements. The module features high-resolution analog-to-digital conversion, delivering temperature accuracy suitable for demanding process control applications. Each channel can be configured independently, allowing connection of different thermocouple types within the same module for maximum system flexibility. The CJ1W-TC002 performs automatic cold junction compensation, ensuring accurate measurements without external reference junctions. Digital filtering helps smooth noisy temperature signals, improving measurement stability for control system performance. The module connects to thermocouples using dedicated terminal connections, providing secure and organized wiring. Built-in open-circuit detection alerts the PLC when a thermocouple is disconnected or failed, preventing erroneous temperature readings. The CJ1W-TC002 communicates temperature data directly to the CJ1 CPU as digital values, eliminating the need for external signal converters. Applications include temperature monitoring in furnaces, ovens, process tanks, HVAC systems, food processing equipment, and any application requiring temperature data for control or logging.
