SKU: CJ2M-CPU13

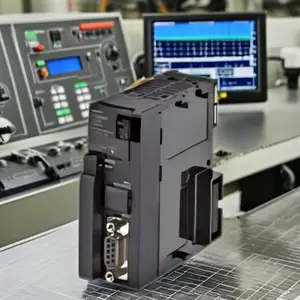

Omron CJ2M-CPU13 PLC CPU Unit 20K Steps USB Built-in Economy
Omron CJ2M-CPU13 is a CJ2M series PLC CPU unit with 20K program capacity, USB port for cost-effective machine automation without EtherNet/IP requirement.
USD 150.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Program Capacity: 20K steps
- Data Memory: 32K words
- Built-in Ports: USB
- Max I/O Points: 2560 points
- LD Instruction Time: 0.04μs
- Expandable Units: Up to 40 units
Scalable PLC Control Foundation for OEM and Retrofit Projects
The CJ2M-CPU13 fits industrial control projects that require dependable logic execution, maintainable programming workflows, and architecture growth over the equipment lifecycle. It supports standardized automation design across machine families while preserving serviceability in production environments.
Deterministic Logic and Sequence Control
This controller class supports predictable scan-driven execution for interlocks, sequencing, alarms, and coordinated device handling. Deterministic behavior is essential for consistent machine output and repeatable cycle performance.
Platform Reuse Across Equipment Variants
Standardizing on a proven PLC/controller family enables software reuse, reduced engineering lead time, and easier support across multiple machine models or production lines.
Lifecycle Service and Maintainability
A maintainable control architecture with documented I/O mapping, diagnostics, and modular expansion strategy reduces troubleshooting time and improves long-term ownership value.
Typical Applications
- Executes deterministic control logic
- Coordinates multi-device machine behavior
- Supports reusable software structures
- Improves fault diagnostics and recovery time
- Enables modular feature growth over time
- Standardizes control strategy across equipment
Buying Checklist
- Strong fit for scalable machine control
- Maintains deterministic automation behavior
- Supports long-term maintainability
- Good platform standardization candidate
- Reliable industrial controller ecosystem
Technical Specifications
| Model | CJ2M-CPU13 |
|---|---|
| Series | CJ2M |
| Type | PLC CPU Unit |
| Program Capacity | 20K steps |
| Data Memory | 32K words |
| Built-in Ports | USB |
| Max I/O Points | 2560 points |
| LD Instruction Time | 0.04μs |
| Expandable Units | Up to 40 units |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What's the difference between CPU13 and CPU33?
CPU13 has USB only (no built-in EtherNet/IP), while CPU33 has both USB and EtherNet/IP. Choose CPU13 for cost savings when Ethernet connectivity isn't needed, or add Ethernet via communication module if needed later.
Can I add Ethernet communication to CPU13?
Yes, add a CJ1W-EIP21 EtherNet/IP unit or CJ1W-ETN21 Ethernet unit to the CPU rack. This provides flexibility to add Ethernet only when needed while keeping initial costs lower.
Is CPU13 suitable for retrofitting older CJ1 systems?
Yes, CPU13 is fully compatible with CJ1 modules and offers a cost-effective upgrade path. The USB port makes programming easier than older CJ1 CPUs that required serial connections.
When should I choose CPU13 over CPU33?
Choose CPU13 when: budget is primary concern, no Ethernet needed, serial communication suffices, or Ethernet will be added via module. Choose CPU33 when built-in Ethernet is needed for HMI, SCADA, or data collection.
