SKU: CJ2M-CPU14

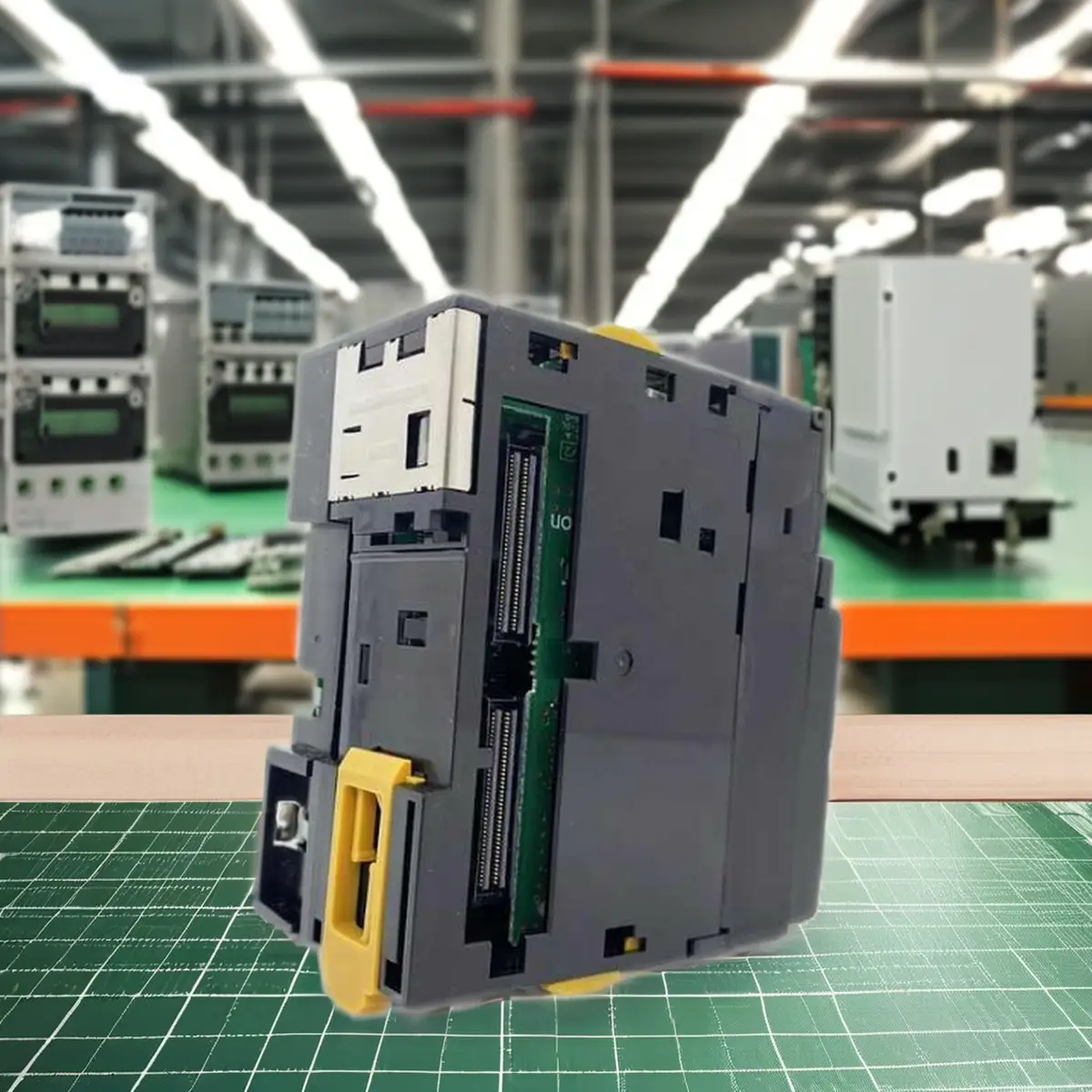

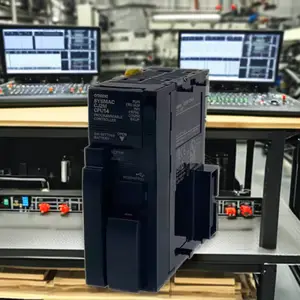

Omron CJ2M-CPU14 PLC CPU Unit 30K Steps USB Built-in
Omron CJ2M-CPU14 is a CJ2M series PLC CPU unit with 30K program capacity, USB port for medium-scale automation without EtherNet/IP requirement.
USD 215.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Program Capacity: 30K steps
- Data Memory: 32K words
- Built-in Ports: USB
- Max I/O Points: 2560 points
- LD Instruction Time: 0.04μs
- Expandable Units: Up to 40 units
Scalable PLC Control Foundation for OEM and Retrofit Projects
The CJ2M-CPU14 fits industrial control projects that require dependable logic execution, maintainable programming workflows, and architecture growth over the equipment lifecycle. It supports standardized automation design across machine families while preserving serviceability in production environments.
Deterministic Logic and Sequence Control
This controller class supports predictable scan-driven execution for interlocks, sequencing, alarms, and coordinated device handling. Deterministic behavior is essential for consistent machine output and repeatable cycle performance.
Platform Reuse Across Equipment Variants
Standardizing on a proven PLC/controller family enables software reuse, reduced engineering lead time, and easier support across multiple machine models or production lines.
Lifecycle Service and Maintainability
A maintainable control architecture with documented I/O mapping, diagnostics, and modular expansion strategy reduces troubleshooting time and improves long-term ownership value.
Typical Applications
- Executes deterministic control logic
- Coordinates multi-device machine behavior
- Supports reusable software structures
- Improves fault diagnostics and recovery time
- Enables modular feature growth over time
- Standardizes control strategy across equipment
Buying Checklist
- Strong fit for scalable machine control
- Maintains deterministic automation behavior
- Supports long-term maintainability
- Good platform standardization candidate
- Reliable industrial controller ecosystem
Technical Specifications
| Model | CJ2M-CPU14 |
|---|---|
| Series | CJ2M |
| Type | PLC CPU Unit |
| Program Capacity | 30K steps |
| Data Memory | 32K words |
| Built-in Ports | USB |
| Max I/O Points | 2560 points |
| LD Instruction Time | 0.04μs |
| Expandable Units | Up to 40 units |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What applications suit the CPU14?
Medium-scale machines without Ethernet requirements: standalone equipment, simple conveyor systems, basic packaging machines, and applications where serial HMI communication is sufficient.
Can I connect this to a modern touchscreen HMI?
Yes, via serial communication (RS-232C) using a CJ1W-SCU21-V1 serial module, or add Ethernet via CJ1W-EIP21 module for modern Ethernet-based HMIs.
Is this PLC still supported by Omron?
The CJ2M series is in production but some models are approaching end-of-life. For new designs, consider NX1P2 or CP2E series for long-term availability. Existing CJ2M installations will continue to be supported.
What's the typical lead time for this PLC?
Standard CJ2M CPUs are typically stocked by distributors with 1-2 week delivery. For large quantities or specific configurations, allow 4-6 weeks. Check with authorized Omron distributors for current availability.
