SKU: CJ2M-MD211

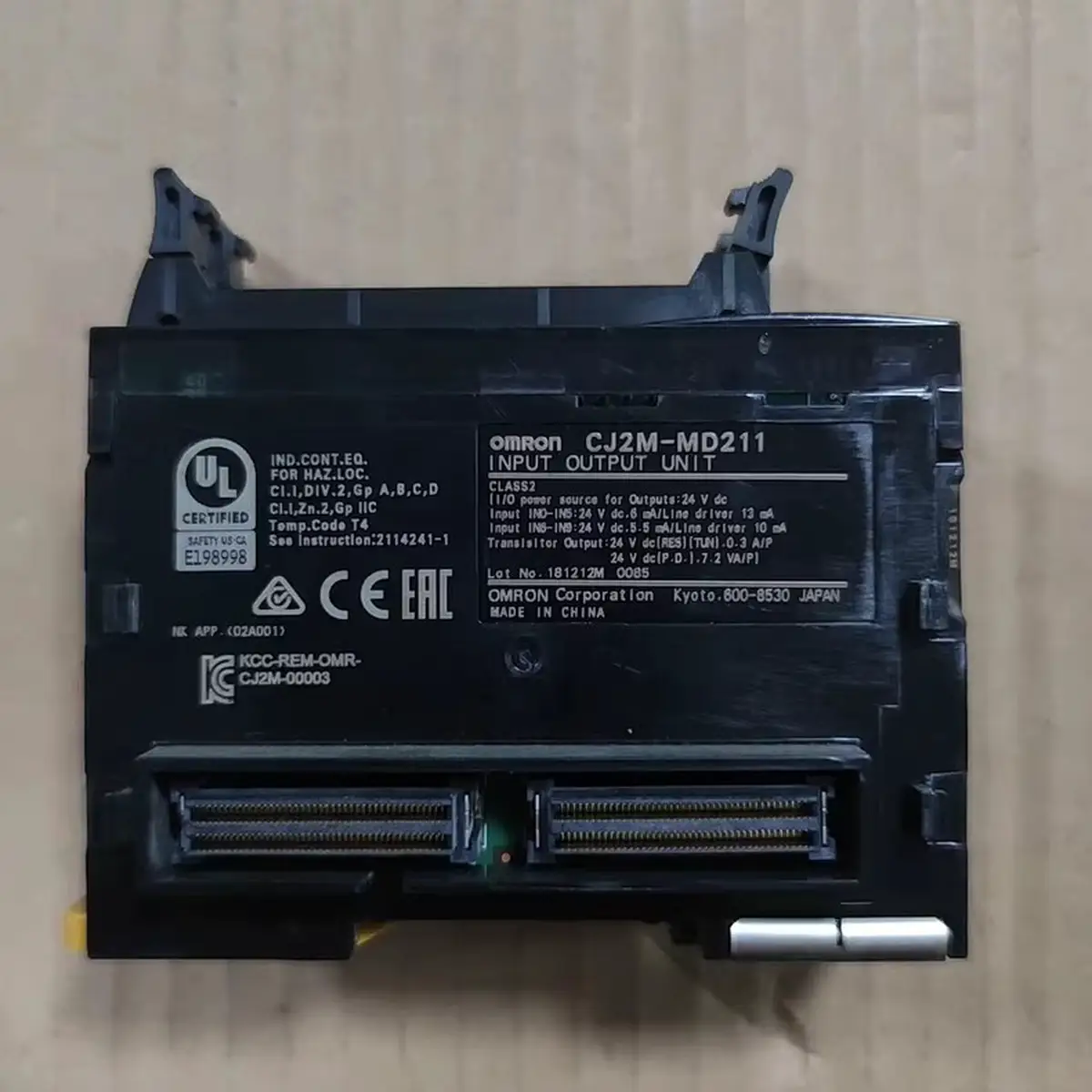

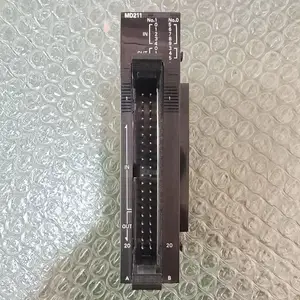

Omron CJ2M-MD211 Pulse I/O Module High-Speed Counter and PWM
Omron CJ2M-MD211 is a CJ2M expansion module providing high-speed pulse input/output functions for counting, positioning, and pulse-driven machine control.
USD 65.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Module series: CJ2M expansion unit
- Primary function: High-speed pulse I/O processing
- Input capability: High-speed counter class
- Output capability: Pulse/PWM-style control output class
- Use role: Motion-adjacent control tasks
- Host platform: Omron CJ2M PLC systems
High-Speed Pulse I/O Expansion for CJ2M Platforms
The CJ2M-MD211 extends CJ2M PLC capability for applications requiring fast pulse processing beyond standard discrete I/O behavior. It supports motion-adjacent tasks such as high-speed counting and pulse command generation.
Pulse-Oriented Control Functions
The module is suited for encoder pulse acquisition, frequency measurement, and pulse output use cases where deterministic timing matters.
Tighter Integration with Machine Dynamics
By handling high-speed events, the module improves control responsiveness for feeders, indexing tools, and basic positioning devices.
Scalable CJ2M System Architecture
It fits into modular CJ2M designs, enabling incremental performance upgrades without replacing the entire controller platform.
Typical Applications
- Captures fast pulses beyond standard DI scan limits
- Generates pulse outputs for compatible drives/devices
- Improves synchronization in cycle-critical equipment
- Enables incremental motion control upgrades
- Supports modular controller expansion
- Reduces need for standalone pulse hardware
Buying Checklist
- Adds high-speed pulse capability to CJ2M
- Useful for count and pulse-output tasks
- Supports scalable PLC architecture
- Improves machine timing precision
- Integrates with established Omron control stack
Technical Specifications
| Module series | CJ2M expansion unit |
|---|---|
| Model | CJ2M-MD211 |
| Primary function | High-speed pulse I/O processing |
| Input capability | High-speed counter class |
| Output capability | Pulse/PWM-style control output class |
| Use role | Motion-adjacent control tasks |
| Host platform | Omron CJ2M PLC systems |
| Integration | Encoder and pulse-driven device interfaces |
| Machine value | Improved timing responsiveness |
| Engineering note | Parameterization required per axis/process |
Frequently Asked Questions
When should CJ2M-MD211 be added to a PLC project?
Add it when pulse frequency or timing requirements exceed what standard digital I/O scanning can reliably handle.
Can it replace a dedicated motion controller?
It can cover many pulse-based tasks, but complex multi-axis synchronized motion may still require dedicated motion hardware.
What data should be validated first during startup?
Confirm pulse direction logic, scaling factors, and maximum expected frequency under real machine operation.
How does this affect long-term maintainability?
Using a native CJ2M module keeps architecture consolidated and easier to support than adding separate third-party pulse devices.
