SKU: CP1E-NA20DR-A

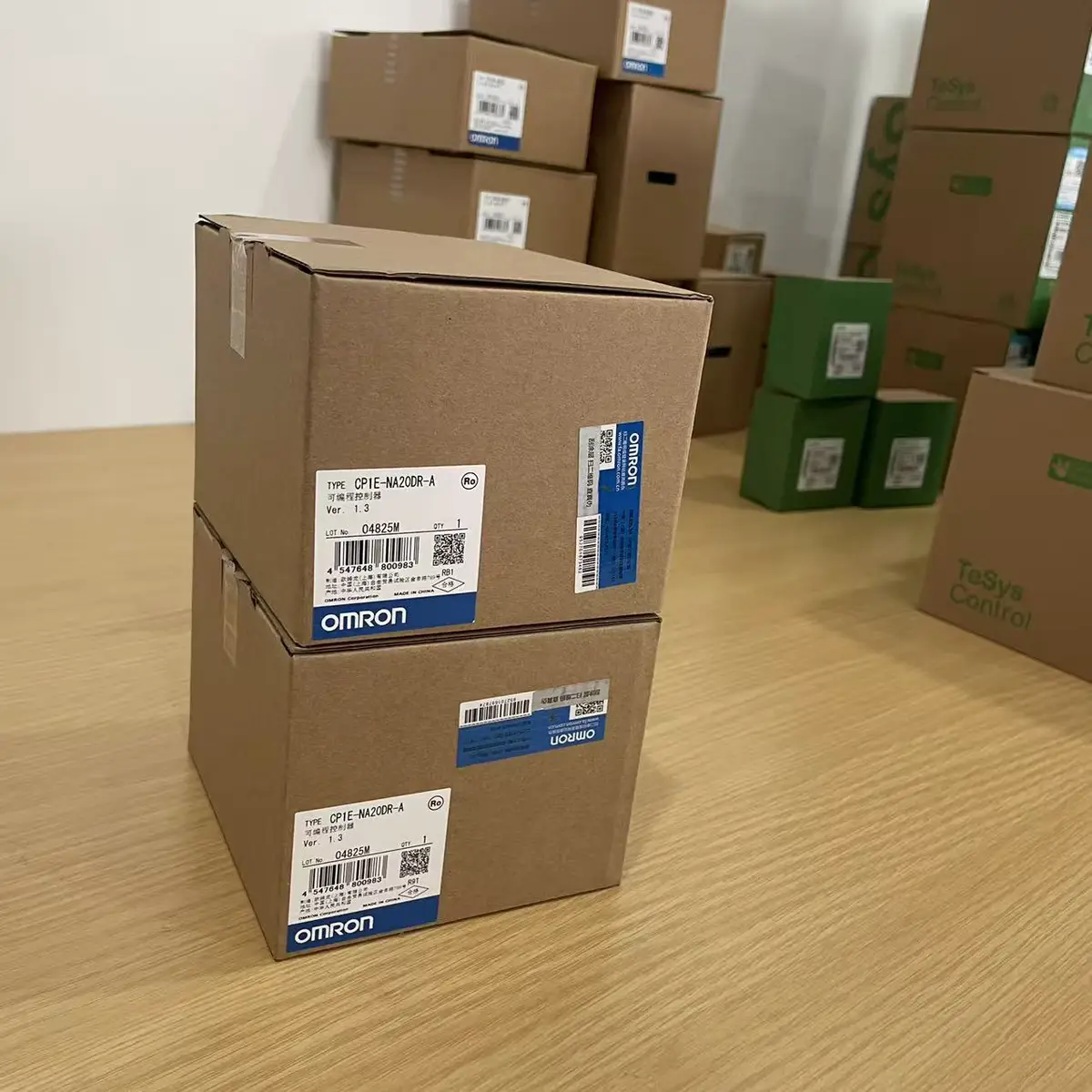

Omron CP1E-NA20DR-A Compact PLC with Analog I/O 20 I/O Relay
Omron CP1E-NA20DR-A is a CP1E-NA series compact PLC with 20 I/O points, built-in analog I/O, relay output for process control applications.
USD 170.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- CP1E compact PLC platform
- 20-point class I/O footprint
- Relay-output class for practical field load interfacing
- Suitable for compact sequence automation tasks
- Useful for OEM and retrofit entry-level applications
- Supports straightforward commissioning and maintenance workflow
Compact CP1E Control for Entry-Class Machine Sequencing
CP1E-NA20DR-A belongs to Omron CP1E family and is selected for compact machine applications requiring practical sequence control with maintainable panel integration. This model is often used in standalone equipment, utility functions, and retrofit upgrades where simplicity and reliability are priorities. Relay-output class behavior supports broad compatibility with common field interfaces in entry-level automation systems. Engineering teams should validate signal list fit, response requirements, expansion roadmap, and communication needs before finalizing hardware selection. Commissioning should include complete I/O testing, startup sequence verification, and abnormal-condition response checks. CP1E-NA20DR-A is generally chosen for robust, cost-effective control in small industrial machine platforms.
Typical Applications
- Compact standalone machine control
- Utility panel sequence automation
- Retrofit replacement of older compact PLCs
- Conveyor and handling logic tasks
- Interlock and timer-based machine control
- Entry-level OEM machine platform standardization
Buying Checklist
- Validate I/O count and output behavior against machine requirements.
- Confirm relay-output suitability for switching duty profile.
- Plan future expansion before hardware freeze.
- Ensure programming/maintenance toolchain readiness.
- Maintain spare CPU policy for uptime-critical assets.
Technical Specifications
| Model | CP1E-NA20DR-A |
|---|---|
| Series | CP1E-NA |
| Type | Compact PLC with Analog I/O |
| Total I/O Points | 20 points (12 input, 8 output) |
| Analog Inputs | 4 channels (voltage/current) |
| Analog Outputs | 2 channels (voltage/current) |
| Output Type | Relay |
| Power Supply | AC100-240V |
| Program Capacity | 5K steps |
| Operating Temperature | 0 to +55°C |
| Software | CX-Programmer |
Frequently Asked Questions
What's the advantage of built-in analog I/O?
No need for separate analog units. Cost-effective for applications needing both digital and analog I/O. 4 analog inputs + 2 analog outputs built-in.
What analog signals can this PLC accept?
Voltage: 0-10V, ±10V. Current: 0-20mA, 4-20mA. Configure per channel via DIP switches and software. Suitable for most industrial sensors and actuators.
Can I use this for temperature control?
Yes, with external temperature transmitter (4-20mA or 0-10V output). PLC reads temperature, calculates PID, controls heater via analog output or relay.
What's the analog resolution?
1/6000 for analog inputs, 1/4000 for analog outputs. Sufficient for most process control applications. Accuracy: ±0.3% full scale.
