SKU: CP1L-M30DR-A

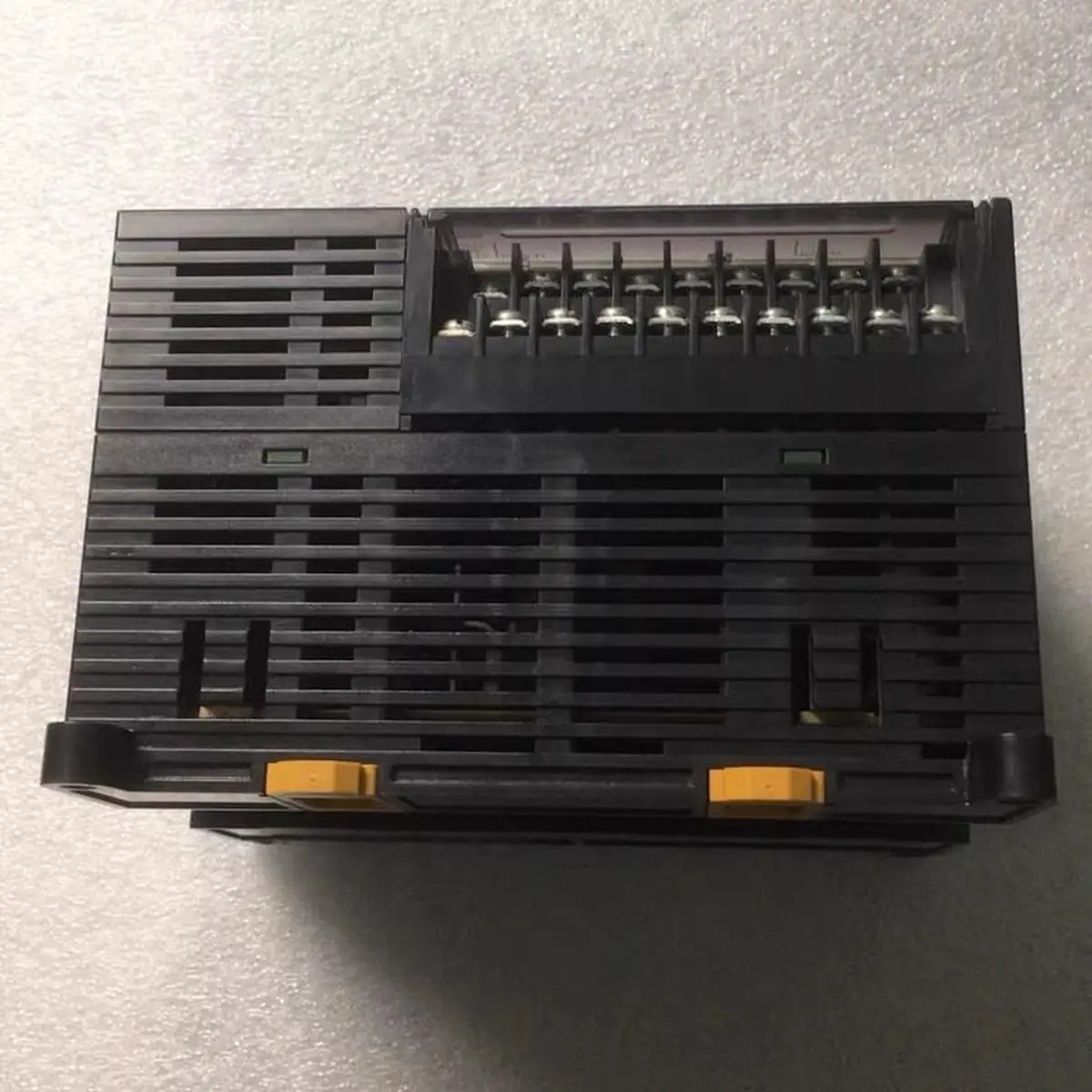

Omron CP1L-M30DR-A Compact PLC CPU Unit 30 I/O Relay Output
Omron CP1L-M30DR-A is a compact PLC with 30 onboard I/O and relay outputs, designed for small machine automation and reliable sequence control.
USD 160.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Controller family: Omron CP1L
- Total onboard I/O: 30 points
- Output type: Relay outputs
- Use case: Compact machine sequence control
- Programming style: PLC ladder/structured control workflows
- Mounting: Control panel DIN rail/enclosure
Compact PLC Control for Small to Mid-Size Machines
The CP1L-M30DR-A combines CPU, power section, and built-in I/O in a compact housing to simplify control panel design. It is widely used by OEMs for conveyor cells, assembly fixtures, and process auxiliaries where dependable ladder logic execution is required.
Integrated 30-Point I/O Architecture
With onboard digital inputs and relay outputs, this CPU reduces wiring and module count in small cabinets. Relay outputs support flexible load interfacing for contactors, lamps, and valve coils where isolated switching is needed.
Maintainable PLC Programming Workflow
CP1L controllers fit standard industrial PLC engineering practices, allowing technicians to troubleshoot and modify machine sequences without re-architecting control logic. This reduces lifecycle service cost for installed equipment.
Practical Expansion Path
The platform can be combined with expansion options and communication accessories depending on machine complexity, making it suitable for both new builds and incremental retrofits.
Typical Applications
- Runs deterministic interlock and step logic
- Switches mixed field loads through relay outputs
- Coordinates sensors, alarms, and operator commands
- Supports service-friendly machine upgrades
- Provides compact PLC core for OEM cabinets
- Improves maintainability versus custom relay logic
Buying Checklist
- Compact all-in-one PLC reduces panel footprint
- Relay outputs offer broad field-device compatibility
- Proven Omron platform with strong service familiarity
- Suitable for both new machines and retrofits
- Scalable path for future feature expansion
Technical Specifications
| Controller family | Omron CP1L |
|---|---|
| Model | CP1L-M30DR-A |
| Total onboard I/O | 30 points |
| Output type | Relay outputs |
| Use case | Compact machine sequence control |
| Programming style | PLC ladder/structured control workflows |
| Mounting | Control panel DIN rail/enclosure |
| Service life value | Widely maintainable OEM PLC platform |
| Typical loads | Pilot relays, indicators, solenoids |
| Integration | Sensors, HMIs, and drive command logic |
Frequently Asked Questions
Which machine types get the most value from CP1L-M30DR-A?
It is best suited for compact automation equipment such as small conveyors, assembly fixtures, and standalone process modules where 30 onboard I/O is sufficient.
If I currently use hardwired relays, what is the migration benefit?
A PLC-based sequence improves diagnostics, reduces rewiring for logic changes, and makes future process adjustments significantly easier.
Are relay outputs a limitation for automation panels?
For many small and mixed-load panels they are an advantage, because relay contacts can switch diverse voltage types with good isolation.
What is a practical commissioning tip for this CPU?
Create an I/O map and alarm-state test checklist before startup. It shortens debug time and improves handover quality.
