SKU: CP1E-N40SDR-A

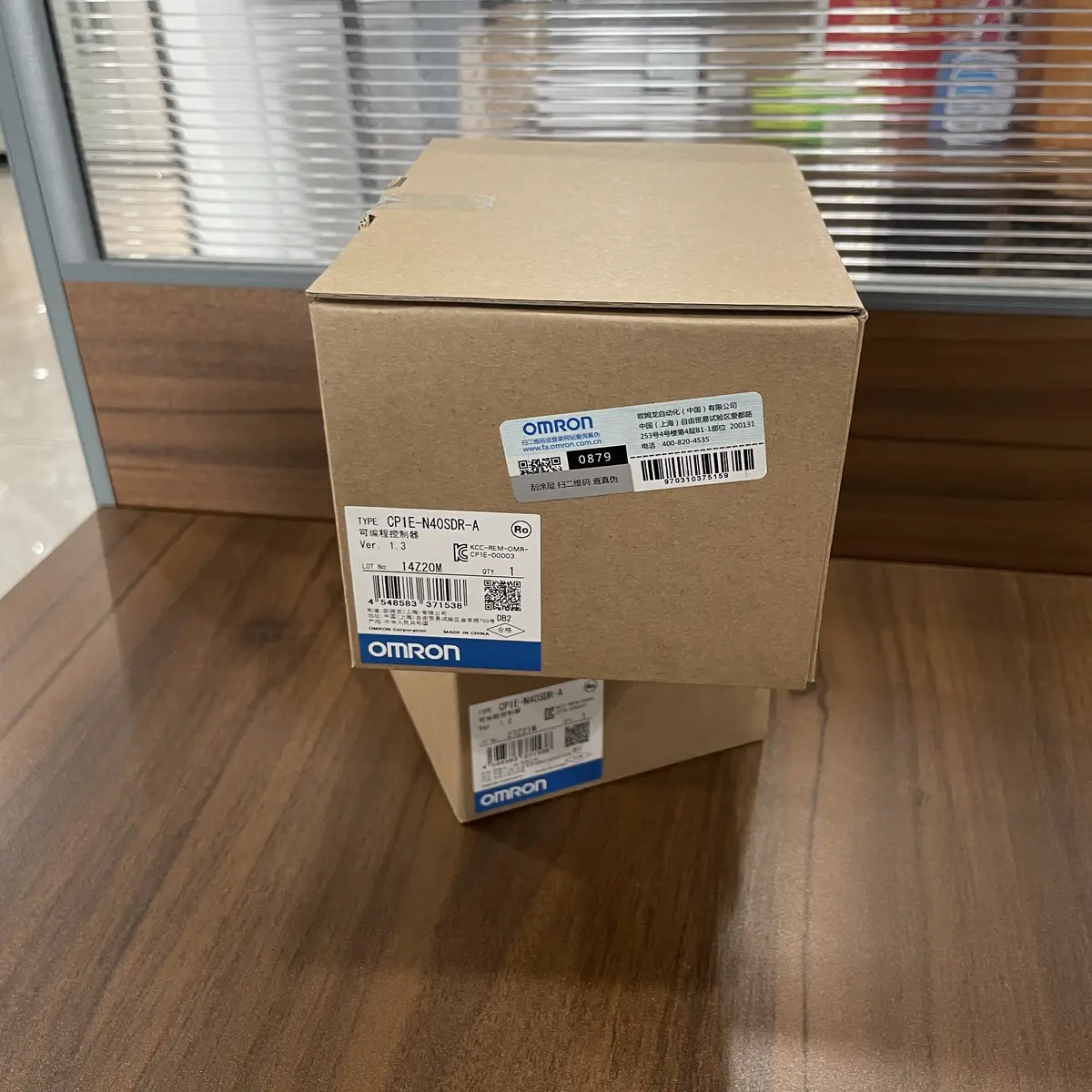

Omron CP1E-N40SDR-A Compact PLC 40 I/O Relay Output AC Power
Omron CP1E-N40SDR-A is a CP1E-N series compact PLC with 40 total I/O points (24 input, 16 relay output), AC power supply for cost-effective small machine control.
USD 120.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- CP1E-N series compact PLC
- 40 built-in I/O points (24 inputs / 16 relay outputs)
- High-speed basic instruction execution
- Expandable architecture for additional I/O
- Suitable for cost-sensitive machine control
Cost-Effective Compact PLC for Small Machines
CP1E-N40SDR-A belongs to Omron's CP1E-N PLC family and is widely used in small to mid-range standalone machine control. Official Omron CP1E information highlights high-speed basic instruction performance, built-in pulse outputs for simple motion needs, and expansion up to larger I/O counts depending on module selection. This model is commonly chosen for compact control panels where a balance of capability, simplicity, and cost is required.
Typical Applications
- Standalone compact machines and utility equipment
- Panel upgrades replacing older compact PLC generations
- Simple sequence control with occasional pulse output requirements
Buying Checklist
- Check whether relay outputs match required switching speed and lifetime in your load profile.
- Confirm expansion and communication needs early to avoid outgrowing base hardware.
- Validate required memory and scan-time against sequence complexity.
Technical Specifications
| Model | CP1E-N40SDR-A |
|---|---|
| Series | CP1E-N |
| Type | Compact PLC CPU Unit |
| Total I/O Points | 40 points (24 input, 16 output) |
| Input Points | 24 digital inputs (24VDC) |
| Output Points | 16 relay outputs |
| Output Type | Relay (SPST-NO) |
| Power Supply | AC100-240V 50/60Hz |
| Program Capacity | 5K steps |
| Data Memory | 2.5K words |
| High-Speed Counter | 100kHz 1-axis |
| Pulse Output | 100kHz 1-axis |
| Analog I/O | Not built-in (expandable) |
| Communication Ports | RS-232C (option board) |
| Operating Temperature | 0 to +55°C |
| Dimensions | 150 x 90 x 85mm |
| Mass | Approx. 660g |
Frequently Asked Questions
What's the difference between CP1E-N, CP1E-E, and CP1L series?
CP1E-N: Basic model with essential features, most economical. CP1E-E: Enhanced with built-in analog I/O and more communication options. CP1L: Higher performance with faster processing, more I/O capacity, and Ethernet options. Choose based on application complexity and budget.
Can I expand the I/O points on this PLC?
Yes, CP1E-N supports up to 3 expansion I/O units, adding up to 60 additional I/O points. Available expansion units include digital I/O, analog I/O, and temperature sensor units.
What type of loads can the relay outputs switch?
Relay outputs can switch up to 2A per point at 250VAC or 24VDC. Suitable for contactors, small motors, solenoids, and indicator lamps. For higher current or faster switching, consider transistor output models.
Is this PLC suitable for positioning applications?
Yes, the CP1E-N has one 100kHz pulse output axis for basic stepper or servo motor control. Suitable for single-axis positioning like conveyor indexing or simple pick-and-place. For multi-axis motion, consider CP1L or CJ2M series.
What programming software is required?
CX-Programmer (part of CX-One suite) is required. A USB cable connects to the built-in USB port for programming and monitoring. CX-Programmer supports ladder diagram, instruction list, and structured text programming.
