SKU: CP1H-XA40DR-A

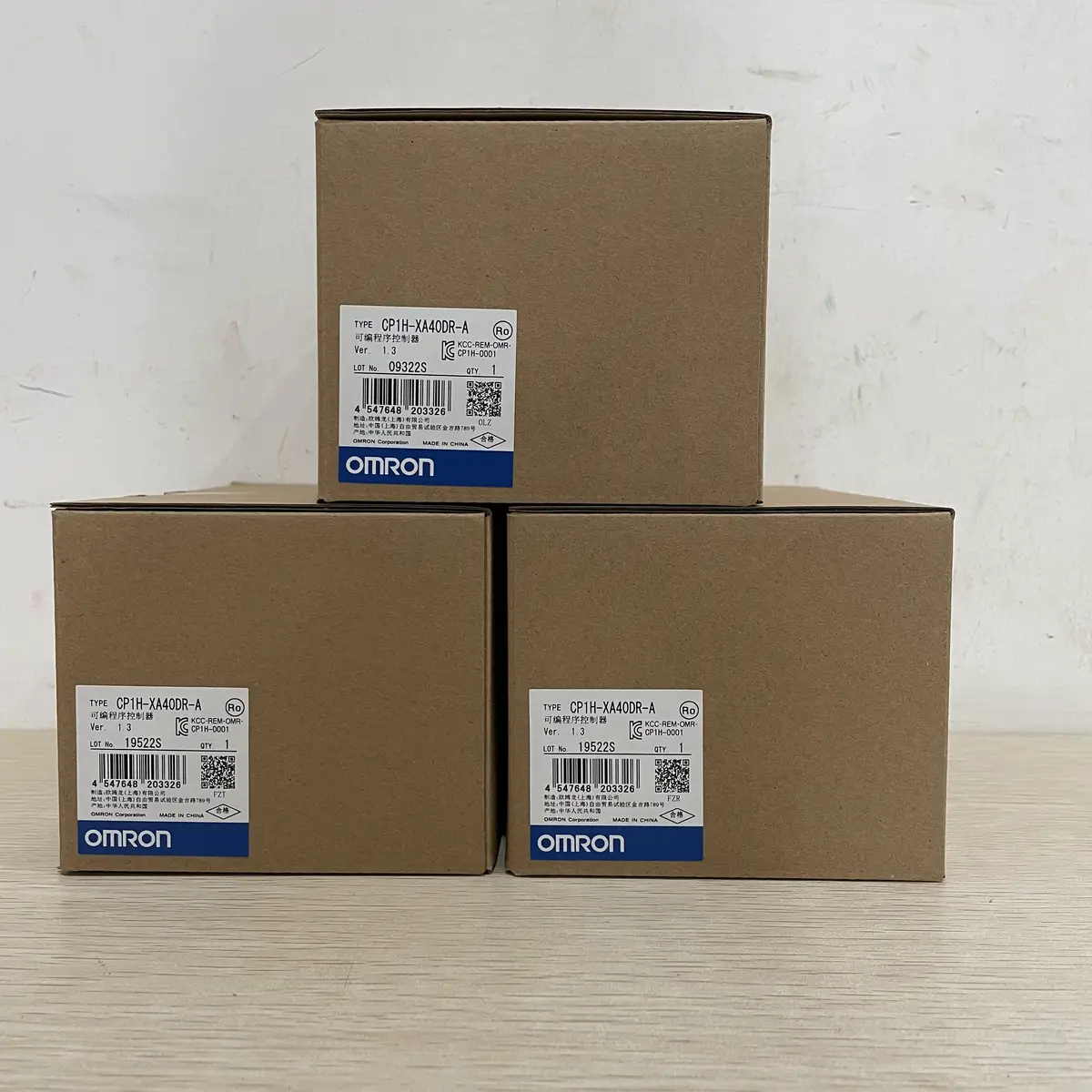

Omron CP1H-XA40DR-A Compact PLC 40 I/O Relay Output with Analog
Omron CP1H-XA40DR-A is a CP1H-XA series high-performance PLC with 40 I/O points, built-in analog I/O, relay output for process control.
USD 228.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Total I/O Points: 40 points
- Analog Inputs: 4 channels
- Analog Outputs: 2 channels
- Output Type: Relay
- Power Supply: AC100-240V
- Program Capacity: 10K steps
Scalable PLC Control Foundation for OEM and Retrofit Projects
The CP1H-XA40DR-A fits industrial control projects that require dependable logic execution, maintainable programming workflows, and architecture growth over the equipment lifecycle. It supports standardized automation design across machine families while preserving serviceability in production environments.
Deterministic Logic and Sequence Control
This controller class supports predictable scan-driven execution for interlocks, sequencing, alarms, and coordinated device handling. Deterministic behavior is essential for consistent machine output and repeatable cycle performance.
Platform Reuse Across Equipment Variants
Standardizing on a proven PLC/controller family enables software reuse, reduced engineering lead time, and easier support across multiple machine models or production lines.
Lifecycle Service and Maintainability
A maintainable control architecture with documented I/O mapping, diagnostics, and modular expansion strategy reduces troubleshooting time and improves long-term ownership value.
Typical Applications
- Executes deterministic control logic
- Coordinates multi-device machine behavior
- Supports reusable software structures
- Improves fault diagnostics and recovery time
- Enables modular feature growth over time
- Standardizes control strategy across equipment
Buying Checklist
- Strong fit for scalable machine control
- Maintains deterministic automation behavior
- Supports long-term maintainability
- Good platform standardization candidate
- Reliable industrial controller ecosystem
Technical Specifications
| Model | CP1H-XA40DR-A |
|---|---|
| Series | CP1H-XA |
| Total I/O Points | 40 points |
| Analog Inputs | 4 channels |
| Analog Outputs | 2 channels |
| Output Type | Relay |
| Power Supply | AC100-240V |
| Program Capacity | 10K steps |
| High-Speed Counter | 100kHz 4-axis |
| Pulse Output | 100kHz 4-axis |
| Expansion | Up to 7 expansion units |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What's the advantage of XA series?
Built-in analog I/O (4 inputs + 2 outputs) plus digital I/O. Cost-effective for applications needing both. No separate analog units required.
Can I use this for temperature control?
Yes, common application. Read temperature via analog input (from transmitter), calculate PID, control heater via relay or analog output. Built-in PID instructions.
What analog signals are supported?
Voltage: 0-10V, ±10V. Current: 0-20mA, 4-20mA. Configure per channel via DIP switches and software. Resolution: 1/6000 input, 1/4000 output.
Can I expand analog I/O?
Yes, add CP1W analog expansion units for more analog channels. Built-in analog plus expansion units for large analog I/O requirements.
