SKU: CP1W-TS001

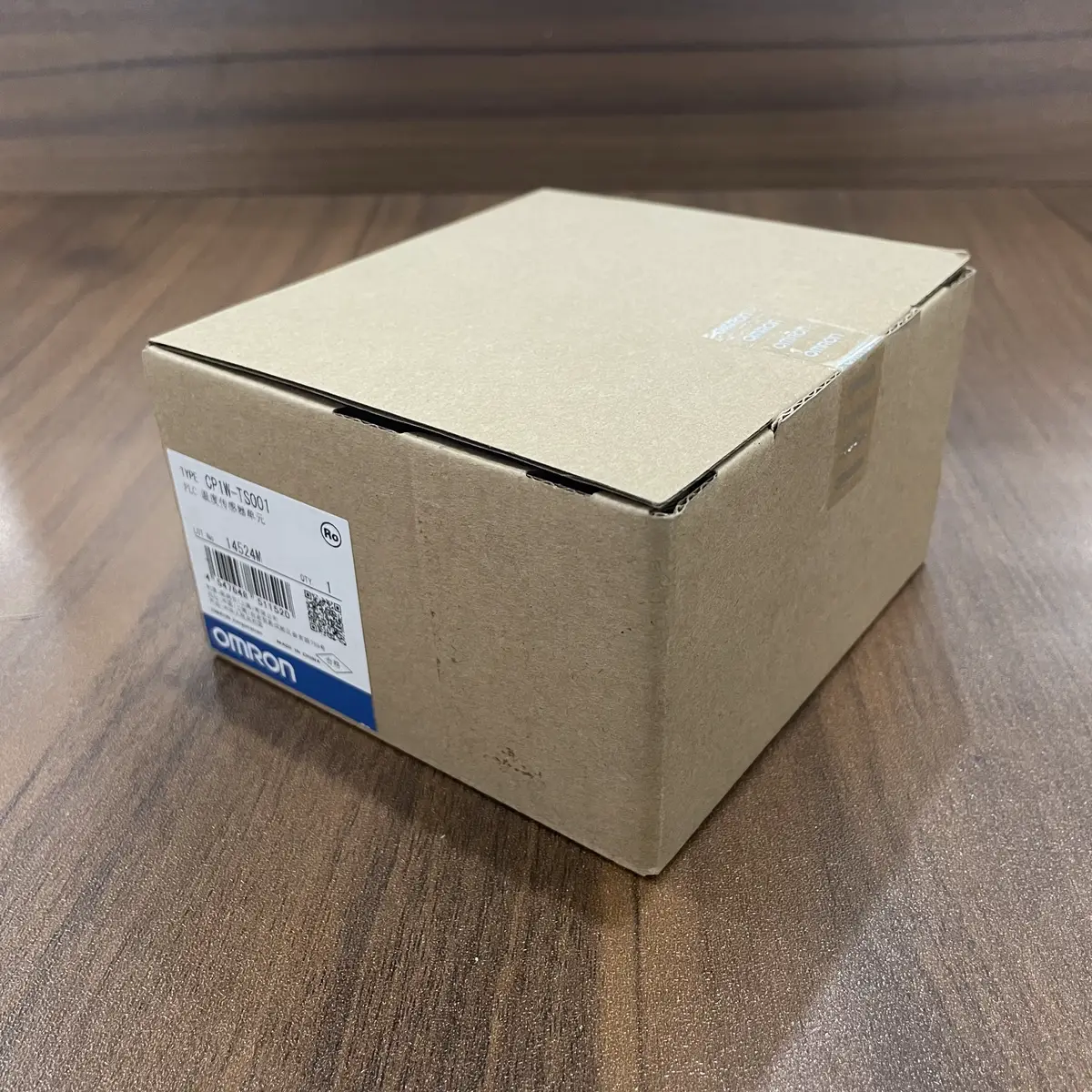

Omron CP1W-TS001 Thermocouple Input Unit 2-Channel
Omron CP1W-TS001 is a 2-channel thermocouple input expansion unit for CP1 series PLCs, with cold junction compensation.
USD 90.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Thermocouple input expansion for CP1 PLC architectures
- Supports direct temperature feedback into PLC control logic
- Suitable for heating, sealing, and thermal process monitoring
- Helps improve product quality through temperature visibility
- Useful for both new machine design and retrofit upgrades
- Practical module for standardized thermal control workflows
Temperature Input Expansion for CP1 Thermal Control Applications
The CP1W-TS001 adds thermocouple measurement capability to CP1-based systems where direct thermal feedback is required for process stability. It is used in packaging, heaters, and utility equipment to monitor critical temperature points within PLC logic. This module supports cleaner architecture by integrating thermal sensing directly into the control platform and simplifies lifecycle maintenance in installed systems.
Typical Applications
- Monitoring heater blocks in packaging systems
- Reading oven zone temperature in process lines
- Controlling thermal setpoints in sealing machines
- Adding temperature feedback in CP1 retrofit panels
- Improving alarm logic for thermal deviations
- Standardizing thermocouple integration across OEM machines
Buying Checklist
- Direct CP1 integration reduces architecture complexity
- Improves thermal control consistency and quality outcomes
- Good fit for incremental upgrades of existing CP1 lines
- Practical lifecycle replacement for installed systems
- Supports maintainable PLC-based thermal monitoring
Technical Specifications
| Model | CP1W-TS001 |
|---|---|
| Series | CP1W |
| Type | Thermocouple Input Unit |
| Input Channels | 2 channels |
| Input Types | K, J, T, E, L, U, N, R, S, B, PLII |
| Temperature Range | -200 to +1800°C (depends on TC type) |
| Resolution | 0.1°C or 0.1°F |
| Accuracy | ±0.5% full scale ±1 digit |
| Conversion Time | 500ms per channel |
| Cold Junction Compensation | Automatic (internal) |
| Connection | Removable terminal block |
| Current Consumption | 100mA at 5VDC |
| Compatible CPUs | CP1E, CP1L, CP1H |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What thermocouple types are supported?
K (most common, -200 to +1200°C), J (-200 to +900°C), T (-200 to +400°C), E, L, U, N, R, S, B, PLII. Select type in configuration.
Do I need external cold junction compensation?
No, CP1W-TS001 has built-in cold junction compensation. Unit measures terminal block temperature and compensates automatically.
What wire should I use?
Use thermocouple extension wire (same type as sensor) or copper wire for short runs. Keep wire away from noise sources.
How accurate is this measurement?
±0.5% of full scale ±1 digit. For K-type (0-1000°C): approximately ±5°C accuracy. For higher accuracy, consider platinum resistance (Pt100) input.
