SKU: E32-DC200

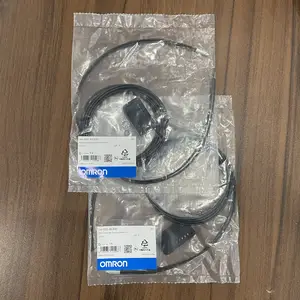

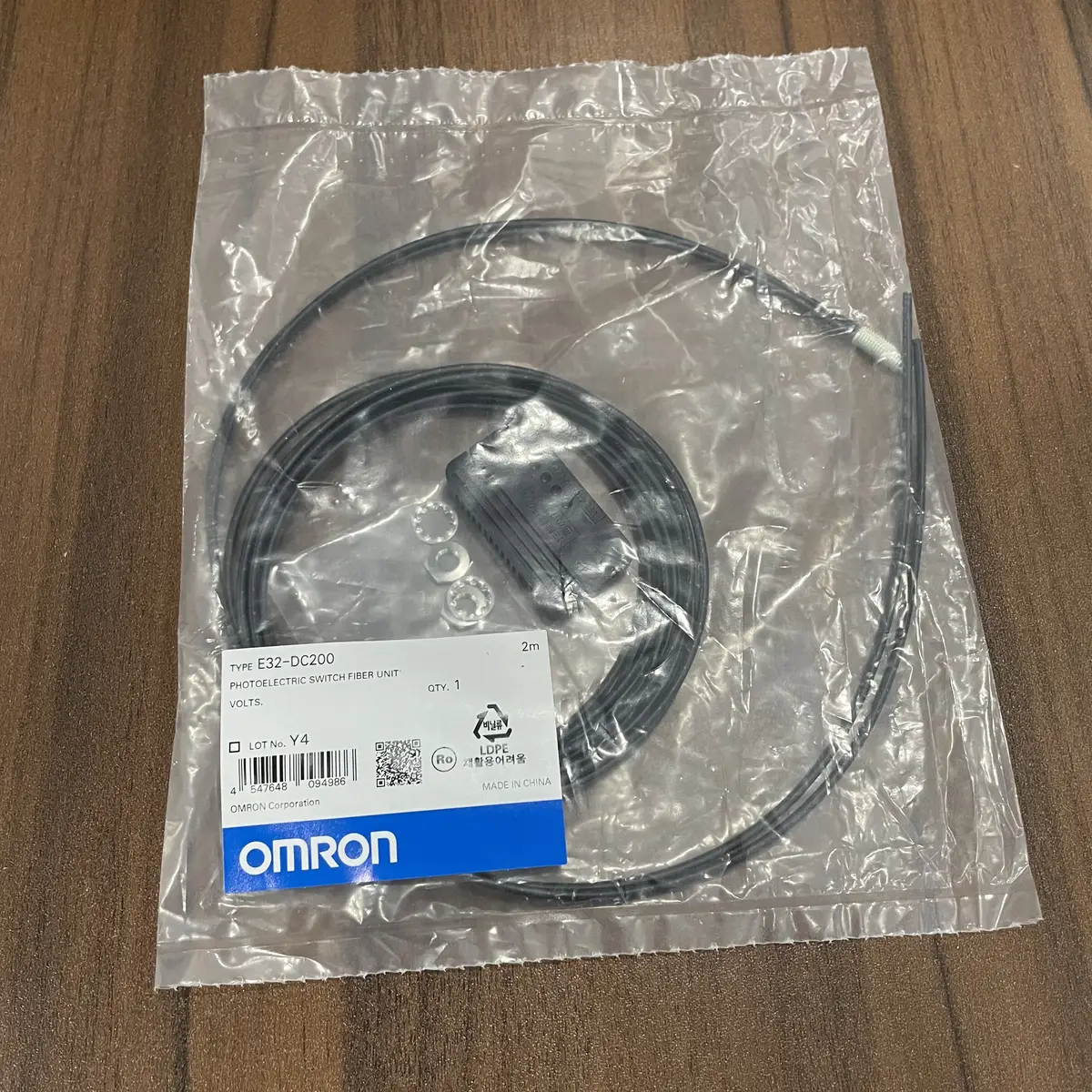

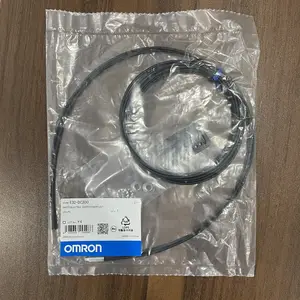

Omron E32-DC200 Diffuse Fiber Optic Cable
Omron E32-DC200 is a diffuse reflective fiber optic cable for use with fiber amplifiers in proximity detection applications.
USD 11.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Diffuse reflective sensing
- 70mm sensing distance
- M4 thread mounting
- Plastic fiber construction
- Compatible with E3X amplifiers
- Flexible routing capability
- Compact sensing tip
Omron E32-DC200 Fiber Optic Cable
The Omron E32-DC200 is a diffuse reflective fiber optic cable designed for use with E3X series fiber optic sensor amplifiers. This fiber optic probe provides a sensing distance of 70mm in diffuse mode, making it suitable for detecting targets within a relatively short range. The E32-DC200 features a standard M4 thread housing that allows for flexible mounting using standard M4 nuts or optional mounting brackets. The fiber optic cable is constructed with a plastic fiber core suitable for general-purpose detection applications. This fiber is ideal for use in environments where the sensor amplifier cannot be placed directly at the detection point, as the flexible fiber optic cable can be routed around obstacles. The E32-DC200 is commonly used in packaging machinery, electronics assembly, and other applications requiring detection in confined or challenging locations.
Typical Applications
- Diffuse detection in confined spaces
- Small part detection
- Electronics assembly
- Packaging machinery
- Label detection
- Object presence sensing
- Tight space installations
Buying Checklist
- 70mm detection range suitable for many apps
- M4 thread for standard mounting
- Flexible routing around obstacles
- IP68 rated fiber for harsh environments
- Compatible with E3X amplifier series
- Proven Omron fiber quality
- Cost-effective fiber solution
Technical Specifications
| Model | E32-DC200 |
|---|---|
| Series | E32 |
| Type | Diffuse Fiber Optic Cable |
| Fiber Type | Diffuse reflective |
| Head Size | Standard |
| Cable Length | 2m |
| Sensing Distance | Up to 100mm |
| Operating Temperature | -55 to +80°C |
| Amplifier | Requires E3X series amplifier |
| Material | Stainless steel head |
Frequently Asked Questions
What's diffuse reflective fiber?
Emitter and receiver fibers bundled together. Light emitted, reflects off target, returns to receiver. No separate reflector needed. Simpler installation than through-beam.
What's the sensing distance?
Up to 100mm depending on target reflectivity. White targets: maximum distance. Black targets: reduced distance. Adjust amplifier sensitivity accordingly.
Can I use this for liquid level detection?
Yes, diffuse fiber can detect liquid surface. Mount fiber above liquid level. When liquid rises, reflection changes, triggering output.
How do I clean fiber optic cables?
Use soft cloth with alcohol. Don't use abrasive cleaners. Keep fiber ends clean for best performance. Dirty fiber ends reduce sensing distance.
