SKU: E32-CC200 2M

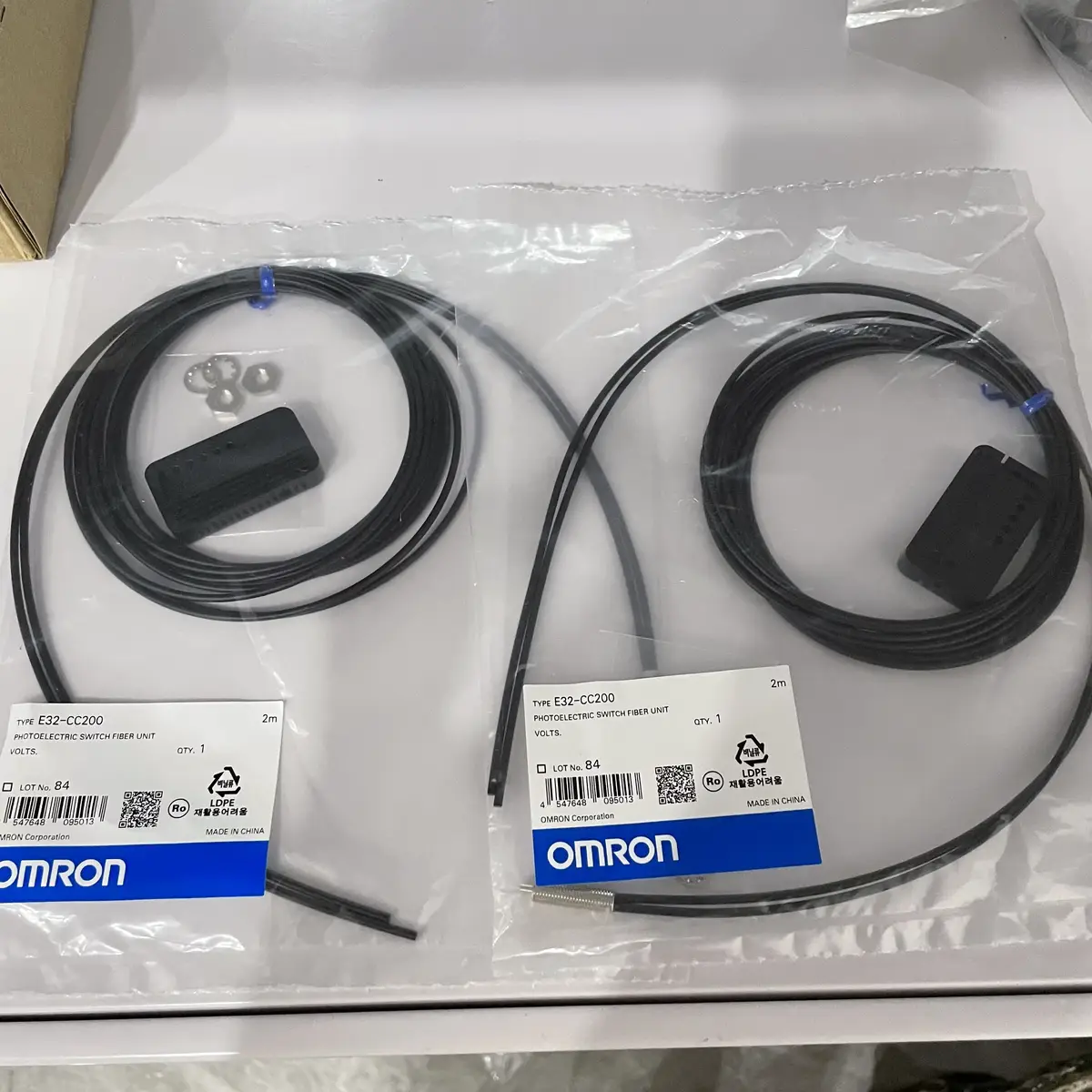

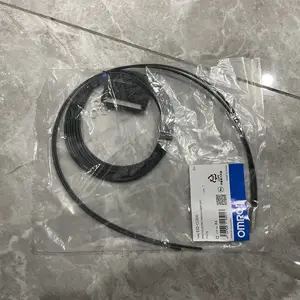

Omron E32-CC200 2M Coaxial Fiber Optic Cable 2m Length
Omron E32-CC200 2M is a coaxial fiber optic cable with 2m length for precise small object detection with fiber amplifiers.
USD 16.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Coaxial fiber optic design for precise target detection
- M6 compact form factor for tight installation points
- 2m fiber length for flexible amplifier placement
- IP67 protection for industrial environmental durability
- Suitable for small-object and fine-position sensing
- Supports high-repeatability detection in precision automation
Precision Fiber Optic Sensing for Small Target and Tight-Space Applications
The E32-CC200 2M enables accurate detection in applications where conventional sensor heads cannot fit or provide required spot precision. Its coaxial design supports stable sensing of small parts, edges, and reflective targets in compact fixtures. This fiber head is widely used in electronics, assembly, and precision packaging systems where consistent small-object detection is critical.
Typical Applications
- Detecting miniature components in assembly fixtures
- Monitoring part edges in precision handling stations
- Sensing reflective marks in compact machine modules
- Integrating into electronics production lines
- Upgrading bulky sensor points to fiber-based compact heads
- Improving reliability of small-object detection tasks
Buying Checklist
- Compact M6 form enables installation in difficult spaces
- Coaxial design supports high-precision sensing
- IP67 durability suits demanding industrial conditions
- 2m length offers flexible layout with remote amplifiers
- Practical choice for high-accuracy small-part applications
Technical Specifications
| Model | E32-CC200 2M |
|---|---|
| Series | E32 |
| Type | Coaxial Fiber Optic Cable |
| Fiber Type | Coaxial (diffuse reflective) |
| Head Size | M4 diameter |
| Cable Length | 2m |
| Sensing Distance | Up to 50mm (with amplifier) |
| Operating Temperature | -55 to +80°C |
| Bend Radius | R25mm min |
| Amplifier | Requires E3X series amplifier |
| Material | Stainless steel head |
Frequently Asked Questions
What's coaxial fiber optic?
Coaxial fiber has emitter and receiver fibers in same head. Light emitted and received from same point. Enables detection of very small objects with precise beam focus.
What's the sensing distance?
Up to 50mm with standard amplifier. Shorter than through-beam but enables detection of tiny objects (down to 0.05mm).
What applications use coaxial fiber?
Small part detection (electronic components, screws), wire detection, edge detection, precise positioning, label detection on transparent backing.
How do I adjust for different targets?
Adjust amplifier sensitivity. For small targets: high sensitivity, short distance. For larger targets: reduce sensitivity to avoid false triggers.
