SKU: E3FA-DP12

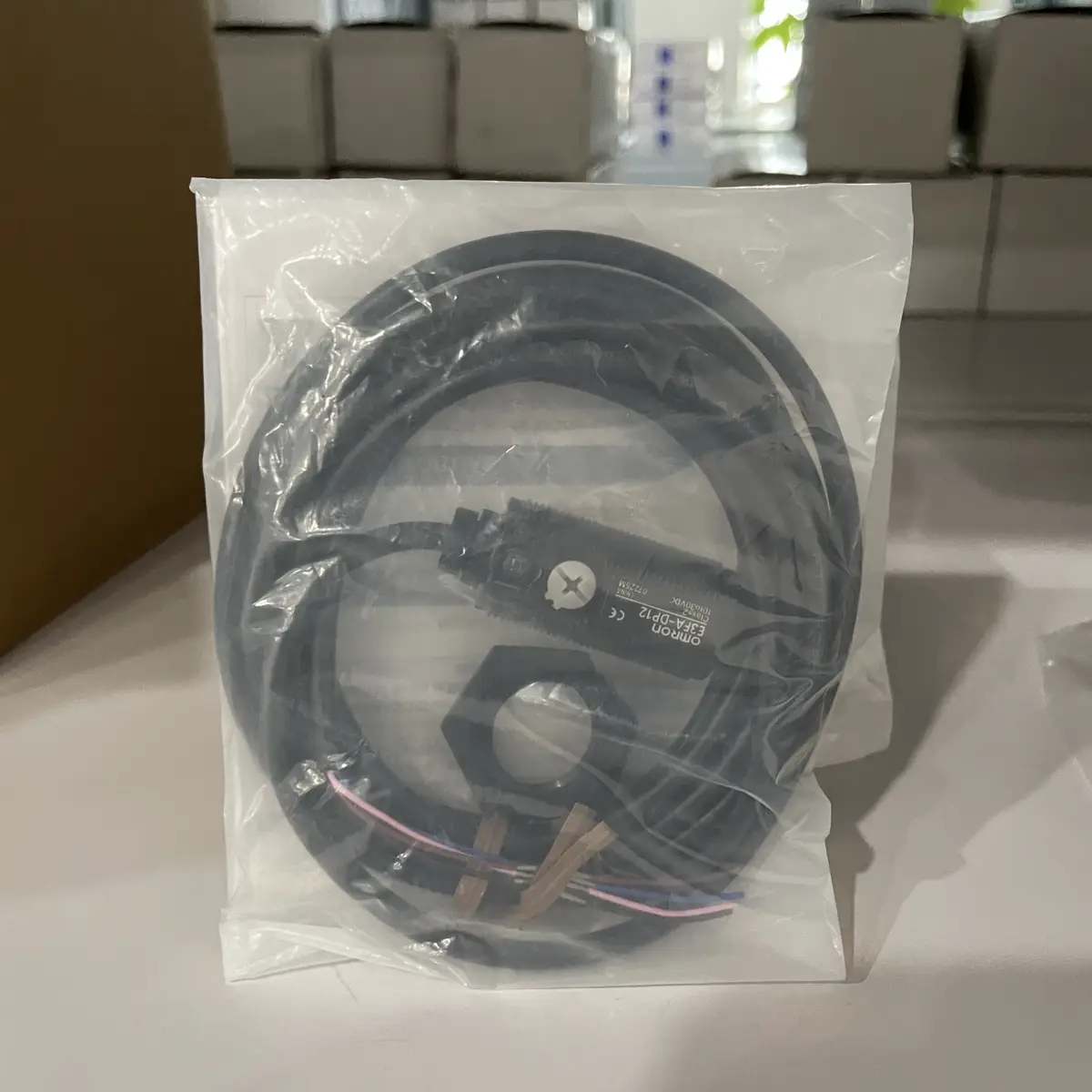

Omron E3FA-DP12 Diffuse Photoelectric Sensor 100mm PNP M12 IP67/IP69K
Omron E3FA-DP12 is a diffuse reflective photoelectric sensor with 100mm range, PNP output, M12 connector, IP67/IP69K protection for harsh washdown environments.
USD 10.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Sensing Range: 20-100mm
- Output Type: PNP Open Collector
- Supply Voltage: DC12-24V ±10%
- Response Time: 1ms max
- Light Source: Red LED (660nm)
- Connection: M12 connector (4-pin)
Reliable Detection Layer for Sequence Accuracy and Process Stability
The E3FA-DP12 is used to deliver repeatable machine-state detection for sequencing, interlocks, and process confirmation. Whether in packaging, handling, or assembly systems, this sensing class helps reduce false triggers and improves control confidence under continuous operation.
Repeatable State Detection
Accurate detection at the right process moment improves sequence integrity and reduces quality escapes caused by timing uncertainty or missed events.
Fit for Demanding Machine Environments
Industrial sensing components are selected for stability under vibration, contamination, and repetitive duty where consumer-grade devices are not suitable.
Faster Commissioning and Replacement
Standardized sensor families simplify spare strategy, reduce replacement errors, and support quicker return to production after maintenance events.
Typical Applications
- Provides stable detection signals to PLC logic
- Improves sequence timing accuracy
- Reduces dependence on mechanical contact methods
- Supports high-cycle production operation
- Enables better fault isolation at machine stations
- Simplifies maintenance through standard sensor families
Buying Checklist
- Repeatable industrial detection behavior
- Designed for continuous machine duty
- Improves process timing confidence
- Serviceable and standardizable selection
- Reliable fit for automation sensing layers
Technical Specifications
| Model | E3FA-DP12 |
|---|---|
| Series | E3FA |
| Type | Diffuse Reflective Photoelectric Sensor |
| Sensing Range | 20-100mm |
| Output Type | PNP Open Collector |
| Supply Voltage | DC12-24V ±10% |
| Response Time | 1ms max |
| Light Source | Red LED (660nm) |
| Connection | M12 connector (4-pin) |
| Protection Rating | IP67/IP69K |
| Operating Temperature | -25 to +55°C |
| Material | Stainless steel housing |
| Indicator | Operation LED |
| Adjustment | Sensitivity potentiometer |
Frequently Asked Questions
What is IP69K protection?
IP69K provides protection against high-pressure, high-temperature washdown (80°C water at 80-100 bar). Ideal for food processing and pharmaceutical applications.
What connector type?
M12 4-pin connector for quick installation and easy replacement.
Output type?
PNP open collector (sourcing output).
Sensing range?
20-100mm adjustable for diffuse detection.
