SKU: E3NX-CA6

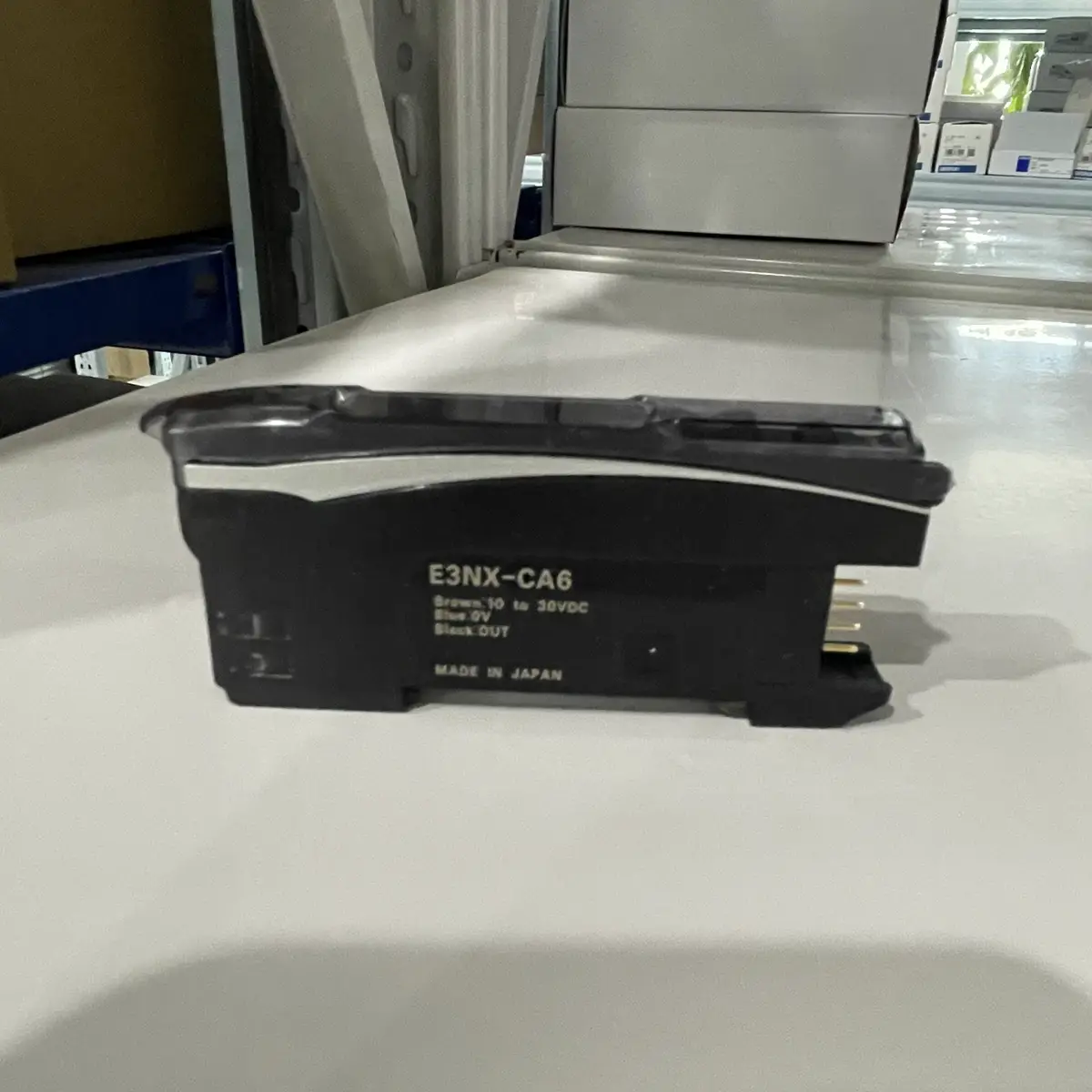

Omron E3NX-CA6 Fiber Amplifier Controller Unit
Omron E3NX-CA6 is a fiber amplifier controller unit for fiber optic sensors with advanced detection capabilities.
USD 155.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Fiber optic amplifier architecture for precise detection control
- NPN output for common industrial control inputs
- 10-30VDC supply range for flexible integration
- Suitable for small-target and compact-space applications
- Supports high-speed response in repetitive operations
- Practical for modernizing complex sensor detection points
High-Sensitivity Fiber Amplification for Precise Detection Tasks
The E3NX-CA6 supports challenging sensing applications where small target size, constrained installation, or reflective conditions require fiber-based detection. It pairs with fiber heads to provide flexible geometry and strong repeatability in high-cycle production. This amplifier is suitable for electronics assembly, packaging, and precision handling systems.
Typical Applications
- Detecting tiny parts in electronics assembly lines
- Monitoring edges in compact feeder tracks
- Implementing fast precision counting with fiber heads
- Upgrading conventional sensors in constrained spaces
- Standardizing high-sensitivity detection modules in OEM systems
- Improving detection stability for reflective or difficult targets
Buying Checklist
- Fiber amplification enables sensing where standard sensors struggle
- Wide supply range simplifies control panel compatibility
- High sensitivity supports quality-critical detection tasks
- Good fit for compact and precision automation environments
- Strong option for scalable advanced sensing strategies
Technical Specifications
| Model | E3NX-CA6 |
|---|---|
| Series | E3NX |
| Type | Fiber Amplifier Controller |
| Light Source | Red LED |
| Supply Voltage | DC12-24V |
| Output | NPN open collector |
| Response Time | 50μs |
| Fiber Connection | M3 threaded |
| Display | Digital display |
| Sensitivity | Digital adjustment, teach function |
| Operating Temperature | -25 to +55°C |
| Mounting | DIN rail |
Frequently Asked Questions
What fiber units work with this amplifier?
E32 series fiber units with M3 connection. Through-beam, diffuse, coaxial.
What's the advantage of digital amplifier?
Digital adjustment, teach function, display for visual feedback. More precise than analog amplifiers.
How does teach function work?
Two-point teach: place target, press teach, remove target, press teach. Automatic sensitivity setting.
What's the response time?
50μs (ultra-high-speed mode). For high-speed detection applications.
