SKU: E6C2-CWZ5B 500PR 2M

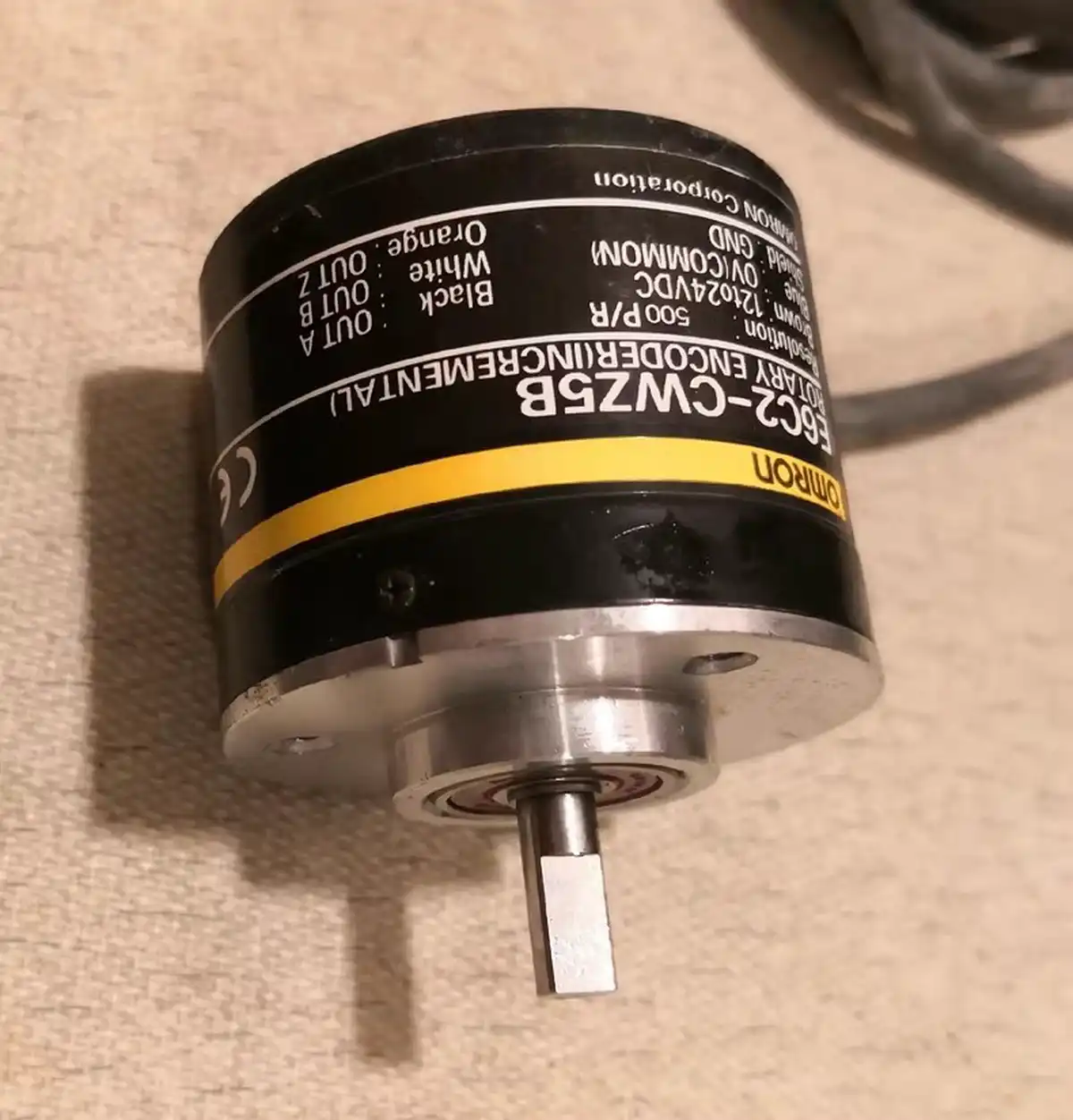

Omron E6C2-CWZ5B 500PR 2M Rotary Encoder 500P/R DC5-24V Voltage 2m Cable Φ50mm
Omron E6C2-CWZ5B 500PR 2M is a Φ50mm incremental rotary encoder with 500 PPR, DC5-24V supply, voltage output, 2-meter cable for industrial position feedback with extended installation reach.
USD 43.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 500 pulses per revolution
- A/B quadrature output
- 6mm shaft diameter with D-cut
- Voltage output
- IP65 protection rating
- 5000 RPM max speed
- 2-meter cable
Omron E6C2-CWZ5B Rotary Encoder
The Omron E6C2-CWZ5B 500PR 2M is a high-resolution incremental rotary encoder designed for precise position and speed feedback in industrial automation applications. This encoder provides 500 pulses per revolution (PPR) in a standard A/B quadrature output format, enabling high-resolution position tracking with direction detection. The E6C2-CWZ5B features a 6mm diameter shaft with a D-cut, compatible with common servo motors and small machinery shafts. The encoder uses a voltage output configuration, providing compatibility with a wide range of PLC counters and motion controllers. With a 2-meter cable and IP65 protection rating, this encoder is suitable for use in industrial environments including servo motor feedback, conveyor systems, printing machinery, and position monitoring applications. The compact 40mm diameter body allows for installation in space-constrained locations.
Typical Applications
- Servo motor feedback
- High-resolution positioning
- Speed monitoring
- Conveyor position
- Printing press registration
- CNC machinery feedback
- Packaging equipment
- Robotics
Buying Checklist
- High 500 PPR resolution
- Compact 40mm body
- IP65 for industrial use
- 2m cable included
- Compatible with most controllers
- Proven Omron encoder quality
- Cost-effective high-res solution
Technical Specifications
| Model | E6C2-CWZ5B 500PR 2M |
|---|---|
| Series | E6C2-C |
| Type | Incremental Rotary Encoder |
| Body Diameter | Φ50mm |
| Resolution | 500 P/R |
| Output Type | Voltage Output (Complementary) |
| Supply Voltage | DC5-24V ±10% |
| Cable Length | 2m pre-wired |
| Shaft Diameter | Φ8mm |
| Output Phase | A/B/Z |
| Max Speed | 5000rpm |
| Protection | IP50 |
| Operating Temperature | -10 to +70°C |
| Starting Torque | 1.5mN·m max |
Frequently Asked Questions
What resolution does this encoder provide?
500 PPR (pulses per revolution) for medium-resolution position feedback suitable for general industrial automation applications.
What is the cable length?
2-meter pre-wired cable for extended installation reach without requiring extension cables or additional connections.
What output type is this?
Voltage (complementary) output for noise-immune signal transmission in industrial environments with electrical interference.
What shaft size does this encoder have?
Φ8mm shaft for standard industrial motor coupling with higher torque capacity than smaller shaft sizes.
