SKU: E6C2-CWZ6C 1024P-R 2M

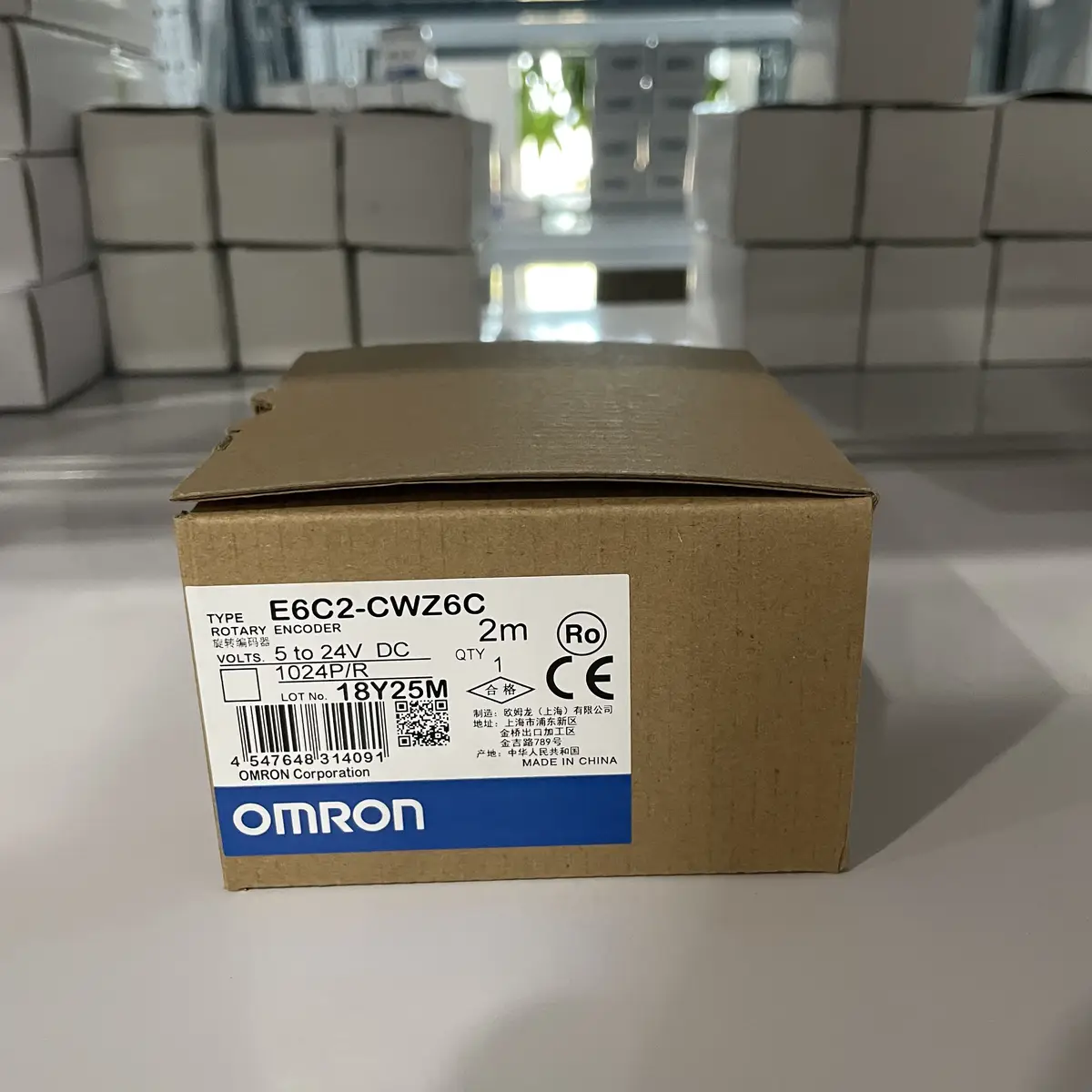

Omron E6C2-CWZ6C Incremental Rotary Encoder, 1024 P/R, Line-Driver Output, 2 m Cable
Omron E6C2-CWZ6C 50 mm incremental rotary encoder, 1024 P/R, complementary voltage (line-driver) output, 5–24 VDC, 2 m pre-wired cable, for precision position feedback.
USD 41.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 1,024 P/R resolution — 4,096 counts/rev with ×4 quadrature
- Complementary line-driver output on A, B, Z — long-cable and noise tolerant
- 5–24 VDC supply — works with 12 V and 24 V systems
- 50 mm body, 8 mm shaft
- 2 m pre-wired cable
- Maximum shaft speed 5,000 rpm
- Shaft load rating: radial 50 N / axial 30 N
- Operating temperature -10 °C to +70 °C
1024 P/R incremental encoder for high-resolution position feedback
The Omron E6C2-CWZ6C is the 1,024 P/R variant of the E6C2-C incremental encoder family. 1,024 pulses per revolution with quadrature decoding gives 4,096 counts per revolution — the standard resolution for general-purpose servo feedback and for precision length measurement.
The "CWZ6C" suffix denotes a complementary output on A, B and Z phases with a 5–24 VDC supply. The complementary signals (A / Ā, B / B̄, Z / Z̄) give differential transmission that cancels common-mode noise — important when the cable run is more than a few metres or the encoder sits near a VFD or a switching power supply.
At 5,000 rpm maximum shaft speed, 1,024 P/R produces ≈ 85 kHz output frequency, which is at the edge of what some PLC high-speed counters can handle. For high-speed applications, use the encoder-input port of an Accurax G5 or 1S servo drive, which is designed for exactly this frequency range.
The 50 mm body, 8 mm shaft and IP50 protection make this a good fit for inside-cabinet mounting on machine tools, packaging lines, and converting machinery where 1,024 P/R is the standard resolution.
Typical Applications
- Position feedback into Accurax G5 or 1S servo drives
- Precision length measurement on converting machinery
- CNC machine tool spindle feedback
- High-resolution indexing tables
- Packaging machinery cut-to-length with sub-millimetre resolution
Buying Checklist
- Verify the line-driver output (CWZ6C) matches the drive input — some drives require open-collector
- Check the P/R code matches what the drive is configured to expect
- For cable runs over 5 m, use a shielded twisted-pair extension cable and ground the shield at the drive end only
- If the encoder will see washdown, choose the IP65 variant — this is IP50
- Use a flexible coupling rated for the encoder's 8 mm shaft and the application side-load
Technical Specifications
| Series | E6C2-C |
|---|---|
| Model | E6C2-CWZ6C (1024 P/R, 2 m cable) |
| Body diameter | 50 mm |
| Shaft diameter | 8 mm |
| Resolution | 1,024 pulses per revolution |
| Output phases | A, A̅, B, B̅, Z, Z̅ (complementary) |
| Output type | Complementary voltage (line-driver) |
| Supply voltage | 5–24 VDC ±10% |
| Current consumption | 100 mA max |
| Max response frequency | 50 kHz |
| Max rotational speed | 5,000 rpm |
| Shaft load (radial) | 50 N max |
| Shaft load (axial) | 30 N max |
| Cable | 2 m pre-wired |
| Protection rating | IP50 |
| Operating temperature | -10 °C to +70 °C |
Frequently Asked Questions
What does "line driver" mean here?
Omron uses "complementary voltage output" to mean the same thing: the encoder actively drives both the true and complement of each phase, so the receiver sees a differential signal that rejects common-mode noise. This is the same physical layer as an RS-422 line driver, even though the encoder itself is not RS-422 compliant in the protocol sense.
Is 1,024 P/R enough for servo feedback?
Yes — 1,024 P/R with ×4 quadrature decoding is the standard resolution for general-purpose servo positioning. For higher precision, step up to 20-bit encoders in the Accurax G5 or 1S motor families.
Can I use this with an NJ/NX PLC high-speed counter?
Yes. The complementary outputs connect to the differential high-speed counter inputs on the NJ/NX-series PLCs. Maximum count frequency on a standard CT021 input is 500 kHz, well above this encoder's 85 kHz maximum.
