SKU: EE-SX672

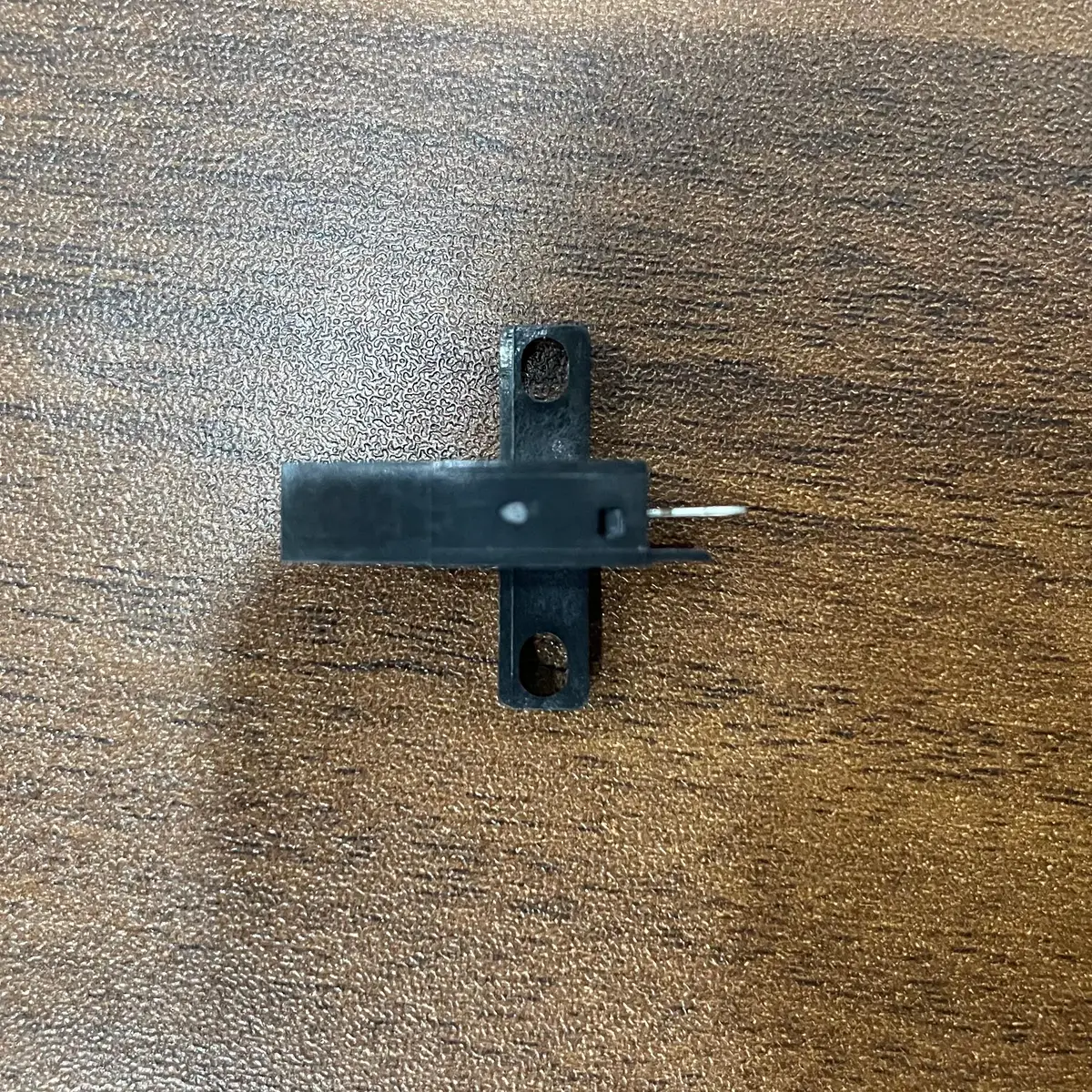

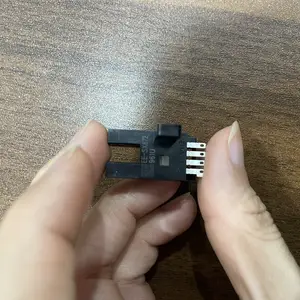

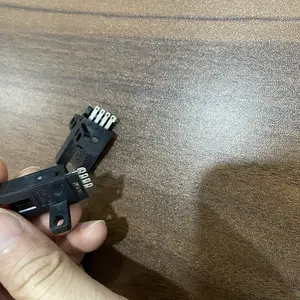

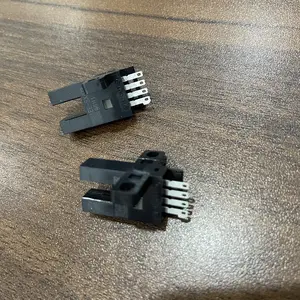

Omron EE-SX672 Micro Photoelectric Sensor Slot 5mm NPN 100mA Direct Switching
Omron EE-SX672 is a slot-type micro photoelectric sensor with 5mm slot, NPN output, 100mA direct switching for high-speed small part detection.
USD 6.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Slot Width: 5mm
- Output Type: NPN
- Supply Voltage: DC5-24V
- Response Time: 0.17ms
- Load Current: 100mA
- Light Source: Infrared LED
Compact Slot Sensor for Reliable Flag and Edge Detection
The EE-SX672 is designed for precise non-contact detection of tabs, flags, and passing edges in compact mechanisms. Its slot geometry supports repeatable triggering in indexing and counting applications.
Transmissive Slot Detection Stability
Emitter and receiver are fixed across a narrow slot, producing clear switching when objects pass through. This method is effective for small mechanical movement sensing.
Space-Efficient Integration
The compact body fits feeder units, print/label paths, and actuator mechanisms where external sensor/reflector layouts are impractical.
PLC-Friendly Electrical Interface
NPN output behavior aligns with common industrial digital input wiring, enabling quick deployment in existing control systems.
Typical Applications
- Triggers sequence changes on flag passage
- Confirms mechanism state transitions
- Provides repeatable count pulses for PLC logic
- Supports compact mechatronic assemblies
- Reduces wear compared with contact switches
- Improves cycle consistency in fast indexing tasks
Buying Checklist
- Stable slot-based interruption detection
- Compact footprint for tight machine spaces
- NPN output compatibility with standard controls
- Effective for counting and position tasks
- Long-life non-contact sensing approach
Technical Specifications
| Model | EE-SX672 |
|---|---|
| Series | EE-SX67 |
| Slot Width | 5mm |
| Output Type | NPN |
| Supply Voltage | DC5-24V |
| Response Time | 0.17ms |
| Load Current | 100mA |
| Light Source | Infrared LED |
| Protection | IP50 |
Frequently Asked Questions
Slot width?
5mm for small part detection.
Output type?
NPN open collector.
Response time?
0.17ms for high-speed detection.
Direct switching?
Yes, 100mA direct switching capacity.
