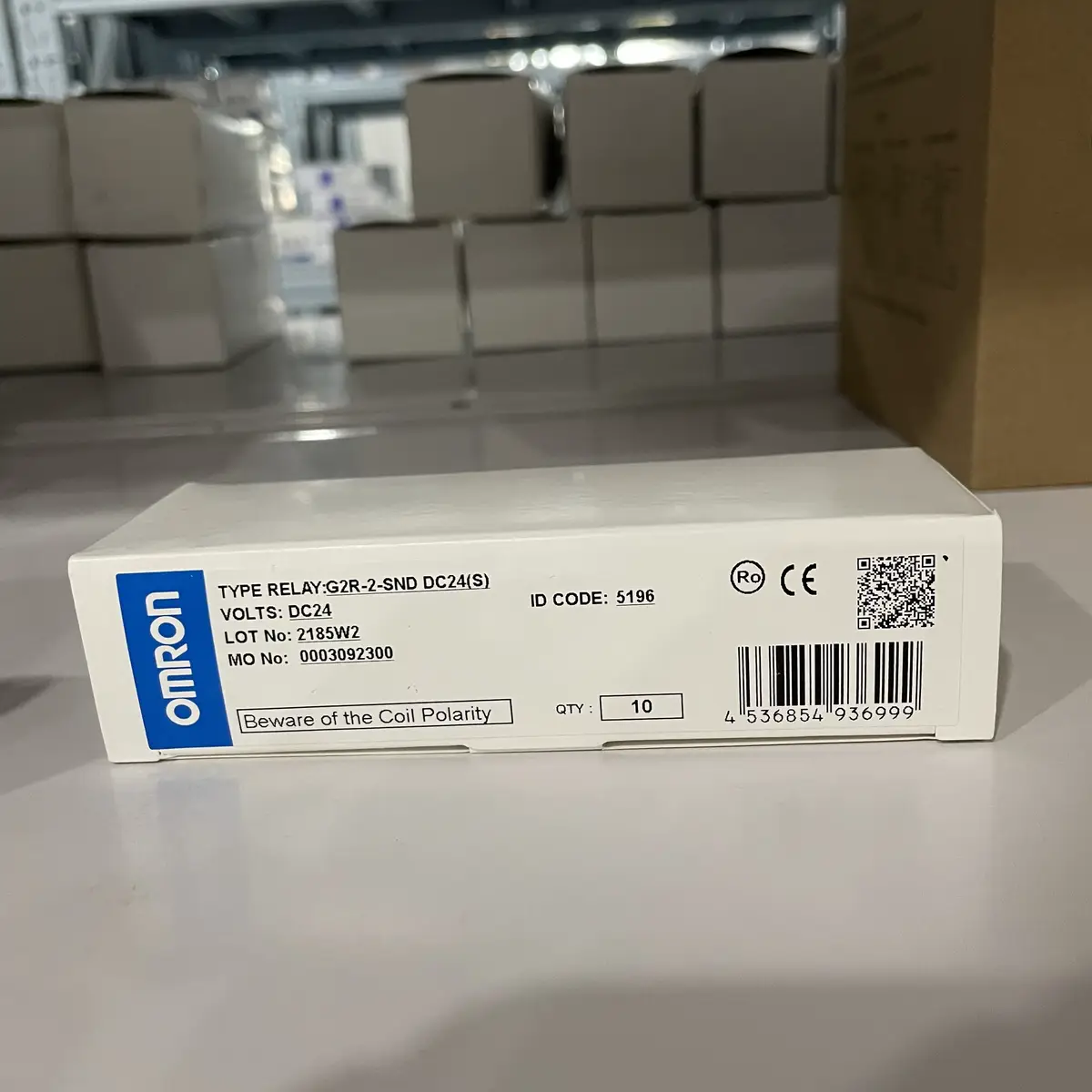

SKU: G2R-2-SND DC24(S)

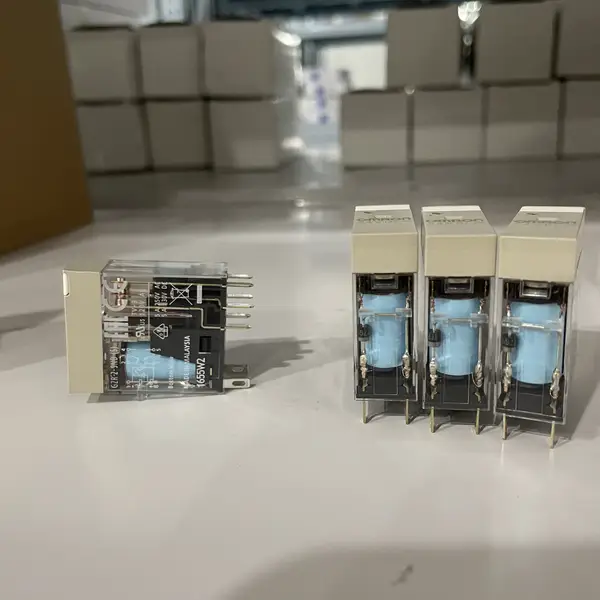

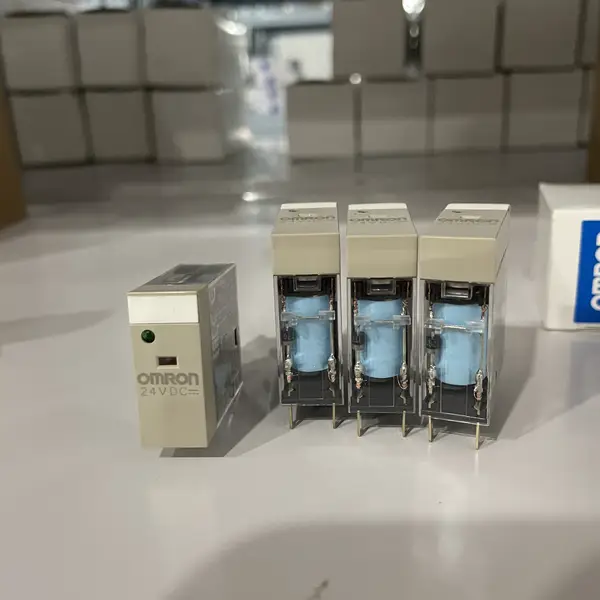

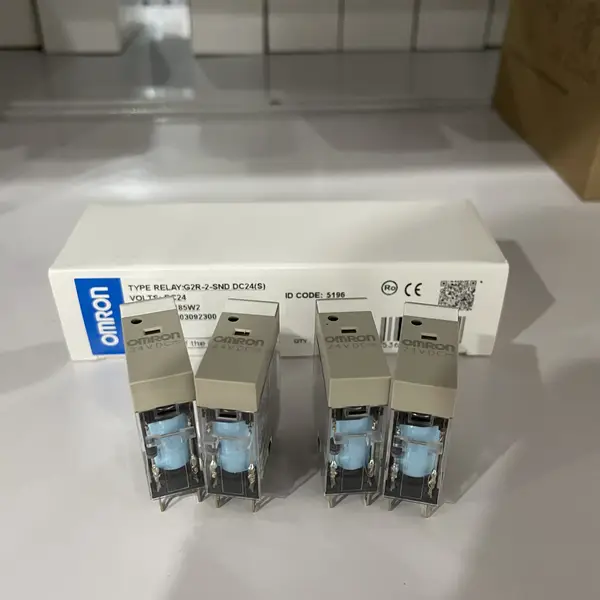

Omron G2R-2-SND DC24(S) General Purpose Relay DPDT 24VDC
DPDT relay with 24VDC coil, LED indicator, diode, silver contacts.
USD 2.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Omron G2R general-purpose relay platform
- 24 VDC coil class for PLC-based control systems
- Useful for interposing and signal isolation tasks
- Supports contact-based switching in panel architectures
- Compatible with maintainable socket-based relay strategies
- Common in OEM and retrofit automation cabinets
24 VDC Interposing Relay for Reliable Control Circuit Switching
G2R-2-SND DC24(S) belongs to Omron G2R relay family and is widely used as an interposing relay between PLC outputs and field loads. This relay class is practical for signal isolation, contact multiplication, and switching interfaces in machine and utility control cabinets. The 24 VDC coil variant is commonly selected for modern PLC-based systems where DC control power is standardized. Engineering teams should verify contact load category, switching frequency, surge suppression approach, and socket compatibility during design. Commissioning should include coil activation checks, contact-state validation, and thermal/load observation under representative duty. G2R-2-SND DC24(S) is typically chosen for maintainable, service-friendly relay logic architectures in industrial automation.
Typical Applications
- PLC output interposing for field actuator control
- Signal isolation between controller and load circuits
- Contact expansion in relay logic panels
- Alarm and status switching in utility cabinets
- Retrofit replacement of aging panel relays
- Standard relay architecture in OEM machine panels
Buying Checklist
- Confirm coil voltage and control-power compatibility.
- Validate contact load type and expected switching frequency.
- Plan surge suppression to protect relay and controller outputs.
- Check socket/base compatibility for maintainable replacement.
- Keep spare relay stock for high-availability production lines.
Technical Specifications
| Model | G2R-2-SND DC24(S) |
|---|---|
| Series | G2R |
| Type | General Purpose Relay |
| Contact Configuration | DPDT (2 Form C) |
| Coil Voltage | 24VDC |
| Contact Rating | 5A at 250VAC |
| Coil Power | Approx. 530mW |
| Operating Time | Approx. 10ms |
| Release Time | Approx. 5ms |
| LED Indicator | Yes |
| Diode | Built-in (surge absorption) |
| Socket | P2RF-08-E or PTF-08-E |
Frequently Asked Questions
Which socket is compatible?
Use P2RF-08-E (front connection) or PTF-08-E (top connection) 8-pin sockets.
What does the built-in diode do?
The diode absorbs coil surge voltage when de-energizing, protecting the control circuit (PLC output, transistor) from voltage spikes.
Can I use this relay for safety circuits?
No, this is a general purpose relay. For safety applications, use G7SA series safety relays.
What is the minimum switching load?
Minimum recommended load is 100mW at 5VDC for reliable contact operation.
