SKU: G3NA-210B-UTU DC5-24

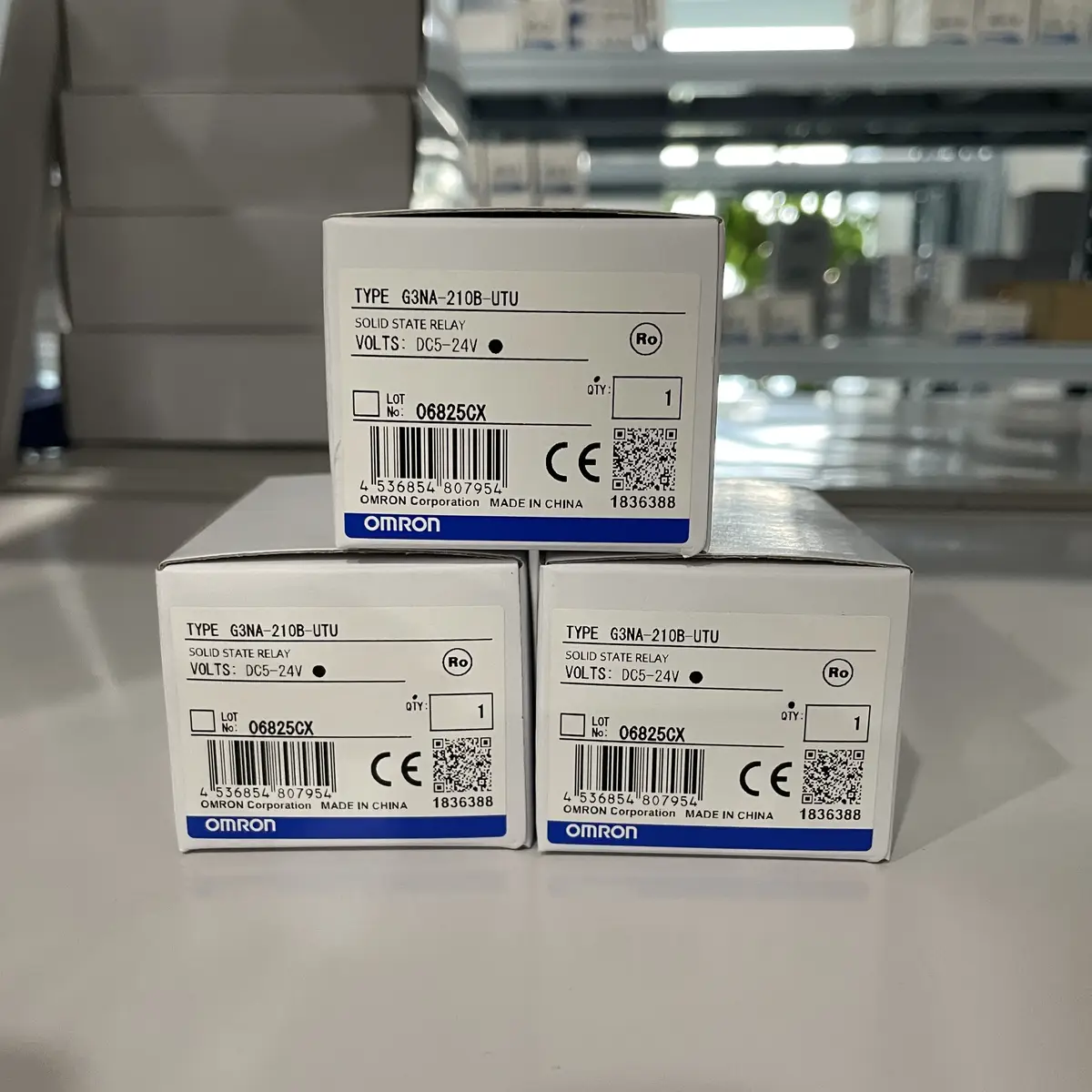

Omron G3NA-210B-UTU DC5-24 Solid State Relay 10A AC200-240V DIN Rail
Omron G3NA-210B-UTU DC5-24 is a 10A solid state relay with DC5-24V control input, AC200-240V load switching, DIN rail mount for high-cycle industrial applications.
USD 16.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 10A load current capacity
- DC5-24V control input
- AC200-240V load switching
- Zero-cross switching
- DIN rail mounting
- Built-in surge absorption
- LED operation indicator
- High-cycle durability
Omron G3NA-210B-UTU DC5-24 Solid State Relay
The Omron G3NA-210B-UTU DC5-24 is a 10A solid state relay (SSR) designed for reliable high-cycle load switching in industrial control panels. This SSR features DC5-24V control input compatible with PLC transistor outputs, and switches AC200-240V loads up to 10A. The DIN rail mounting design enables easy panel installation. Zero-cross switching reduces electrical noise and extends load life. Built-in snubber circuit and varistor provide surge absorption for inductive loads. Ideal for heater control, solenoid valves, and lamp switching applications.
Typical Applications
- Heater control
- Solenoid valve switching
- Lamp and lighting control
- Motor on/off control
- Temperature control systems
Buying Checklist
- Proven G3NA series reliability
- Zero-cross reduces electrical noise
- High-cycle durability vs mechanical relays
- Easy DIN rail installation
Technical Specifications
| Model | G3NA-210B-UTU DC5-24 |
|---|---|
| Series | G3NA |
| Type | Solid State Relay (SSR) |
| Load Current | 10A |
| Load Voltage | AC200-240V (50-60Hz) |
| Control Input Voltage | DC5-24V |
| Control Input Current | 7-15mA |
| Switching Method | Zero-cross turn-on |
| Turn-On Time | 1/2 cycle + 1ms max |
| Turn-Off Time | 1/2 cycle + 5ms max |
| Off-State Leakage | 10mA max at 200VAC |
| On-State Voltage Drop | 1.6V max at 10A |
| Dielectric Strength | 2500VAC between input/output |
| Operating Temperature | -30 to +80°C |
| Mounting | DIN rail or panel |
| Heat Sink Required | For loads above 5A or high ambient |
| LED Indicator | Input ON indicator |
| Dimensions | 48 x 58 x 58mm |
Frequently Asked Questions
When should I use SSR instead of mechanical relay?
Choose SSR for: high-cycle applications (>1 operation/second), silent operation required, no contact arcing (hazardous locations), long life without maintenance, or switching sensitive electronic loads. Choose mechanical relay for: low-cycle applications, cost sensitivity, or DC load switching.
Do I need a heat sink for this SSR?
For loads under 5A at ambient below 40°C, no heat sink needed. For 5-10A loads or ambient above 40°C, use Y92B-N50 heat sink. SSRs generate heat (1.6V × load current = power dissipation). Proper heat sinking is critical for reliability.
What is zero-cross switching and why does it matter?
Zero-cross turns on the SSR when AC voltage crosses zero volts, minimizing inrush current and electrical noise. Benefits: reduced EMI/RFI interference, longer load life (especially heaters and transformers), and reduced stress on the SSR. Not suitable for phase-angle control applications.
Can this SSR switch DC loads?
No, G3NA-210B is AC output only. For DC loads, use G3NA-D series DC output SSRs or G3NB/G3NE MOS FET SSRs. AC SSRs use TRIAC/thyristor outputs that won't turn off with DC loads.
What protection do I need for inductive loads?
For inductive loads (contactors, solenoids, motors), add a varistor (MOV) across the load: 275VAC varistor for 200VAC loads, 440VAC for 400VAC loads. This suppresses voltage spikes from inductive kickback that can damage the SSR.
