SKU: G3R-ODX02SN-UTU DC5-24V

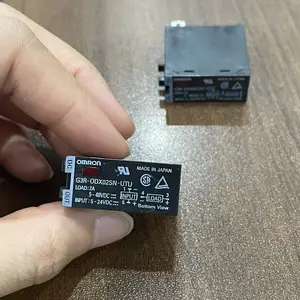

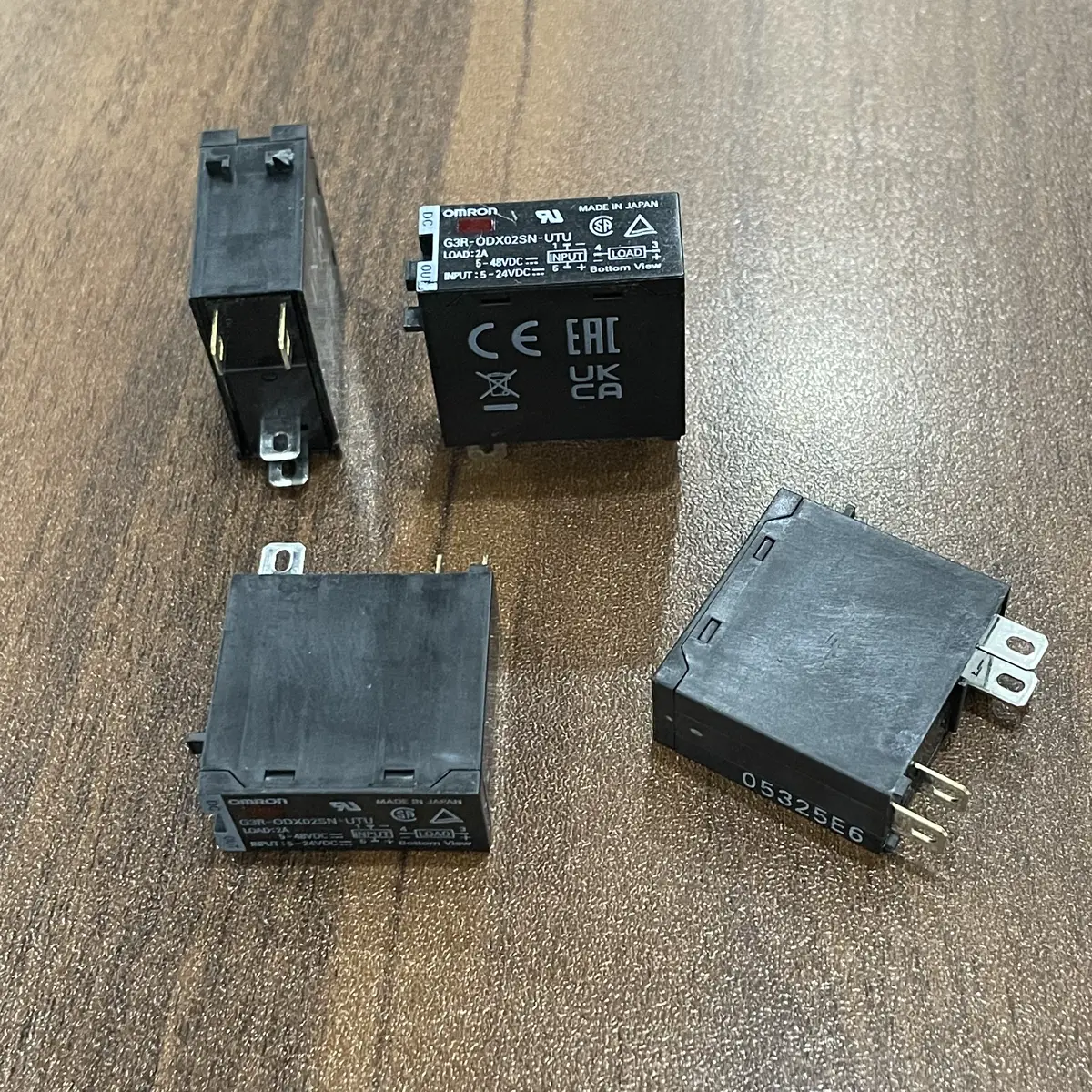

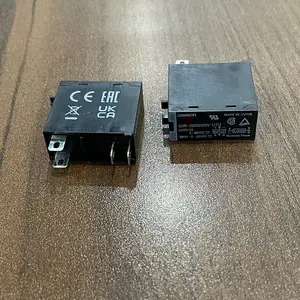

Omron G3R-ODX02SN-UTU DC5-24V Miniature SSR 3A
3A miniature solid state relay with DC5-24V control.
USD 18.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Solid state relay design with no mechanical contact wear
- DC5-24V control compatibility for common automation circuits
- Compact miniature form factor for dense cabinet layouts
- Suitable for frequent switching and high-cycle applications
- Low-noise operation compared with electromechanical alternatives
- Reliable option for process and machine interface control
Compact Solid State Switching for Reliable High-Cycle Control
The G3R-ODX02SN-UTU provides electronic load switching without mechanical contacts, making it ideal for applications requiring high switching frequency and long service life. Its miniature format supports dense panel layouts and modular assemblies where space is limited. This relay is commonly used in control interfaces, process modules, and compact machine sections where low maintenance and consistent switching behavior are priorities.
Typical Applications
- Switching interface loads in compact control panels
- Driving high-frequency control outputs
- Isolating PLC outputs for auxiliary device control
- Improving relay durability in repetitive switching stations
- Retrofitting contact relays in low-to-medium load circuits
- Building compact solid-state interface modules for OEM equipment
Buying Checklist
- No-contact switching increases lifecycle durability
- Compact size supports high-density panel design
- Suitable for applications with frequent switching cycles
- Reduces maintenance associated with mechanical relay wear
- Practical solid-state solution for reliable control outputs
Technical Specifications
| Model | G3R-ODX02SN-UTU DC5-24V |
|---|---|
| Series | G3R |
| Type | Miniature Solid State Relay |
| Load Current | 3A |
| Load Voltage | AC24-240V |
| Control Input | DC5-24V |
| Switching Method | Zero Cross |
| Mounting | PCB or socket |
| Operating Temperature | -30 to +80°C |
| LED Indicator | Yes (operation) |
| Size | Compact miniature |
Frequently Asked Questions
Does this SSR require a heat sink?
For loads under 2A at normal ambient temperatures, no heat sink is required. For 3A loads or high ambient temperatures, use a small heat sink for reliable operation.
What load types can this SSR switch?
Suitable for resistive loads (heaters, incandescent lamps) and inductive loads (solenoids, contactors) up to 3A. For highly inductive loads, use a varistor for surge protection.
What is the expected lifetime?
SSRs have no mechanical contacts, providing essentially unlimited mechanical life. Electrical life depends on load conditions but typically exceeds 1 million operations.
Can this SSR switch DC loads?
No, this is an AC output SSR. For DC loads, use a MOS FET SSR or mechanical relay.
