SKU: G3R-ODX02SN-UTU DC5-24

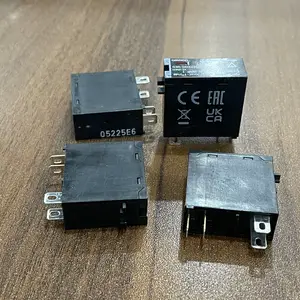

Omron G3R-ODX02SN-UTU DC5-24 Miniature SSR 3A
Omron G3R-ODX02SN-UTU DC5-24 is a miniature 3A solid state relay with DC5-24V control for compact AC load switching.
USD 15.50 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Solid state switching with no mechanical contact wear
- DC5-24V control range for broad interface compatibility
- 3A class output suited for compact control load switching
- Miniature package for space-constrained panel designs
- Suitable for high-frequency repetitive switching tasks
- Practical replacement for wear-prone miniature relays
Compact Contactless Switching for High-Cycle Control Reliability
The G3R-ODX02SN-UTU DC5-24 provides solid-state load switching where mechanical relay wear is a concern. Its miniature package is suitable for dense control assemblies and interface boards in panel applications. This relay is commonly used for repetitive switching tasks requiring stable performance, low maintenance, and consistent response in industrial environments.
Typical Applications
- Switching compact control loads in dense panels
- Interfacing PLC outputs to repetitive-cycle devices
- Replacing miniature relays in high-duty circuits
- Implementing silent switching in process modules
- Supporting fast switch cycles in machine subassemblies
- Standardizing SSR channels in OEM compact designs
Buying Checklist
- No-contact operation improves lifecycle durability
- Small footprint fits high-density cabinet layouts
- Wide control range simplifies system compatibility
- Reliable choice for repetitive switching workloads
- Good maintenance strategy component for compact systems
Technical Specifications
| Model | G3R-ODX02SN-UTU DC5-24 |
|---|---|
| Series | G3R |
| Type | Miniature Solid State Relay |
| Load Current | 3A |
| Load Voltage | AC100-240V |
| Control Input | DC5-24V |
| Switching Method | Zero-cross |
| Mounting | PCB or socket mount |
| Operating Temperature | -30 to +80°C |
| Size | Miniature (compact) |
Frequently Asked Questions
What's the advantage of miniature SSR?
Compact size for space-constrained applications. PCB mount or socket mount. Suitable for control panels, equipment.
What loads can this SSR switch?
3A at AC100-240V: small contactors, solenoids, lamps. For higher current, use larger SSR or external contactor.
Do I need a heat sink?
For 3A load, typically no heat sink needed at normal ambient. Check datasheet for specific requirements.
Can this SSR be socket mounted?
Yes, G3R series available with socket mount option. Check specific model for mounting style.
