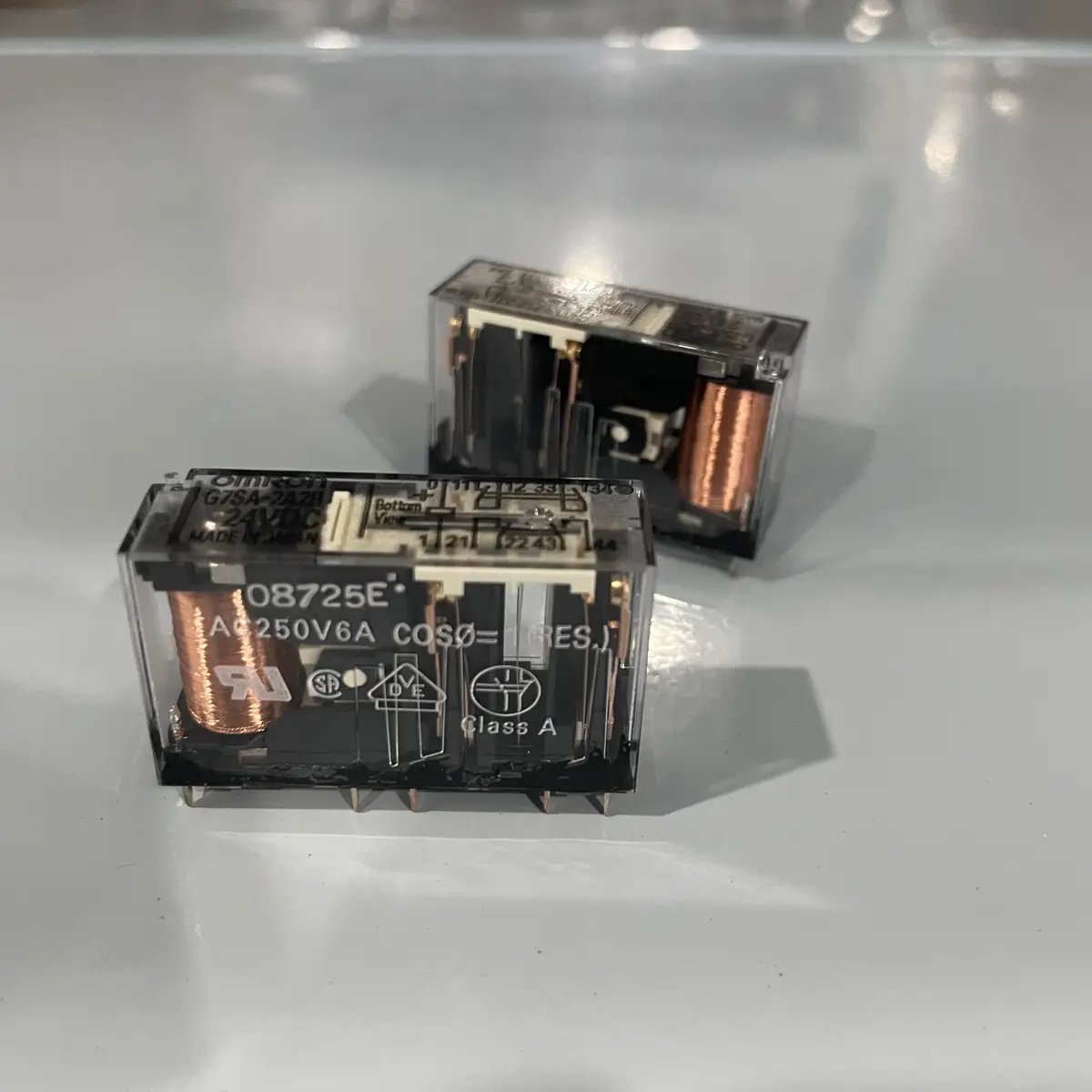

Omron G7SA-2A2B DC24 Safety Relay 2NO+2NC 24VDC Coil
Omron G7SA-2A2B DC24 is a safety relay with 2NO+2NC contacts, DC24V coil, forced guided contacts for machine safety circuits.
USD 6.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Contact Configuration: 2NO + 2NC
- Coil Voltage: DC24V
- Coil Power: 500mW
- Contact Rating: 5A at 250VAC (AC-15)
- Mechanical Life: 10 million operations
- Electrical Life: 100,000 operations
Robust Switching Interface for High-Uptime Control Panels
The G7SA-2A2B DC24 provides a practical interface between controller outputs and field loads. In high-cycle or uptime-sensitive applications, this class of component supports cleaner switching behavior, reduced wear concerns, and easier panel-level standardization.
Controller-to-Load Interface Reliability
Relay/SSR devices isolate control electronics from field-side switching demands and provide a practical interface layer in mixed-load control systems.
High-Cycle Switching Practicality
For frequent switching duty, proper relay/SSR selection improves panel reliability and can reduce maintenance compared with under-rated or mismatched alternatives.
Panel Standardization Benefits
Using consistent relay/SSR classes across equipment simplifies wiring conventions, spare inventory, and technician troubleshooting workflows.
Typical Applications
- Isolates controller outputs from field loads
- Provides reliable switching for control branches
- Supports higher cycle operation with proper selection
- Improves panel maintainability and spare planning
- Reduces unplanned downtime from contact wear issues
- Enables cleaner wiring architecture in control cabinets
Buying Checklist
- Practical controller-to-load interface
- Supports high-duty panel switching
- Improves reliability with proper sizing
- Aids standardization of control wiring
- Strong lifecycle service value
Technical Specifications
| Model | G7SA-2A2B DC24 |
|---|---|
| Series | G7SA |
| Type | Safety Relay (Forced Guided Contacts) |
| Contact Configuration | 2NO + 2NC |
| Coil Voltage | DC24V |
| Coil Power | 500mW |
| Contact Rating | 5A at 250VAC (AC-15) |
| Mechanical Life | 10 million operations |
| Electrical Life | 100,000 operations |
| Operating Time | 20ms max |
| Release Time | 10ms max |
| Safety Standard | EN 50205 Class A (Forced Guided) |
| Mounting | Socket mount (P7GA) |
| LED Indicator | Yes (coil energization) |
| Operating Temperature | -25 to +55°C |
| Certifications | CE, TUV, UL |
Frequently Asked Questions
What are forced guided contacts and why are they required for safety?
Forced guided contacts mechanically link NO and NC contacts so they cannot both be closed simultaneously. Even if contacts weld, the mechanical linkage ensures NC opens when NO fails closed. This is required by safety standards (ISO 13849, IEC 62061) for safety circuits.
What safety category can I achieve with G7SA relay?
When used in properly designed safety circuit with monitoring, G7SA can achieve Category 3, PL d. For Category 4/PL e, use dedicated safety relay modules (G9SP, G9SA) with internal monitoring.
How do I wire G7SA for emergency stop circuit?
Wire E-stop button in series with coil. Use NC safety contacts in series with machine contactor coil. Use NO contacts for monitoring feedback to safety PLC. Always use dual-channel (redundant) wiring for safety circuits.
What socket do I need for G7SA relay?
P7GA-11 socket (11-pin). Socket includes terminal markings for easy wiring. DIN rail mount or panel mount options available.
Can I use this relay for safety gate monitoring?
Yes, G7SA is suitable for safety gate/door interlock circuits. Wire gate switch in series with coil. When gate opens, relay de-energizes, NC contacts open, stopping machine. Monitor gate status with NO contacts.
