SKU: P7SA-14F-ND-PU DC24

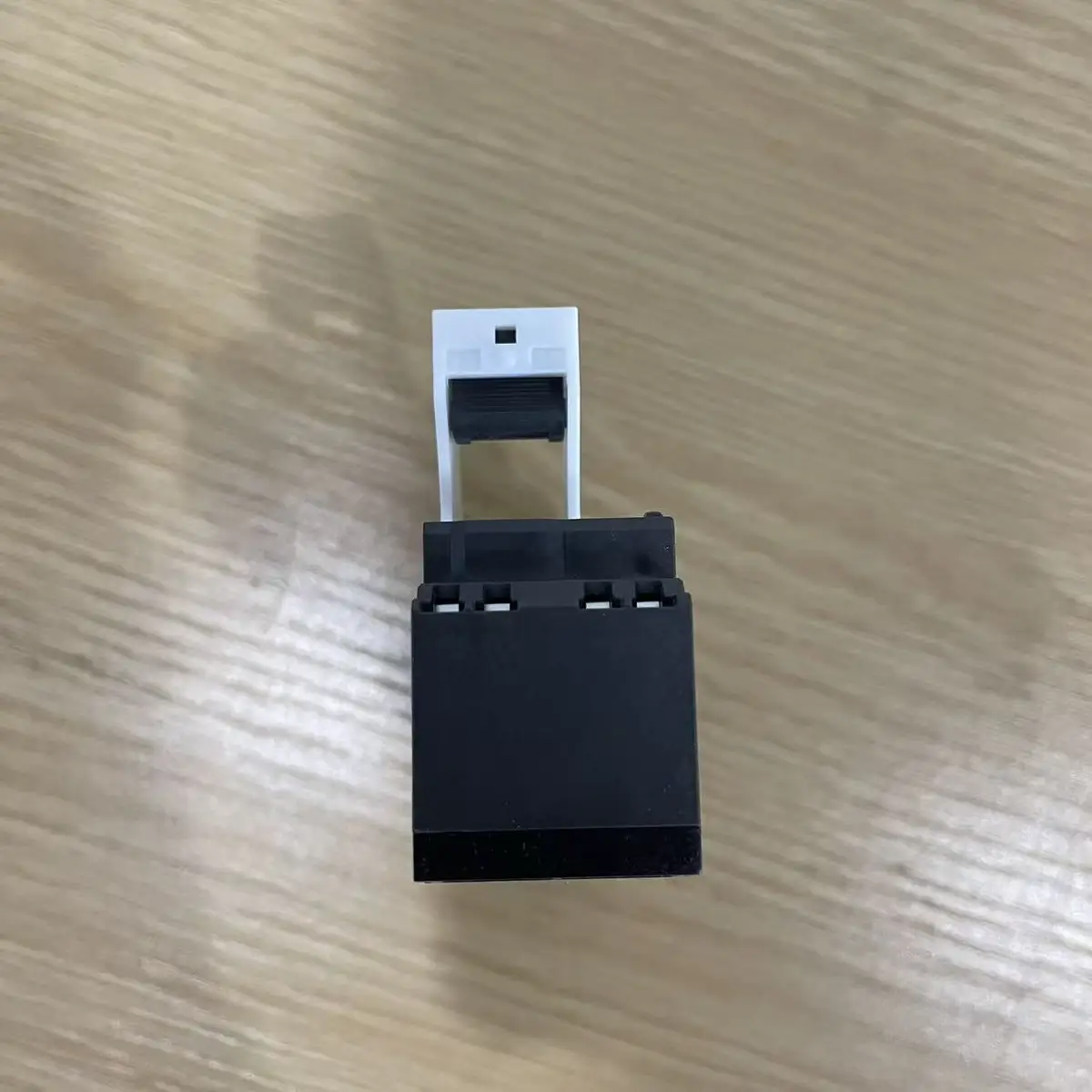

Omron P7SA-14F-ND-PU DC24 Safety Relay Module 14-Pin
Omron P7SA-14F-ND-PU DC24 is a 14-pin safety relay module with 24VDC supply for comprehensive machine safety monitoring.
USD 14.50 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Safety relay socket platform with push-in wiring terminals
- Designed for DC24 safety control panel architectures
- Supports faster installation and cleaner wiring practices
- Improves relay replacement efficiency in maintenance operations
- Suitable for machine guarding and safety interlock circuits
- Reliable mounting interface for safety relay systems
Push-In Safety Relay Socket for Efficient Wiring and Reliable Service
The P7SA-14F-ND-PU DC24 supports safety relay installation in machine safety circuits where wiring speed and long-term maintenance are key priorities. Push-in terminals reduce assembly effort and improve connection consistency. This socket is suited for OEM safety panels and plant retrofits that require structured relay mounting and dependable service access over the equipment lifecycle.
Typical Applications
- Mounting safety relays in machine protection systems
- Building DIN rail safety control sections with push-in wiring
- Reducing wiring time in OEM safety panel production
- Supporting quick relay replacement during maintenance
- Upgrading screw-terminal sockets to push-in technology
- Standardizing safety relay base hardware across equipment fleets
Buying Checklist
- Push-in terminals improve assembly speed and consistency
- Enhances maintainability in safety-critical control cabinets
- Supports cleaner and more organized safety panel layout
- Practical for OEM standardization of safety interfaces
- Reliable choice for lifecycle safety system support
Technical Specifications
| Model | P7SA-14F-ND-PU DC24 |
|---|---|
| Series | P7SA |
| Terminals | 14-pin |
| Safety Inputs | 2 channels |
| Safety Outputs | 3NC + 1NO |
| Supply Voltage | DC24V |
| Safety Category | Category 4, PL e |
| Mounting | DIN rail |
| LED Indicators | Status LEDs |
Frequently Asked Questions
What's the difference between 10F and 14F models?
14F has 14 terminals vs 10 terminals on 10F. Additional terminals provide extra auxiliary outputs for monitoring, feedback, or cascading multiple safety modules.
Can I cascade multiple P7SA modules?
Yes, wire safety outputs of first module to inputs of second. Creates safety chain for multiple zones. Each module provides independent monitoring and fault detection.
What's the response time?
25ms maximum from input change to output change. Fast enough for most machine safety applications. For high-speed machinery, verify total system response time meets safety requirements.
Does this module require periodic testing?
Yes, per ISO 13849-2. Typical interval: annually or per risk assessment. Test all safety inputs, verify outputs respond correctly, document results.
