SKU: G7SA-5A1B DC24V

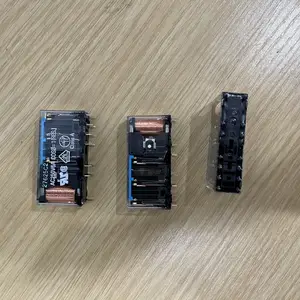

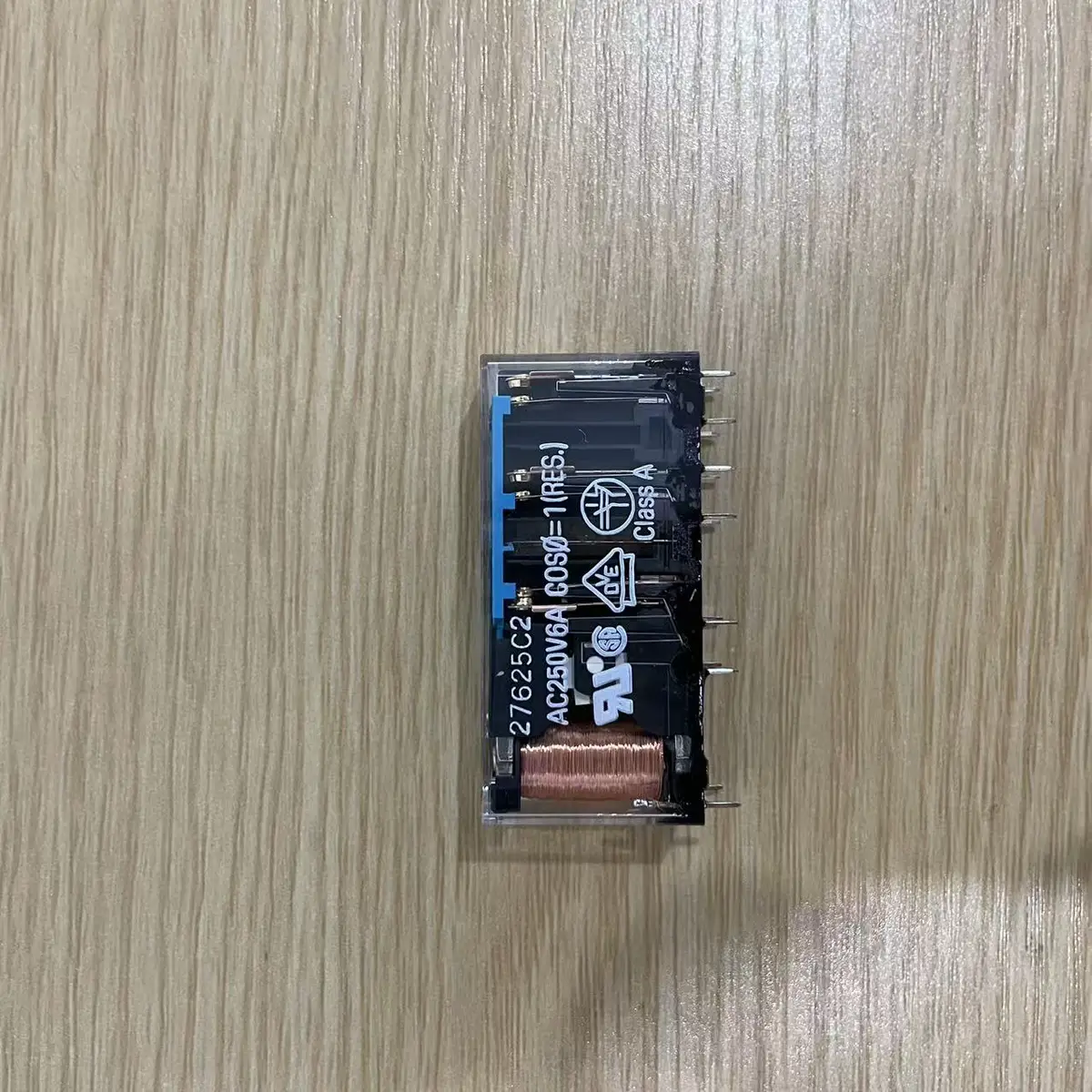

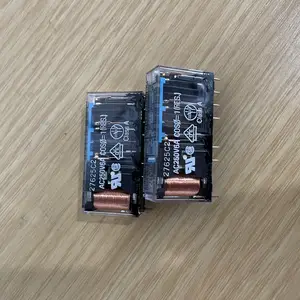

Omron G7SA-5A1B DC24V Safety Relay 5NO+1NC 24VDC
Omron G7SA-5A1B DC24V is a safety relay with 5NO+1NC forced guided contacts, DC24V coil for complex machine safety circuits.
USD 7.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Contact Configuration: 5NO + 1NC
- Coil Voltage: DC24V
- Contact Rating: 5A at 250VAC
- Safety Standard: EN 50205 Class A (Forced Guided)
- Mechanical Life: 10 million operations
- Mounting: Socket mount
Safety Relay for Reliable Machine Safety Architectures
The G7SA-5A1B DC24V is part of Omron safety relay solutions designed for emergency stop, guard monitoring, and safety interlock systems. Force-guided contacts support diagnostic integrity in safety-related control circuits.
Force-Guided Contact Principle
Mechanical linkage between contacts helps detect certain welded-contact failures, supporting safer feedback and monitoring strategies in compliant safety designs.
24VDC Coil for Standard Safety Control Panels
The DC24V coil aligns with common machine safety supply architectures, reducing integration friction in new or retrofit builds.
Application Scope
Used as part of layered safety logic with safety relays/controllers, contactors, and monitored feedback loops to manage hazardous motion and energy states.
Typical Applications
- Implements monitored safety outputs
- Supports safety contactor feedback diagnostics
- Helps isolate hazardous energy via control logic
Buying Checklist
- Force-guided contacts for safety-oriented diagnostics
- 24VDC coil matches standard machine control power
- Suitable for E-stop and guard monitoring systems
- Industrial safety component from established platform
Technical Specifications
| Model | G7SA-5A1B DC24V |
|---|---|
| Series | G7SA |
| Contact Configuration | 5NO + 1NC |
| Coil Voltage | DC24V |
| Contact Rating | 5A at 250VAC |
| Safety Standard | EN 50205 Class A (Forced Guided) |
| Mechanical Life | 10 million operations |
| Mounting | Socket mount |
| LED Indicator | Yes |
| Operating Temperature | -25 to +55°C |
| Certifications | CE, TUV, UL |
Frequently Asked Questions
Is this the same as G7SA-5A1B DC24?
Yes, DC24 and DC24V refer to the same 24VDC coil voltage. Different listings may use either notation.
When do I need 5NO contacts?
5NO contacts for complex safety systems controlling: main contactor, brake relay, hydraulic valve, pneumatic valve, alarm indicator, and feedback monitoring. Multiple safety outputs from single relay.
What's the maximum switching current?
5A at 250VAC resistive, 3A at 250VAC inductive (AC-15). For higher currents, use relay contacts to control contactors rather than switching load directly.
How do I test the safety function?
Regular testing per machine safety requirements: activate safety device (E-stop, gate switch), verify machine stops within required time, verify NC contact opens, document test results.
