SKU: H5CC-A

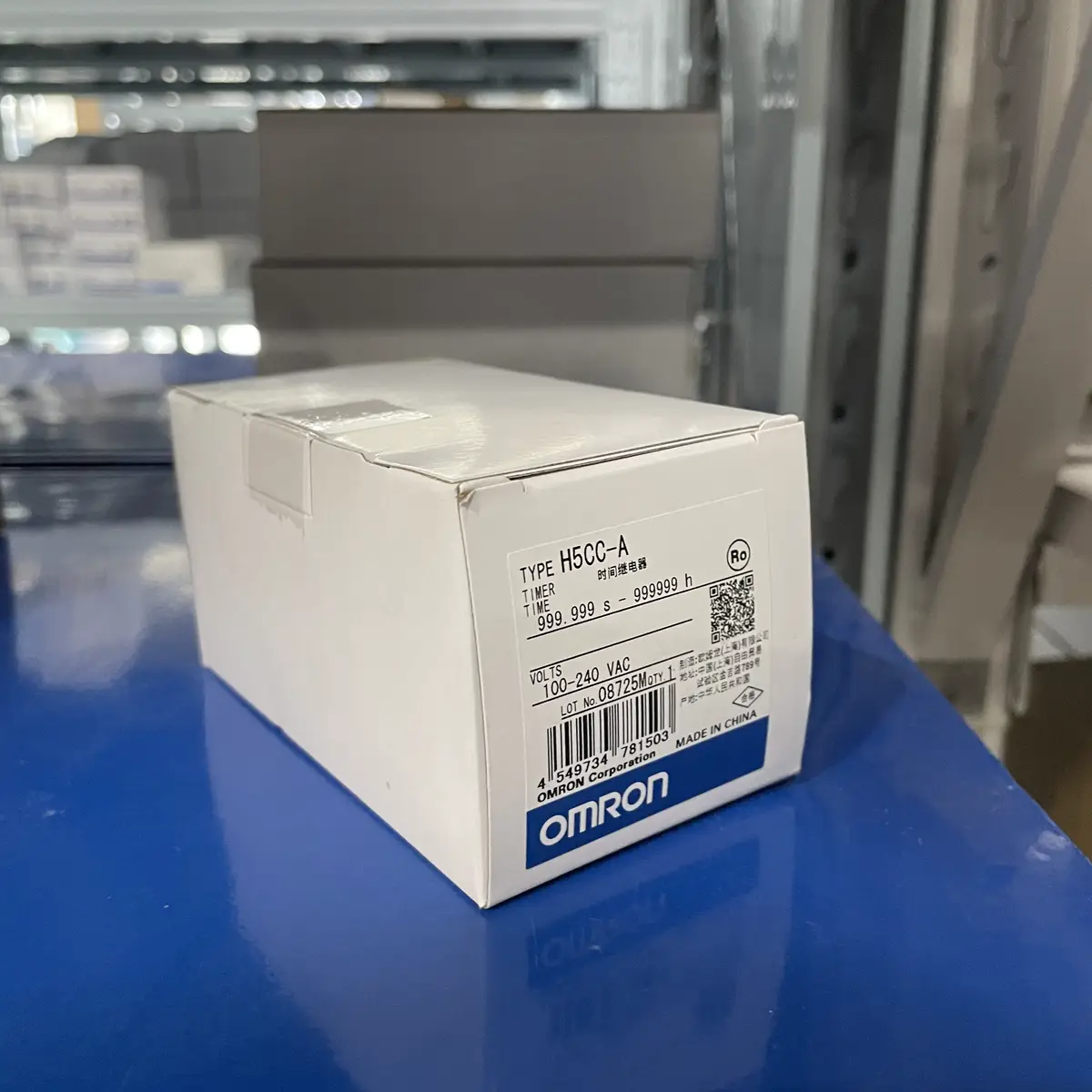

Omron H5CC-A Digital Timer Counter AC100-240V Supply
Omron H5CC-A is a digital timer/counter with AC100-240V supply, dual-function for industrial timing and counting applications.
USD 73.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Supply Voltage: AC100-240V 50/60Hz
- Function: Timer or Counter (selectable)
- Timing Range: 0.01s to 999,999s
- Count Range: 0 to 999,999
- Output: 2x SPDT relay
- Display: 6-digit LCD
Robust Switching Interface for High-Uptime Control Panels
The H5CC-A provides a practical interface between controller outputs and field loads. In high-cycle or uptime-sensitive applications, this class of component supports cleaner switching behavior, reduced wear concerns, and easier panel-level standardization.
Controller-to-Load Interface Reliability
Relay/SSR devices isolate control electronics from field-side switching demands and provide a practical interface layer in mixed-load control systems.
High-Cycle Switching Practicality
For frequent switching duty, proper relay/SSR selection improves panel reliability and can reduce maintenance compared with under-rated or mismatched alternatives.
Panel Standardization Benefits
Using consistent relay/SSR classes across equipment simplifies wiring conventions, spare inventory, and technician troubleshooting workflows.
Typical Applications
- Isolates controller outputs from field loads
- Provides reliable switching for control branches
- Supports higher cycle operation with proper selection
- Improves panel maintainability and spare planning
- Reduces unplanned downtime from contact wear issues
- Enables cleaner wiring architecture in control cabinets
Buying Checklist
- Practical controller-to-load interface
- Supports high-duty panel switching
- Improves reliability with proper sizing
- Aids standardization of control wiring
- Strong lifecycle service value
Technical Specifications
| Model | H5CC-A |
|---|---|
| Series | H5CC |
| Type | Digital Timer/Counter |
| Supply Voltage | AC100-240V 50/60Hz |
| Function | Timer or Counter (selectable) |
| Timing Range | 0.01s to 999,999s |
| Count Range | 0 to 999,999 |
| Output | 2x SPDT relay |
| Display | 6-digit LCD |
| Size | 48 x 48mm |
| Input | Contact or voltage input |
| Reset | Voltage or contact reset |
Frequently Asked Questions
Can I use this as both timer AND counter simultaneously?
No, H5CC operates as EITHER timer OR counter (selected by DIP switch). For simultaneous timer and counter, use two units or PLC with HMI. Choose function based on primary application need.
What's the maximum count frequency?
30Hz (30 counts/second) for contact input, 1kHz for voltage input. For higher frequency counting (encoders, proximity sensors), use H7CX series (up to 30kHz).
How do I preset a value?
Front-panel keys allow preset value entry. When count/timer reaches preset, output activates. For remote preset, use H7CX series with communication option.
What applications use timer/counter combination?
Production counting with cycle time monitoring, batch control (count batches, time each batch), preventive maintenance (count cycles, alert at maintenance interval), quality control (count good/bad parts).
